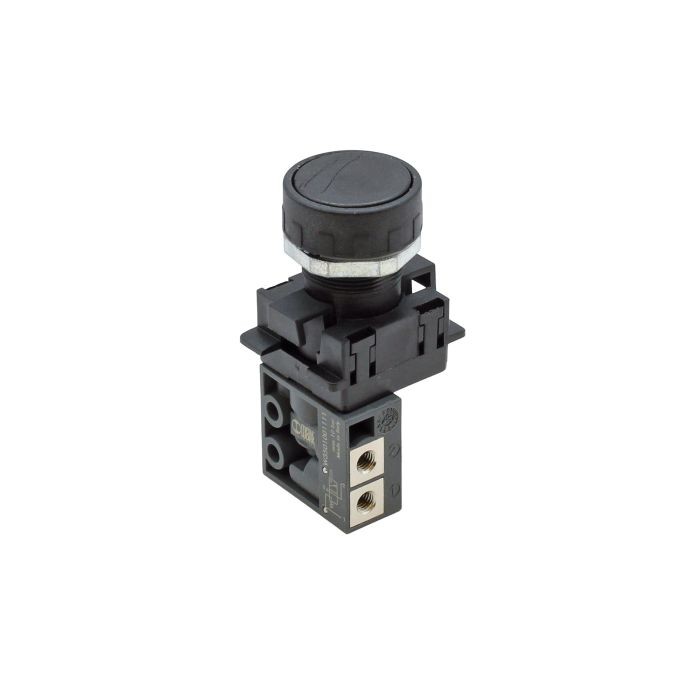

RIEGLER 3/2 Mini Valve, manual, pushbutton, NC, monostable, M5 side-mounted
Part Number: 512.113-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/2-way mini valve made of aluminum, for pneumatics and automation – Type 512.113-1
The RIEGLER 3/2-way mini-valve—manual, push-button, normally closed (NC), monostable, with M5 side connection—controls compressed air flows precisely and reliably. The housing is made of aluminum with NBR seals. The operating pressure ranges from 0.5 bar to 10 bar. The permissible medium temperature ranges from -10 °C to 60 °C. M5 female thread connection on the side—compatible with common industrial standards. The flow rate is 35 Nl/min. Suitable for filtered compressed air with or without oil. If oiled, then continuously. For precise switching operations in continuous operation.
Scope of Application
Typical applications: Pneumatic valves, mini pneumatic valves, 3/2-way mini valves in compressed air and pneumatic systems.
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Reihe VME |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 10 bar |
| Spring | stainless steel |
| Actuating pressure at 6 bar | 8 N |
| Valve body | Aluminum |
| Push button | Nickel-plated brass |
| DN | 2.5 mm |
| Function | 3/2 NC |
| Actuation | monostable |
| Scope of delivery | with press stud |
| Disc | black |

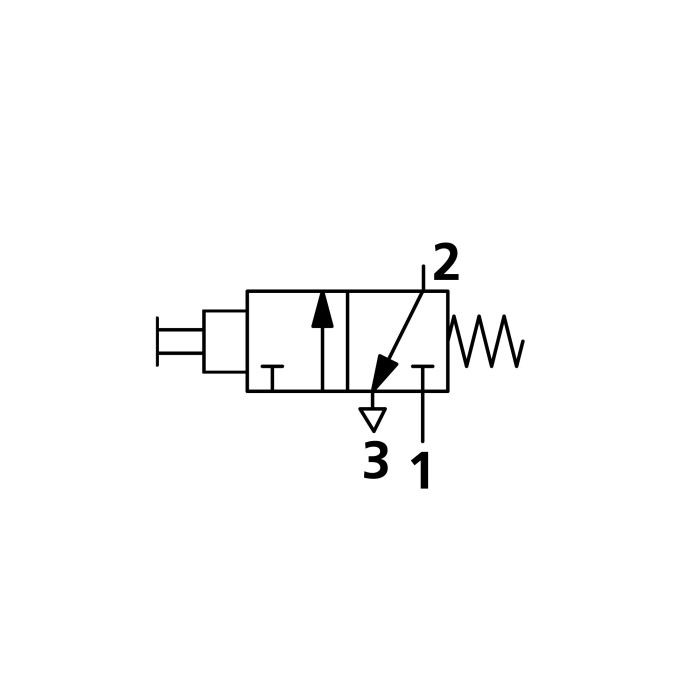

| Symbol | 3 |
| Execution | manually operated |
| Connection | M5 IG lateral |
| Flow 1 | 35 Nl/min |
| Flow 2 | 60 Nl/min |
| Flow rate measurement 1 | Flow rate at 6 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Class name | PLUS |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[106441] RIEGLER Stem actuated valve, 3/2-way, monostable, NC, G 1/8](/web/image/product.template/175498/image_128/%5B106441%5D%20RIEGLER%20Stem%20actuated%20valve%2C%203-2-way%2C%20monostable%2C%20NC%2C%20G%201-8?unique=cca7157)
|
Type number: 515.101 |
52.46 € | |
![[106445] RIEGLER Manual lever, red, monostable](/web/image/product.template/175502/image_128/%5B106445%5D%20RIEGLER%20Manual%20lever%2C%20red%2C%20monostable?unique=b9044f6)
|
Type number: HH-M |
25.10 € | |
![[106446] RIEGLER Short rotating lever, black, 2 positions, monostable](/web/image/product.template/175503/image_128/%5B106446%5D%20RIEGLER%20Short%20rotating%20lever%2C%20black%2C%202%20positions%2C%20monostable?unique=2b151b6)
|
Type number: KDH-2M |
22.25 € | |
![[106447] RIEGLER Short rotating lever, black, 2 positions, bistable](/web/image/product.template/175504/image_128/%5B106447%5D%20RIEGLER%20Short%20rotating%20lever%2C%20black%2C%202%20positions%2C%20bistable?unique=f43ae6c)
|
Type number: KDH-2B |
22.25 € | |
![[106448] RIEGLER Short rotating lever, black, 3 positions, monostable](/web/image/product.template/175505/image_128/%5B106448%5D%20RIEGLER%20Short%20rotating%20lever%2C%20black%2C%203%20positions%2C%20monostable?unique=036dd9c)
|
Type number: KDH-3M |
22.25 € | |
![[106449] RIEGLER Short rotating lever, black, 3 positions, bistable](/web/image/product.template/175506/image_128/%5B106449%5D%20RIEGLER%20Short%20rotating%20lever%2C%20black%2C%203%20positions%2C%20bistable?unique=c377877)
|
Type number: KDH-3B |
22.25 € | |
![[106450] RIEGLER Long rotating lever, black, 2 positions, monostable](/web/image/product.template/175507/image_128/%5B106450%5D%20RIEGLER%20Long%20rotating%20lever%2C%20black%2C%202%20positions%2C%20monostable?unique=e7f9ce7)
|
Type number: LDH-2M |
23.34 € | |

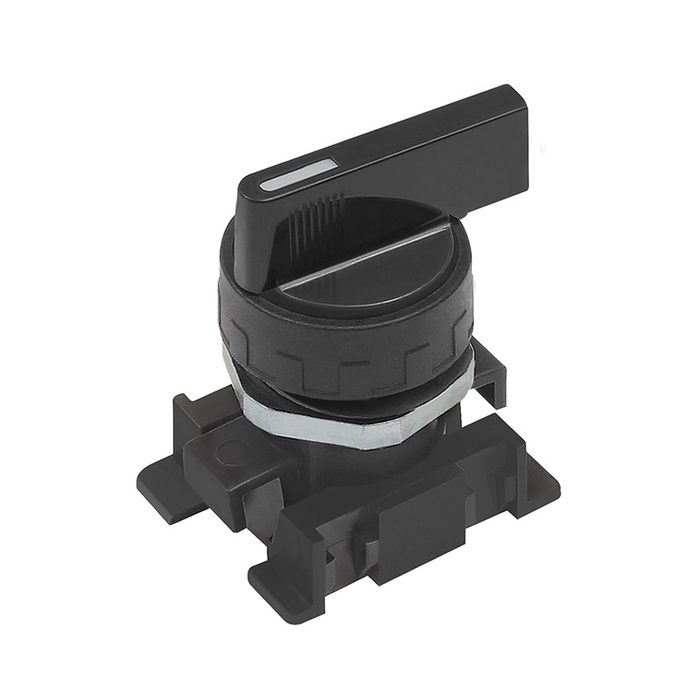

![[106451] RIEGLER Long rotating lever, black, 2 positions, bistable](/web/image/product.template/175508/image_128/%5B106451%5D%20RIEGLER%20Long%20rotating%20lever%2C%20black%2C%202%20positions%2C%20bistable?unique=c8ed4b3)
|
Type number: LDH-2B |
23.34 € | |
![[106452] RIEGLER Long rotating lever, black, 3 positions, monostable](/web/image/product.template/175509/image_128/%5B106452%5D%20RIEGLER%20Long%20rotating%20lever%2C%20black%2C%203%20positions%2C%20monostable?unique=f0ca896)
|
Type number: LDH-3M |
23.34 € | |
![[106453] RIEGLER Long rotating lever, black, 3 positions, bistable](/web/image/product.template/175510/image_128/%5B106453%5D%20RIEGLER%20Long%20rotating%20lever%2C%20black%2C%203%20positions%2C%20bistable?unique=199d662)
|
Type number: LDH-3B |
23.34 € | |

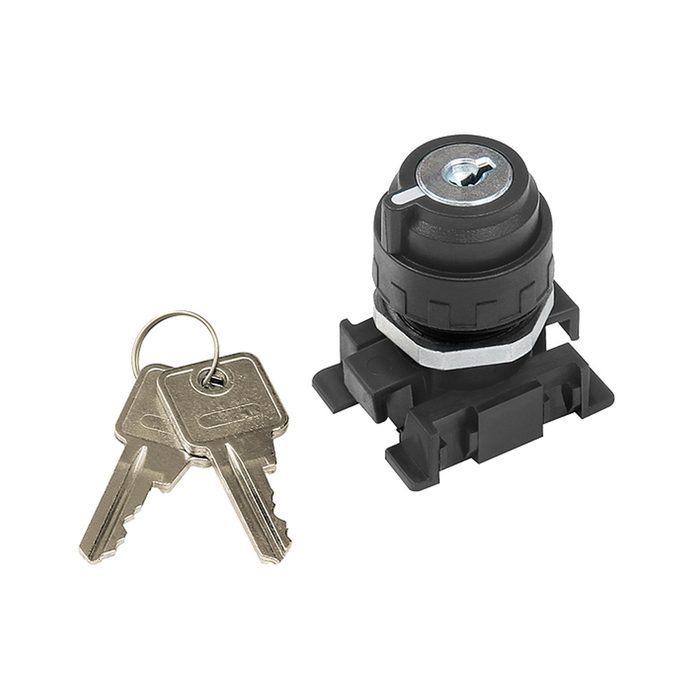

![[106454] RIEGLER Lockable 2 position switch with key removal in all positions](/web/image/product.template/175511/image_128/%5B106454%5D%20RIEGLER%20Lockable%202%20position%20switch%20with%20key%20removal%20in%20all%20positions?unique=8250c33)
|
Type number: V2SS-JS |
36.74 € | |
![[106455] RIEGLER Lockable 2 position switch with key removal in home position](/web/image/product.template/175512/image_128/%5B106455%5D%20RIEGLER%20Lockable%202%20position%20switch%20with%20key%20removal%20in%20home%20position?unique=08053d6)
|
Type number: V2SS-GS |
35.44 € | |
![[106456] RIEGLER Red palm button, monostable](/web/image/product.template/175513/image_128/%5B106456%5D%20RIEGLER%20Red%20palm%20button%2C%20monostable?unique=2974a34)
|
Type number: RPT-M |
17.87 € | |
![[106457] RIEGLER Red palm button with emergency locking](/web/image/product.template/175514/image_128/%5B106457%5D%20RIEGLER%20Red%20palm%20button%20with%20emergency%20locking?unique=8f824a2)
|
Type number: RPT-NR |
28.91 € | |

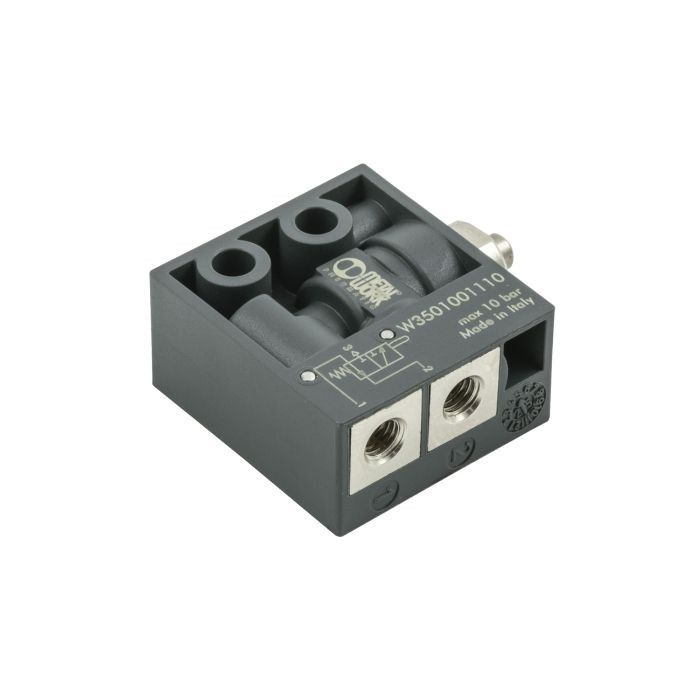

![[153972] RIEGLER 3/2-way miniature valve, mechanical, spool type, normally open (NO), M5 side connection](/web/image/product.template/336879/image_128/%5B153972%5D%20RIEGLER%203-2-way%20miniature%20valve%2C%20mechanical%2C%20spool%20type%2C%20normally%20open%20%28NO%29%2C%20M5%20side%20connection?unique=93e1fe7)
|
Part Number: W3501001110 |
20.78 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

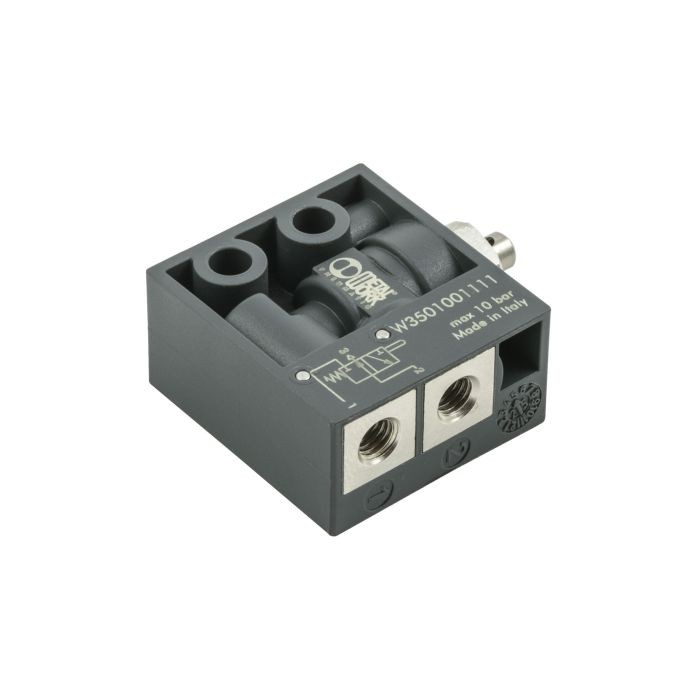

![[153995] RIEGLER 3/2-way miniature valve, mechanical, spool type, NC, M5 side connection](/web/image/product.template/336877/image_128/%5B153995%5D%20RIEGLER%203-2-way%20miniature%20valve%2C%20mechanical%2C%20spool%20type%2C%20NC%2C%20M5%20side%20connection?unique=b6a72c5)
|
