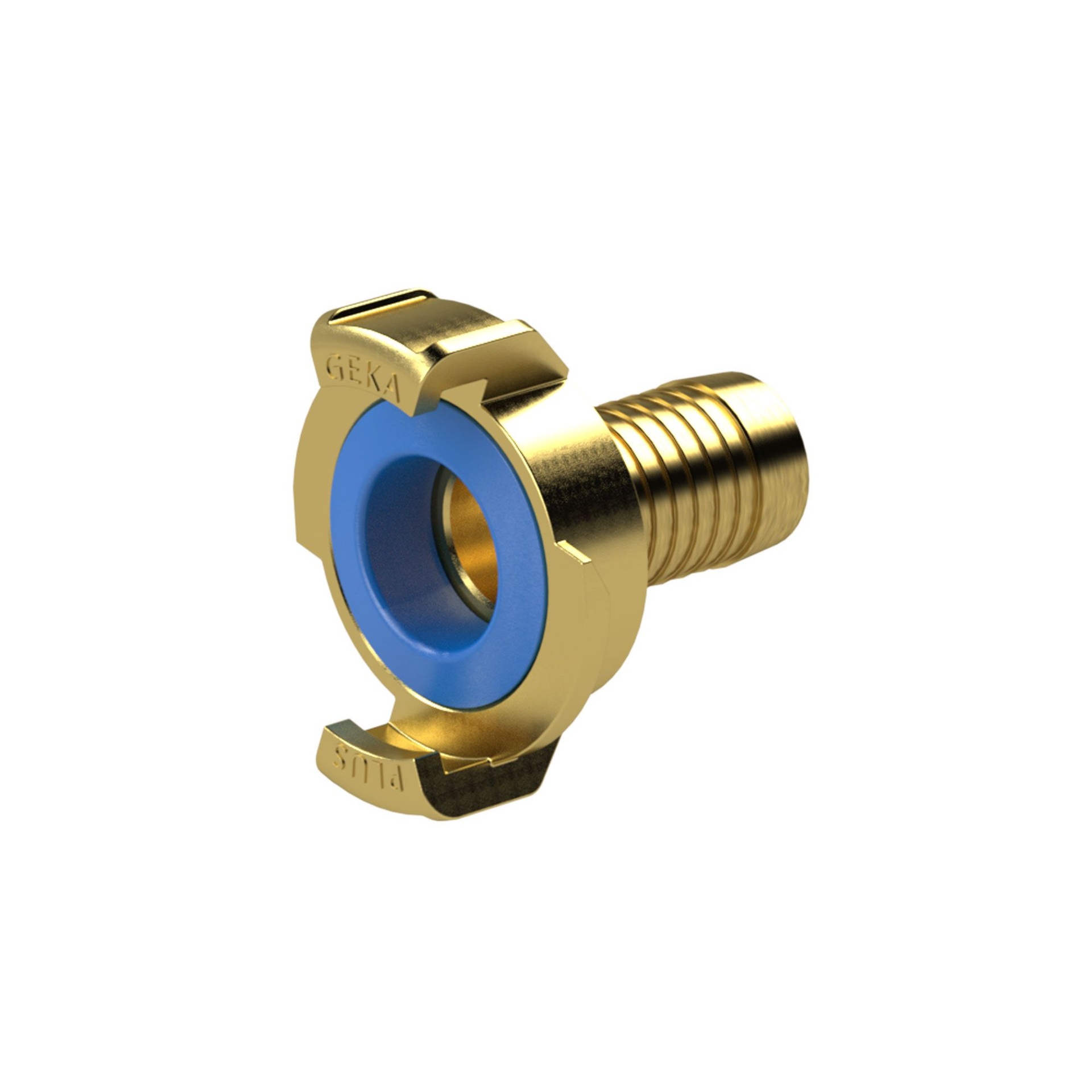

RIEGLER GEKA hose section, rigid, drinking water, lead-free brass, LW 19

https://www.filcom-technik.de/web/image/product.template/307204/image_1920?unique=5bf6fd4

Type number: MB.K 103-KTW

6.91 € 6.91 EUR 6.91 € VAT Included

9.70 € VAT Included


Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

154154

EAN :

4047322822923

Category :

GEKA Couplings & Accessories

Weight :

0.10 kg

RIEGLER GEKA hose section for compressed air supply, max. 40 bar, LW 19 - type MB.K 103-KTW

The RIEGLER GEKA hose section, rigid, drinking water, lead-free brass, LW 19 connects water and compressed air hoses according to the GEKA system. with EPDM seals for drinking water. Designed for a maximum operating pressure of 40 bar. The permissible medium temperature is between -10 °C and 90 °C. Connection thread LW 19 - suitable for common industry standards. Proven system with universal compatibility.

Field of application

Typical areas of application: Garden, construction site, agriculture and industry.

Sealing material EPDM for drinking water
Max. operating pressure 40 bar
Medium temperature min. -10 °C
Medium temperature max. 90 °C
Ambient temperature min. -10 °C
Ambient temperature max. 90 °C
KTW authorisation according to D2 and long-term test result DVGW W270
Connection LW 19
RoHS material information Rohs compliant
REACH Info no SVHC substance contained
Class name FLEX
for inner hose Ø 19

Variants / Alternatives

Product Price
[154153] RIEGLER GEKA hose section, rigid, drinking water, lead-free brass, LW 13

Type number: MB.K 101-KTW

6.53 €

Accessoires and suitable extensions

Product Price

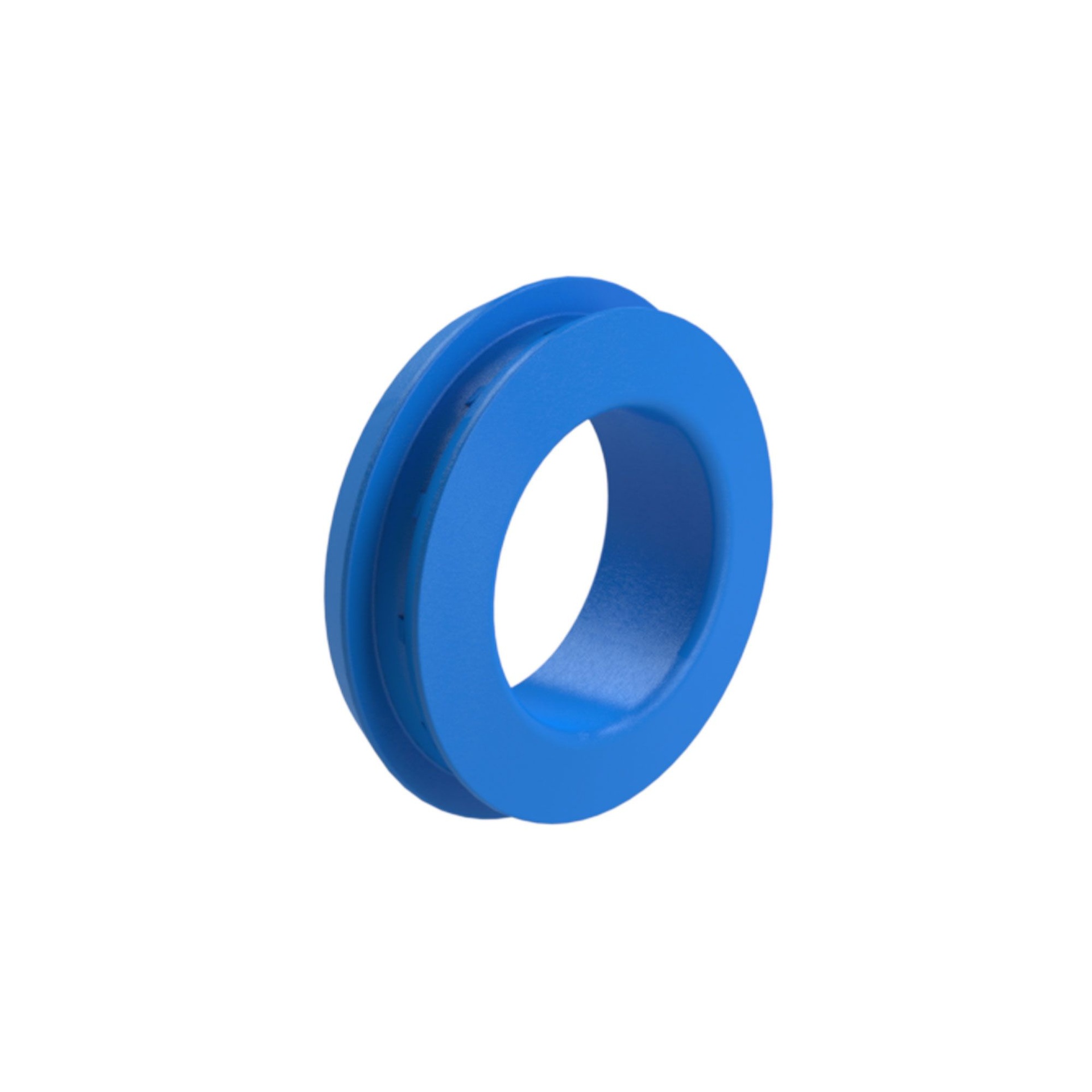

[154170] RIEGLER sealing ring, for MS lead-free, EPDM blue, KTW approval

Type number: MB.D 300

4.37 €
​
