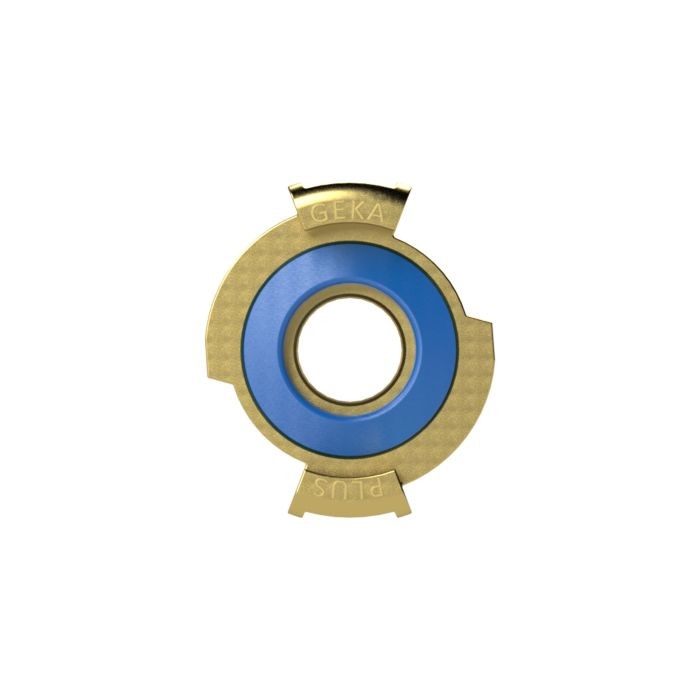

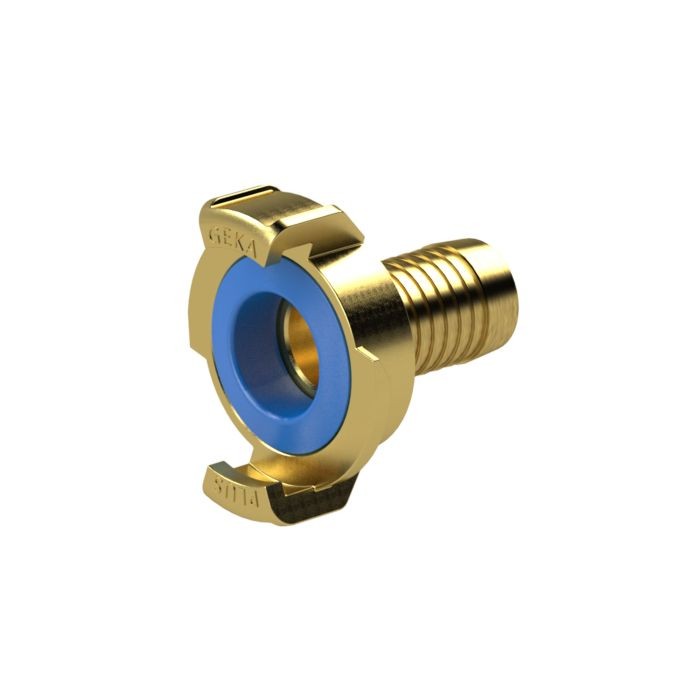

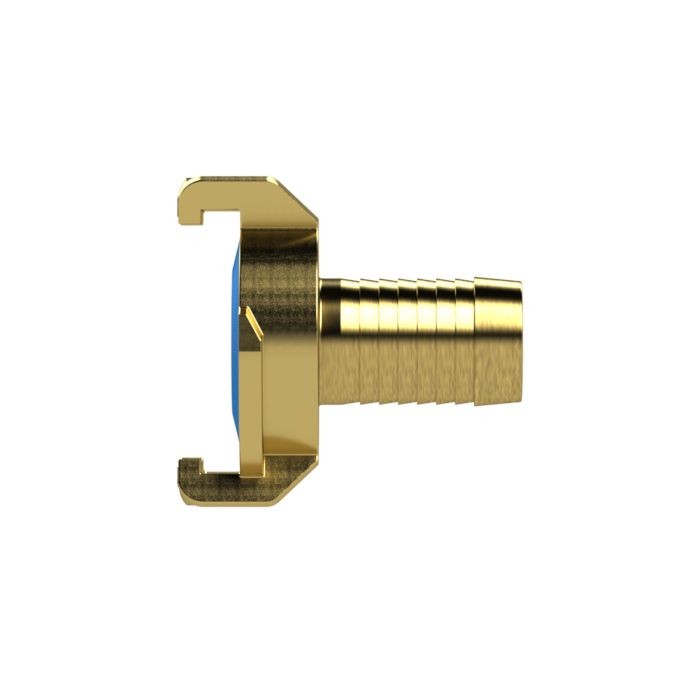

RIEGLER GEKA Hose Fitting, Rigid, Drinking Water, Lead-Free Brass, LW 25
Part Number: MB.K 104-KTW
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER GEKA Hose Fitting (GEKA Coupling) for water and compressed air applications – Type K 104-KTW.MSB
The RIEGLER GEKA hose coupling, rigid, for drinking water, lead-free brass, LW 25, connects hoses quickly, securely, and without tools using the proven claw principle. The seals are made of EPDM for drinking water. The permissible medium temperature ranges from -10 °C to 90 °C. GEKA coupling for drinking water made of lead-free brass (Pb < 0.1%) with KTW approval; permissible medium and ambient temperatures range from -10 °C to +90 °C. The standardized claw profile is compatible with all GEKA couplings.
Scope of Application
Typical applications: GEKA hose fittings, garden hose couplings, and GEKA couplings in compressed air and pneumatic systems.
| Sealing material | EPDM for drinking water |
| Max. operating pressure | 40 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 90 °C |
| KTW authorisation | according to D2 and long-term test result DVGW W270 |
| for inner hose Ø | 25 |
| RoHS material information | Rohs compliant |
| REACH Info | no SVHC substance included |
| Class name | FLEX |
| Lead-free brass (lead content <0.1%) | yes |
