RIEGLER Filling unit »FUTURA«, pneumatically actuated, Size 1, G 1/4
Typennummer: FU 917-137
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Filling unit "FUTURA" pneumatically actuated, BG 1, G 1/4, exhaust air G 1/4, inlet pressure 2.5 - 16 bar, temp. -10 °C to 50 °C
| Inlet pressure min. | 2.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Thread | G 1/4 |
| Flow rate | 1400 l/min |
| BG | 1 |
| A | 104 mm |
| B | 85.1 mm |
| C | 52.1 mm |
| D | 33 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| Exhaust air | G 1/4 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6b, 6b-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[156633] RIEGLER Filling unit »FUTURA«, pneumatically actuated, Size 1, G 3/8](/web/image/product.template/213377/image_128/%5B156633%5D%20RIEGLER%20Filling%20unit%20%C2%BBFUTURA%C2%AB%2C%20pneumatically%20actuated%2C%20Size%201%2C%20G%203-8?unique=79f747d)
|
Typennummer: FU 918-137 |
117.10 € | |
![[156635] RIEGLER Filling unit »FUTURA«, pneumatically actuated, Size 2, G 1/2](/web/image/product.template/213379/image_128/%5B156635%5D%20RIEGLER%20Filling%20unit%20%C2%BBFUTURA%C2%AB%2C%20pneumatically%20actuated%2C%20Size%202%2C%20G%201-2?unique=b5523f1)
|
Typennummer: FU 958-137 |
142.55 € | |

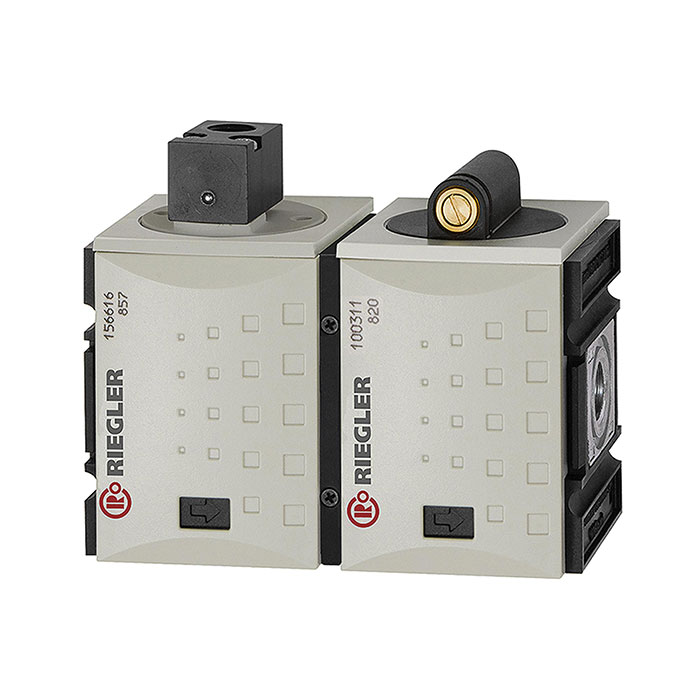

![[156634] RIEGLER Filling unit »FUTURA«, pneumatically actuated, Size 2, G 3/8](/web/image/product.template/213378/image_128/%5B156634%5D%20RIEGLER%20Filling%20unit%20%C2%BBFUTURA%C2%AB%2C%20pneumatically%20actuated%2C%20Size%202%2C%20G%203-8?unique=267d4ee)
|
