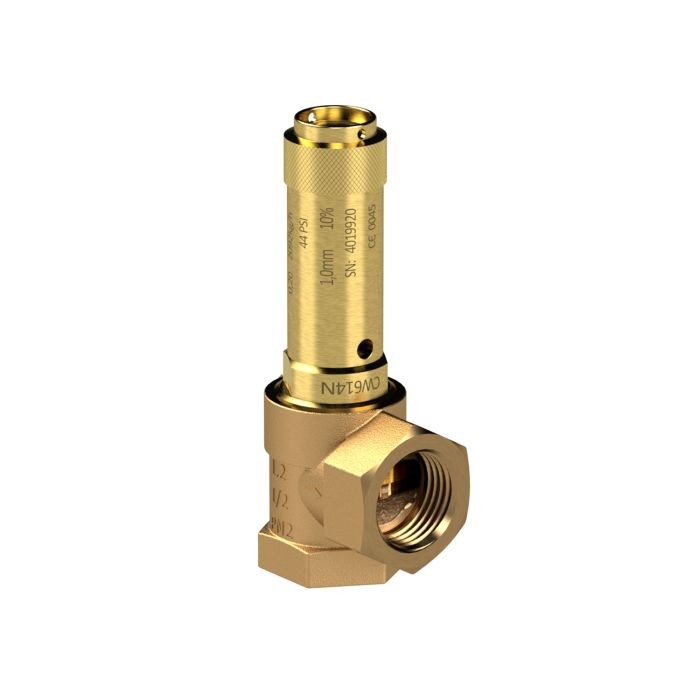

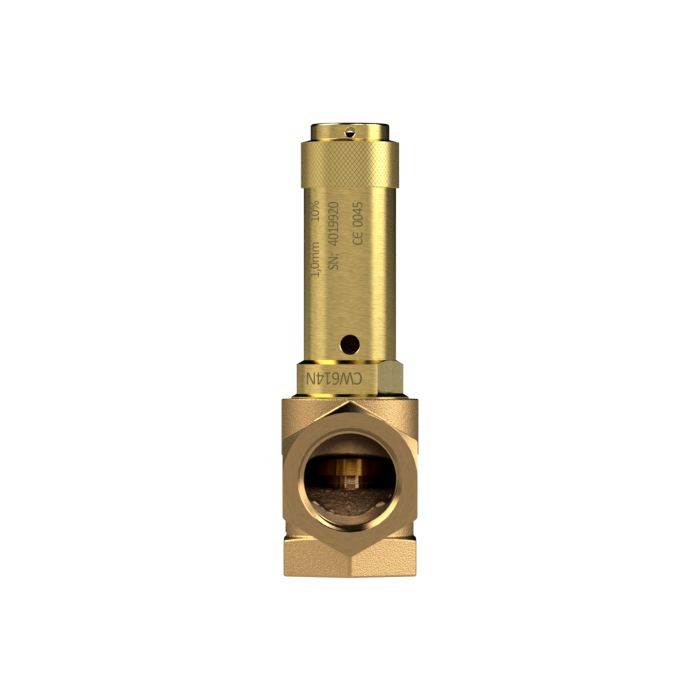

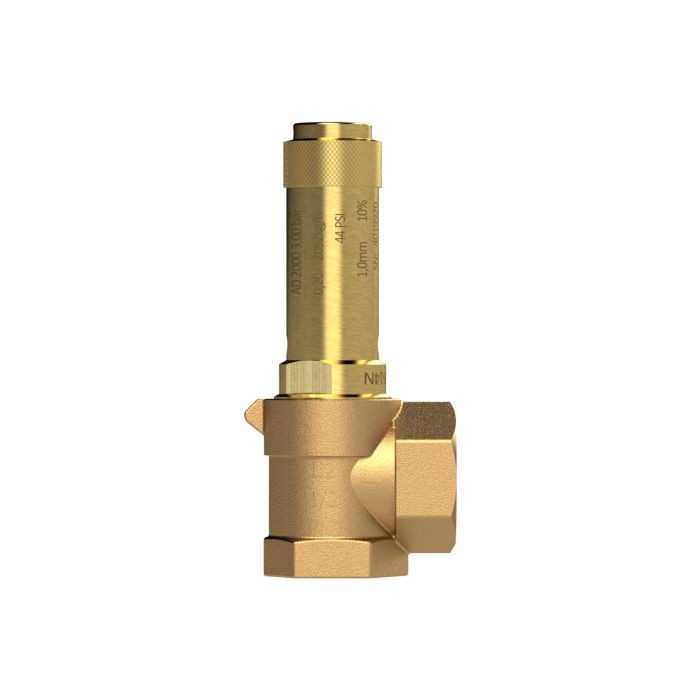

RIEGLER Corner Safety Valve, Liquids, G 3/4, Response Pressure 9 bar
Part Number: 221.04-9.0
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
163412EAN :
4047322876445Category :
Safety Valves & Pressure Relief ValvesWeight :
0.35 kgRIEGLER Corner safety valve (pressure relief valve) made of red brass, for compressed air and industrial systems – Type 221.04-9.0
The RIEGLER corner safety valve for liquids, G 3/4, with a response pressure of 9 bar, reliably protects systems, pipes, and tanks against excessive pressure. The housing is made of red brass. The permissible medium temperature ranges from -10 °C to 110 °C. G 3/4 connection—compatible with common industrial standards. The medium must not vaporize during venting. A diaphragm protects the spring, and a lift mechanism is integrated; the valve is TÜV-certified (SV.749.F). After activation, the valve closes automatically, ensuring consistently safe operation.
Scope of Application
Typical applications: Safety valves, pressure relief valves, and angle valves in compressed air and pneumatic systems.
| Housing | Gunmetal |
| Membrane | NBR |
| Spring cover | Brass |
| Interior parts | Brass |
| Setting range | 2–16 bar (depending on the gasket used) |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 110 °C |
| Spring | Carbon steel |
| Entry and exit | female thread type G according to DIN EN ISO 228-1 |
| Thread | G 3/4 |
| SW | 32 mm |
| Setting range min. | 1 bar |
| Response pressure min. | 9 bar |

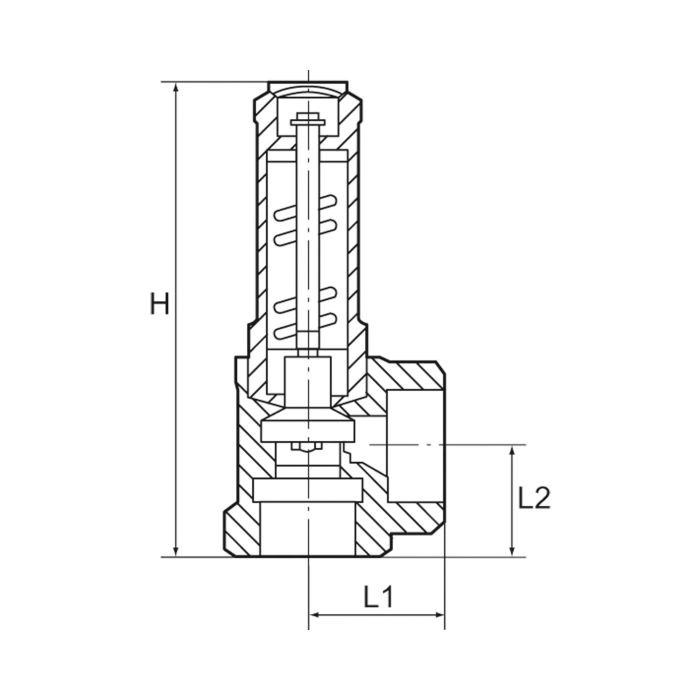

| H | 92 mm |
| L1 | 25 mm |
| L2 | 20 mm |
| Setting range max. | 10 bar |
| Theme shop | SAFETY |
| Class name | FLEX |
