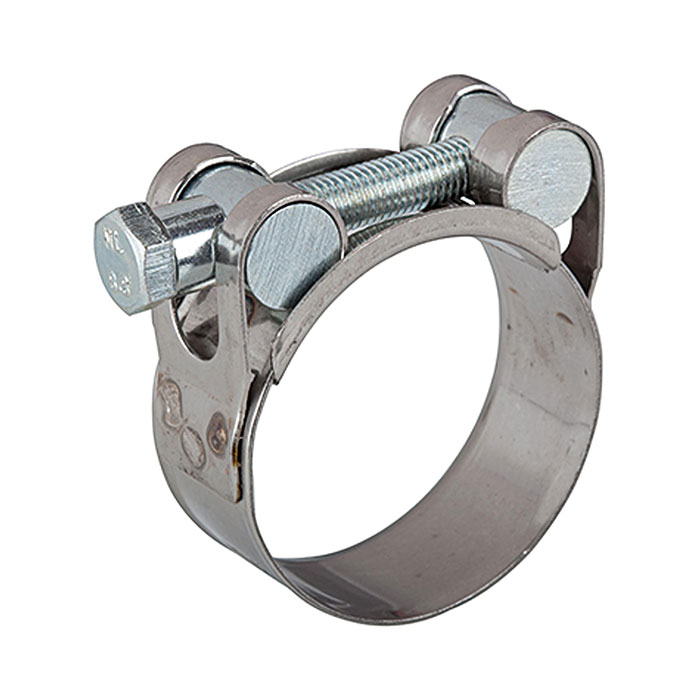

RIEGLER Hinge pin clamp, chrome steel 1.4016 (W2), 74 - 79 mm, 24 mm
Typennummer: GBS79ST
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Hinge pin clamp, chrome steel 1.4016 (W2), clamping range 74 - 79 mm, band width 24 mm, rec. Tightening torque 18.0 Nm
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Exception | no exception |
| Bandwidth | 24 mm |
| Bolt | Galvanized steel |
| CAS No. SVHC 1 | none CAS No. |
| recomm. Tightening torque | 18 Nm |
| Housing | Chrome steel 1.4016 |
| REACH Info | no SVHC substance contained |
| REACH SVHC1 Substance Name | no |
| RoHS Article of the Directive | no entry |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Screw | Galvanized steel |
| Clamping range max. | 79 mm |
| Clamping range min. | 74 mm |
| Steel strap | Chrome steel 1.4016 |
