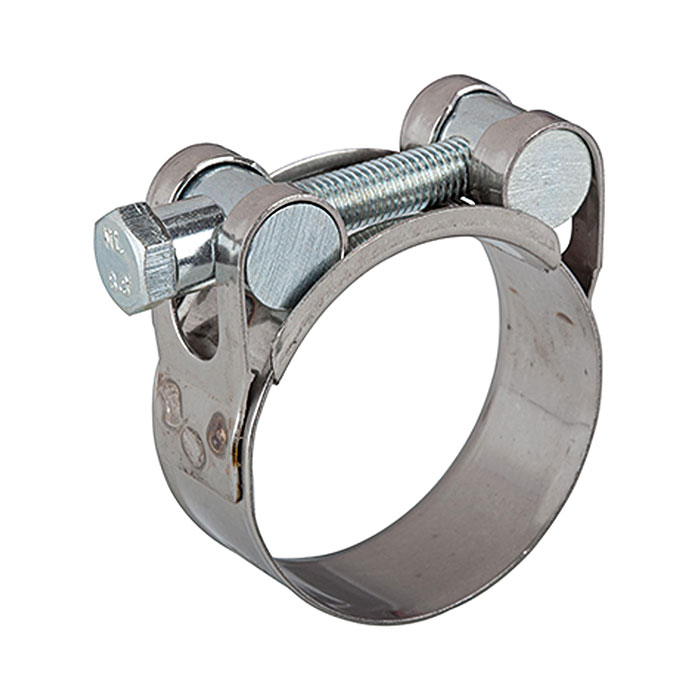

RIEGLER Hinge pin clamp, chrome steel 1.4016 (W2), 98 - 103 mm, 24 mm
Typennummer: GBS103ST
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Hinge pin clamp made of chrome steel 1.4016, for compressed air distribution - type GBS103ST
The RIEGLER hinge bolt clamp, chrome steel 1.4016 (W2), 98 - 103 mm, 24 mm secures hoses reliably on grommets and nozzles. The housing is made of chrome steel 1.4016. Secure fixing prevents slipping under pressure.
Field of application
Typical areas of application: Hose fastening in compressed air and water systems.
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Exception | no exception |
| Bandwidth | 24 mm |
| Bolt | Galvanized steel |
| CAS No. SVHC 1 | none CAS No. |
| recomm. Tightening torque | 18 Nm |
| Housing | Chrome steel 1.4016 |
| REACH Info | no SVHC substance contained |
| REACH SVHC1 Substance Name | no |
| RoHS Article of the Directive | no entry |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Screw | Galvanized steel |
| Clamping range max. | 103 mm |
| Clamping range min. | 98 mm |
| Steel strap | Chrome steel 1.4016 |
