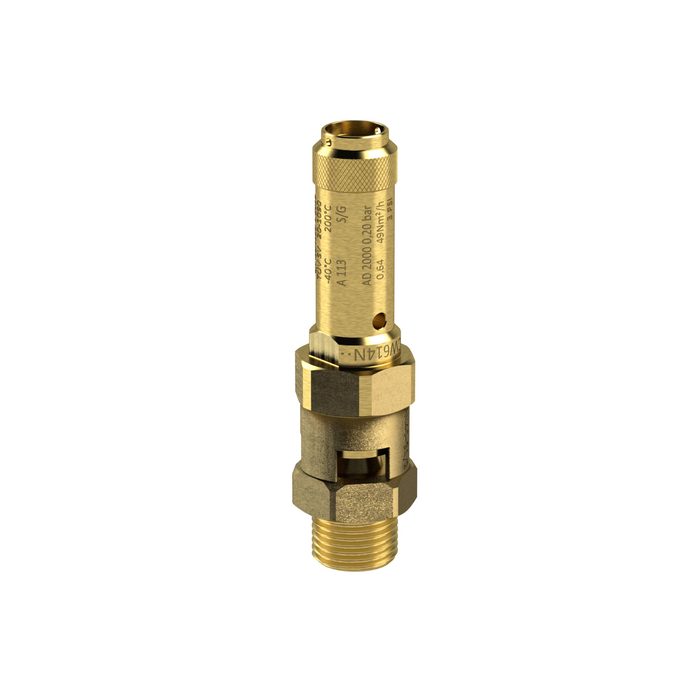

RIEGLER Safety valve, brass, G 3/4, set pressure 15.5 bar
Typennummer: 229.02-15,5
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
206157EAN :
4047322720229Category :
Safety valves & pressure relief valvesWeight :
0.01 kgSafety valve, high-performance version, brass, operating temp. -40 °C to 200 °C, G 3/4, SW 32, set pressure 15.5 bar
| Housing | Brass |
| Sealing material | FPM |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 26 bar |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 200 °C |
| Thread | G 3/4 |
| SW | 32 mm |
| Response pressure min. | 15.5 bar |
| A | 16 mm |
| H | 110 mm |
| Pressure spring | Carbon steel |
| do | 15 mm |
| Theme shop | SAFETY |
| Class name | MAX |
