BEKO Active Oil-water separator QWIK-PURE 60 (with 3 meter power cable)
BEKO QWIK-PURE 60 - Active condensate treatment for large volumes of compressed air up to 60 m³/min. Maximum efficiency thanks to a four-cartridge system and innovative compressed air support with maximum installation flexibility.
- Performance: Designed for compressors up to 60 m³/min.
- Connection: Includes 3-meter power cable for direct commissioning.
- Technology: Active treatment via 4 cartridges prevents clogging.
- Hygiene: Hermetically sealed cartridges for clean replacement.
- Approval: Legally compliant thanks to DIBt certification (max. 10 mg/l).
For over thirty years, BEKO TECHNOLOGIES has been synonymous with powerful compressed air and compressed gas technology, tested worldwide. We represent quality "made in Germany" and values that are lived by BEKO TECHNOLOGIES
BEKO QWIK-PURE 60: High performance with active condensate treatment
The BEKO oil-water separator model QWIK-PURE 60 with 3-meter power cable (item no. 4055894) is the professional solution for industrial compressed air stations. While conventional separators work purely passively, the QWIK-PURE 60 uses light blasts of compressed air to actively guide the condensate through the four filter cartridges. The factory-fitted 3-meter power cable ensures uncomplicated commissioning and maximum flexibility when setting up in your station.
With a capacity of 60 m³/min, this system offers maximum safety and efficiency for demanding environments.
Your advantages with the active QWIK-PURE 60:
- Active mode of operation: The condensate is pressed through the filters in a controlled manner. This effectively suppresses the formation of impermeable boundary layers and bacterial cultures, even at very high throughput rates.
- Hygienic & safe: The hermetically sealed cartridges protect personnel from contamination. Free oils are trapped directly inside, making maintenance clean and safe.
- Four-cartridge system: The load is distributed evenly over four units, which maximizes the service life of the filters and guarantees constant cleaning performance.
- Flexible connection: The 3-meter power cable allows a simple electrical connection without the need for an external controller for basic operation.
- Ergonomic handling: Despite full saturation, each cartridge weighs a maximum of 25 kg. The inlet tube serves as a sturdy handle for convenient replacement of the individual components.
- Certified legal certainty: The DIBt approval confirms reliable compliance with the legal discharge values (max. 10 mg/l residual oil content).
Maintenance & service for QWIK-PURE 60:
- No pre-soaking: The unit cartridges are ready for immediate use - time-consuming pre-soaking is completely eliminated compared to passive systems.
- Maintenance without downtime: Inflowing condensate is buffered in the pressure relief chamber during the cartridge change so that your production continues without interruption.
- Clean change: The integrated bottom valve closes automatically when removed. The cartridges are securely sealed for removal with the blind plugs supplied.
- Sustainability: The filter material of all four cartridges is fully utilized thanks to the active flow. This results in optimum service life and an improved environmental footprint.
| Max. Condensate flow rate (l/h) | 76 |
| Min/max. temperature (°C) | +5 ... +50 |
| Relative humidity of the environment | ≤10 ... 80 %, without condensation |
| Weight (kg) | 45 |
| Min. / max. operating pressure (bar) | 3 ... 15 |
| Cleanliness class, compressed air | 2:4:2 |
| Operating voltage | 90 ... 264 VAC / 24 VDC |
| Frequency range (Hz) | 50 ... 60 |
| Max. Compressor capacity (m³/min) | 61,7 |
| Operating mode | active |
| Condensate inlet connection | 3 x G1/2", external | 1 x G1", external | Hose nozzle |
| Condensate drain connection | 1 x 23 mm (0.91 in), external, hose nozzle |
| Media | Compressor condensate, containing oil |
| Max. Oil concentration at | 10 |
| Max. Operating pressure at condensate inlet | 16 |
| Required number of replacement cartridges | 4 |
| Compressed air connection | 8 mm (0.31 in), external, hose nozzle |
| Power consumption (VA) | 28 |
| Protection class (IP) | 54 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

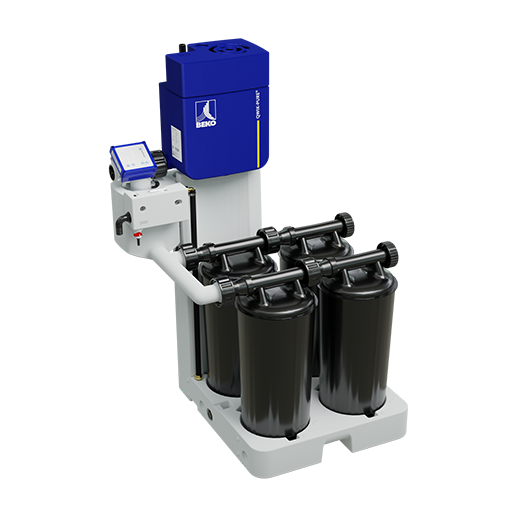

![[4058159] BEKO Active Oil-water separator QWIK-PURE 60 (with M12 plug)](/web/image/product.template/236904/image_128/%5B4058159%5D%20BEKO%20Active%20Oil-water%20separator%20QWIK-PURE%2060%20%28with%20M12%20plug%29?unique=aaba48a)
|
