BEKO Active Oil-water separator QWIK-PURE 60 (with M12 plug)
BEKO QWIK-PURE 60 (M12) - Active condensate treatment for industrial capacities up to 60 m³/min. Maximum reliability thanks to a four-cartridge system and precise, needs-based maintenance planning via external control.
- Performance: Designed for compressors up to 60 m³/min.
- Intelligence: Integrated M12 connector for FRC monitoring.
- Technology: Active flow via 4 cartridges to prevent clogging.
- Hygiene: Hermetically sealed cartridges for clean replacement.
- Legally safe: DIBt-certified for safe discharge (max. 10 mg/l).
For over thirty years, BEKO TECHNOLOGIES has been synonymous with powerful compressed air and compressed gas technology, tested worldwide. We represent quality "made in Germany" and values that are lived by BEKO TECHNOLOGIES
BEKO QWIK-PURE 60: High performance with M12 connector
The BEKO oil-water separator model QWIK-PURE 60 with M12 connector is the professional solution for large compressed air stations. While conventional separators work purely passively, the QWIK-PURE 60 uses light blasts of compressed air to actively guide the condensate through the four filter cartridges. The integrated M12 connector enables communication with an FRC controller, allowing the saturation level of the filters to be precisely monitored at all times.
This system is the ideal choice for industrial applications that place the highest demands on process reliability and predictive maintenance.
Your advantages with the active QWIK-PURE 60:
- Active mode of operation: The condensate is pressed through the filters in a controlled manner. This effectively suppresses the formation of impermeable boundary layers and bacterial cultures, even at very high flow rates.
- Intelligent connection: The system status is transmitted to the control unit via the M12 connector. This enables needs-based maintenance and prevents unnecessary filter changes.
- Hygienic & safe: The hermetically sealed cartridges protect personnel from direct contact with harmful substances. Free oils are safely bound inside.
- Four-cartridge system: The load distribution over four units maximizes the filter service life and ensures a constantly low residual oil concentration in the wastewater.
- Future-proof: If your station continues to grow, the system can be expanded modularly by plugging it in at the side up to 90 m³/min.
- Certified legal certainty: The DIBt approval guarantees reliable compliance with the legal discharge values (max. 10 mg/l residual oil content).
Maintenance & service for QWIK-PURE 60:
- No pre-soaking: The standard cartridges are ready for immediate use - the time-consuming pre-soaking process is completely eliminated compared to passive systems.
- Maintenance without downtime: Inflowing condensate is buffered in the pressure relief chamber during the changeover so that your production continues without interruption.
- Clean change: The integrated bottom valve closes automatically when removed. The cartridge is securely sealed for removal with the blind plugs supplied.
- Ergonomic handling: Each saturated cartridge weighs a maximum of 25 kg and can be easily replaced using the inlet tube as a sturdy handle.
| Max. Condensate flow rate (l/h) | 76 |
| Min/max. temperature (°C) | +5 ... +50 |
| Relative humidity of the environment | ≤10 ... 80 %, without condensation |
| Weight (kg) | 45 |
| Min. / max. operating pressure (bar) | 3 ... 15 |
| Cleanliness class, compressed air | 2:4:2 |
| Operating voltage | 90 ... 264 VAC / 24 VDC |
| Frequency range (Hz) | 50 ... 60 |
| Max. Compressor capacity (m³/min) | 61,7 |
| Operating mode | active |
| Condensate inlet connection | 3 x G1/2", external | 1 x G1", external | Hose nozzle |
| Condensate drain connection | 1 x 23 mm (0.91 in), external, hose nozzle |
| Media | Compressor condensate, containing oil |
| Max. Oil concentration at | 10 |
| Max. Operating pressure at condensate inlet | 16 |
| Required number of replacement cartridges | 4 |
| Compressed air connection | 8 mm (0.31 in), external, hose nozzle |
| Power consumption (VA) | 28 |
| Protection class (IP) | 54 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

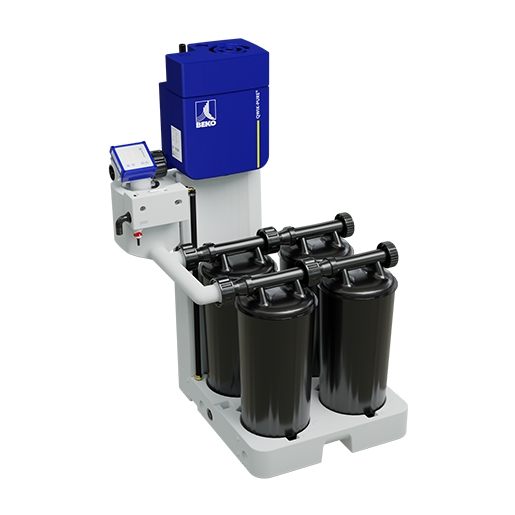

![[4055894] BEKO Active Oil-water separator QWIK-PURE 60 (with 3 meter power cable)](/web/image/product.template/236903/image_128/%5B4055894%5D%20BEKO%20Active%20Oil-water%20separator%20QWIK-PURE%2060%20%28with%203%20meter%20power%20cable%29?unique=6c423eb)
|
