BEKO Active Oil-water separator QWIK-PURE 15 (with 3 meter power cable)
BEKO QWIK-PURE 15 (3m cable) - Active condensate treatment up to 15 m³/min. Maximum process reliability thanks to innovative compressed air support and simple electrical installation directly at the socket.
- Performance: Designed for compressors up to 15 m³/min.
- Connection: Includes 3-meter power cable for flexible installation.
- Technology: Active treatment prevents filter blockage.
- Future-proof: Modularly expandable to 30, 60 or 90 m³/min.
- Certified: DIBt-approved for legally compliant discharge.
For over thirty years, BEKO TECHNOLOGIES has been synonymous with powerful compressed air and compressed gas technology, tested worldwide. We represent quality "made in Germany" and values that are lived by BEKO TECHNOLOGIES
BEKO QWIK-PURE 15: Active condensate treatment with maximum flexibility
The BEKO oil-water separator model QWIK-PURE 15 with 3-meter power cable marks the start of a new generation of treatment technology. While conventional separators work purely passively, the QWIK-PURE 15 uses light blasts of compressed air to actively guide the condensate through the filter media. The factory-fitted 3-metre power cable ensures uncomplicated commissioning and allows flexible positioning in your compressed air station.
The modular design is particularly noteworthy: If your compressed air requirements grow, the system can be expanded to a capacity of 90 m³/min by simply attaching additional units.
Your advantages with the active QWIK-PURE 15:
- Active mode of operation: The condensate is pressed through the filters in a controlled manner. This effectively suppresses the formation of impermeable boundary layers and bacterial cultures.
- Hygienic & safe: The hermetically sealed cartridge protects personnel from contamination. Free oils are bound directly inside, making open oil collection containers superfluous.
- Flexible connection: The 3-meter power cable allows easy electrical connection to conventional power sources without the need for an external controller.
- Ergonomic handling: Despite being fully saturated, the cartridge weighs a maximum of 25 kg. The inlet tube serves as a sturdy handle for quick and easy replacement.
- Certified legal certainty: The DIBt approval confirms reliable compliance with the legal discharge values (max. 10 mg/l residual oil content).
Maintenance & service for QWIK-PURE 15:
- No pre-soaking: The standard cartridges are ready for immediate use - the time-consuming pre-soaking process is completely eliminated compared to passive systems.
- Maintenance without downtime: Inflowing condensate is buffered in the pressure relief chamber during the cartridge change so that your production continues without interruption.
- Clean change: The integrated bottom valve closes automatically when removed. The cartridge is securely sealed for removal with the blind plugs supplied.
- Sustainability: The filter material is fully utilized thanks to the active flow. This leads to longer service lives with an optimized environmental balance.
| Max. Compressor capacity (m³/min) | 15,4 |
| Operating mode | active |
| Max. Condensate flow rate (l/h) | 19 |
| Condensate inlet connection | 3 x G1/2", external | 1 x G1", external | Hose nozzle |
| Condensate drain connection | 1 x 23 mm (0.91 in), external, hose nozzle |
| Media | Compressor condensate, containing oil |
| Max. Oil concentration at | 10 |
| Max. Operating pressure at condensate inlet | 16 |
| Min/max. temperature (°C) | +5 ... +50 |
| Relative humidity of the environment | ≤10 ... 80 %, without condensation |
| Weight (kg) | 24 |
| Required number of replacement cartridges | 1 |
| Min. / max. operating pressure (bar) | 3 ... 15 |
| Cleanliness class, compressed air | 2:4:2 |
| Compressed air connection | 8 mm (0.31 in), external, hose nozzle |
| Operating voltage | 90 ... 264 VAC / 24 VDC |
| Frequency range (Hz) | 50 ... 60 |
| Power consumption (VA) | 28 |
| Protection class (IP) | 54 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

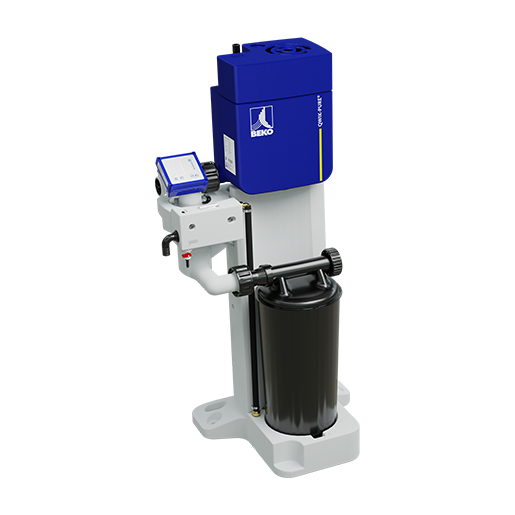

![[4058160] BEKO Active Oil-water separator QWIK-PURE 15 (with M12 plug)](/web/image/product.template/236899/image_128/%5B4058160%5D%20BEKO%20Active%20Oil-water%20separator%20QWIK-PURE%2015%20%28with%20M12%20plug%29?unique=e59525d)
|
BEKO QWIK-PURE 15 - The world's first active oil-water separator for maximum process reliability up to 15.4 m³/min. The innovative compressed air support and modular design redefine hygiene and efficiency in condensate treatment.
|
2,257.67 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

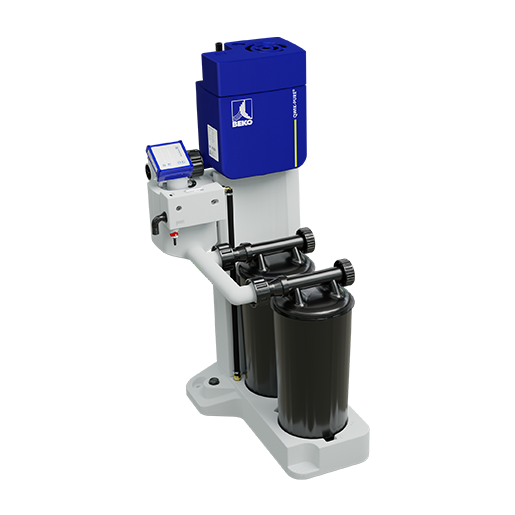

![[4058554] BEKO Upgrade Kit QWIK-PURE® 15 to 30](/web/image/product.template/237457/image_128/%5B4058554%5D%20BEKO%20Upgrade%20Kit%20QWIK-PURE%C2%AE%2015%20to%2030?unique=1b084b7)
|
