BEKO Active Oil-water separator QWIK-PURE 15 (with M12 plug)
BEKO QWIK-PURE 15 - The world's first active oil-water separator for maximum process reliability up to 15.4 m³/min. The innovative compressed air support and modular design redefine hygiene and efficiency in condensate treatment.
- Performance: Max. Compressor output up to 15.4 m³/min (active operation).
- Flow rate: Max. Condensate flow rate of 19 l/h.
- Expandable: Easy upgrade to the 30 m³/min system possible.
- Hygiene: Hermetically sealed system without contact with harmful substances.
- Handling: Tool-free, drip-free change without pre-washing.
For over thirty years, BEKO TECHNOLOGIES has been synonymous with powerful compressed air and compressed gas technology, tested worldwide. We represent quality "made in Germany" and values that are lived by BEKO TECHNOLOGIES
BEKO QWIK-PURE 15: The revolution in active condensate treatment
The BEKO oil-water separator model QWIK-PURE 15 with M12 connector is the pioneer of a new generation. While conventional separators work purely passively, the QWIK-PURE 15 uses light blasts of compressed air to actively guide the condensate through the filter media. This prevents the filter from drying out and guarantees a consistently high cleaning performance directly at the point of origin.
The future-proof feature is unique: if your compressed air requirements grow, the system does not need to be completely replaced. The QWIK-PURE 15 can be modularly expanded to the QWIK-PURE 30, doubling its capacity.
Your advantages with the active QWIK-PURE 15:
- Active mode of operation: The condensate is pressed through the filters in a controlled manner. This effectively suppresses the formation of impermeable boundary layers and bacterial cultures.
- Hygienic & safe: The hermetically sealed cartridge protects service personnel from contamination. Free oils are bound directly in the cartridge.
- Modular extension (QWIK-PURE 15 to 30): The capacity can be increased to 30 m³/min with an extension package (enlarged measuring chamber, larger base plate and second cartridge).
- Intelligent monitoring: The integrated M12 connector enables connection to the intelligent FRC controller, which calculates the remaining capacity and makes it possible to plan service calls.
- Ergonomic handling: Despite being fully saturated, the cartridge weighs maximum 25 kg. The inlet tube serves as a sturdy handle for effortless replacement.
- Certified legal certainty: The DIBt approval confirms reliable compliance with the legal discharge values (max. 10 mg/l residual oil content).
Maintenance & service for QWIK-PURE 15:
- No pre-soaking: The standard cartridges are ready for immediate use - time-consuming pre-soaking is completely eliminated.
- Maintenance without downtime: Inflowing condensate is buffered in the pressure relief chamber during the cartridge change.
- Clean change: The integrated bottom valve closes automatically when removed. The cartridge is securely sealed for removal with the blind plugs supplied.
- Sustainability: The filter material is fully utilized thanks to the active flow. This leads to longer service lives and an improved environmental footprint.
| Max. Condensate flow rate (l/h) | 19 |
| Min/max. temperature (°C) | +5 ... +50 |
| Relative humidity of the environment | ≤10 ... 80 %, without condensation |
| Weight (kg) | 24 |
| Min. / max. operating pressure (bar) | 3 ... 15 |
| Cleanliness class, compressed air | 2:4:2 |
| Operating voltage | 90 ... 264 VAC / 24 VDC |
| Frequency range (Hz) | 50 ... 60 |
| Max. Compressor capacity (m³/min) | 15,4 |
| Operating mode | active |
| Condensate inlet connection | 3 x G1/2", external | 1 x G1", external | Hose nozzle |
| Condensate drain connection | 1 x 23 mm (0.91 in), external, hose nozzle |
| Media | Compressor condensate, containing oil |
| Max. Oil concentration at | 10 |
| Max. Operating pressure at condensate inlet | 16 |
| Required number of replacement cartridges | 1 |
| Compressed air connection | 8 mm (0.31 in), external, hose nozzle |
| Power consumption (VA) | 28 |
| Protection class (IP) | 54 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

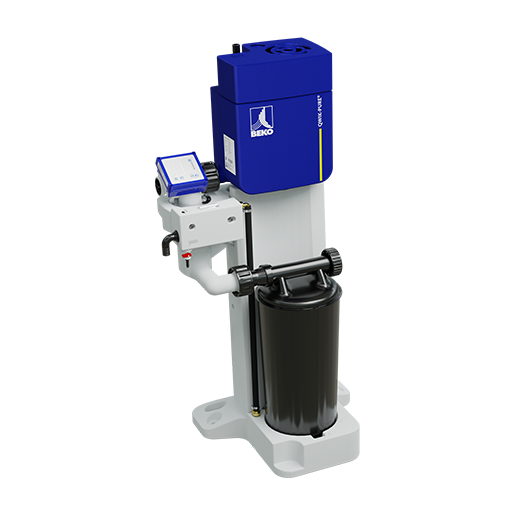

![[4055897] BEKO Active Oil-water separator QWIK-PURE 15 (with 3 meter power cable)](/web/image/product.template/236900/image_128/%5B4055897%5D%20BEKO%20Active%20Oil-water%20separator%20QWIK-PURE%2015%20%28with%203%20meter%20power%20cable%29?unique=a175579)
|
BEKO QWIK-PURE 15 (3m cable) - Active condensate treatment up to 15 m³/min. Maximum process reliability thanks to innovative compressed air support and simple electrical installation directly at the socket.
|
2,282.30 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

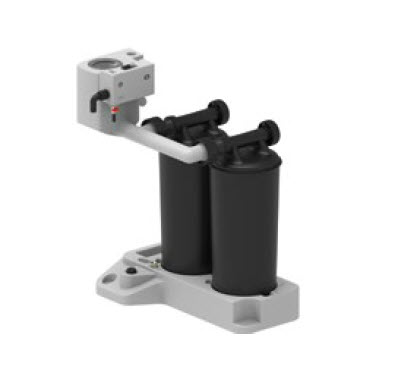

![[4058554] BEKO Upgrade Kit QWIK-PURE® 15 to 30](/web/image/product.template/237457/image_128/%5B4058554%5D%20BEKO%20Upgrade%20Kit%20QWIK-PURE%C2%AE%2015%20to%2030?unique=1b084b7)
|
Doubling capacity made easy Expand your existing QWIK-PURE 15 modularly to a powerful QWIK-PURE 30. With this original expansion package, you can increase the capacity of your condensate treatment system to up to 30 m³/min - sustainable, cost-efficient and future-proof.
|
1,576.75 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

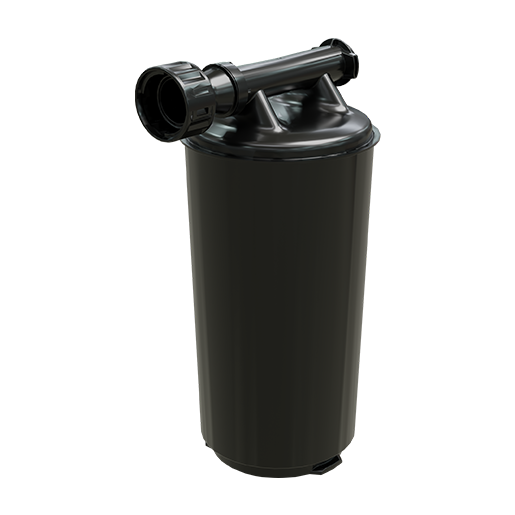

![[4051809] BEKO QWIK-PURE cartridge](/web/image/product.template/236908/image_128/%5B4051809%5D%20BEKO%20QWIK-PURE%20cartridge?unique=a2bcb1b)
|
