Transair Legris Stopcock with venting Ø 25
Transair®, a division of Parker, specializes in the development and manufacturing of compressed air supply solutions tailored to the demanding needs of industrial applications
Lockable ball valve with vent for compressed air lines Ø 25
Lockable ball valve for Transair Compressed air lines Ø 25 with integrated venting. Secures line sections during maintenance work and prevents unauthorized opening.
Technical data
- Max. Operating pressure: 16 bar (-20°C to +45°C), 13 bar (-20°C to +60°C)
- Connection technology: Quick connector with toothed washer
- Operating temperature: -20°C to 85°C
- Suitable media: Compressed air, vacuum, nitrogen, inert gases
Application areas
From the compressor room to the workplace: Transair shut-off valves secure line sections in the automotive, food, chemical and metal industries. Also suitable for industrial breathing air applications in accordance with EN 12021 and inert gas distribution in the cement industry.
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

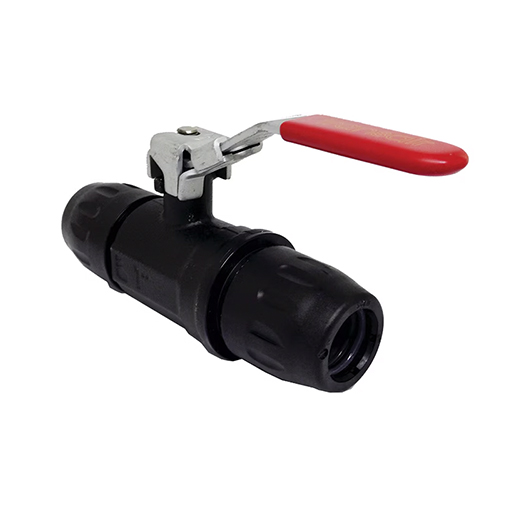

![[4092 40 00] Transair Legris Stopcock with venting Ø 40](/web/image/product.template/150484/image_128/%5B4092%2040%2000%5D%20Transair%20Legris%20Stopcock%20with%20venting%20%C3%98%2040?unique=34d466e)
|
169.33 € | ||
![[4092 63 00] Transair Legris Stopcock with venting Ø 63](/web/image/product.template/150487/image_128/%5B4092%2063%2000%5D%20Transair%20Legris%20Stopcock%20with%20venting%20%C3%98%2063?unique=34d466e)
|
311.60 € | ||
