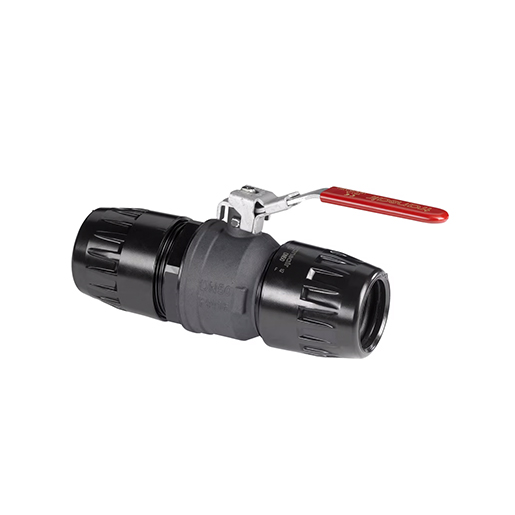

Transair Legris Stopcock with venting Ø 63
Transair®, a division of Parker, specializes in the development and manufacturing of compressed air supply solutions tailored to the demanding needs of industrial applications
Main line stopcock Ø 63 with safety interlock
Lockable ball valve for Transair Main lines Ø 63. Secures large pipe sections in production halls, cement works and energy plants - with venting function for unpressurized work.
Technical data
- Max. Operating pressure: 13 bar (-20°C to +60°C), 7 bar (-20°C to +85°C)
- Connection technology: SnapRing quick connector
- Operating temperature: -20°C to 85°C
- Suitable media: Compressed air, vacuum, nitrogen, inert gases
Application areas
From the compressor room to the workplace: Transair shut-off valves secure line sections in the automotive, food, chemical and metal industries. Also suitable for industrial breathing air applications in accordance with EN 12021 and inert gas distribution in the cement industry.
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[4092 25 00] Transair Legris Stopcock with venting Ø 25](/web/image/product.template/150483/image_128/%5B4092%2025%2000%5D%20Transair%20Legris%20Stopcock%20with%20venting%20%C3%98%2025?unique=34d466e)
|
124.94 € | ||

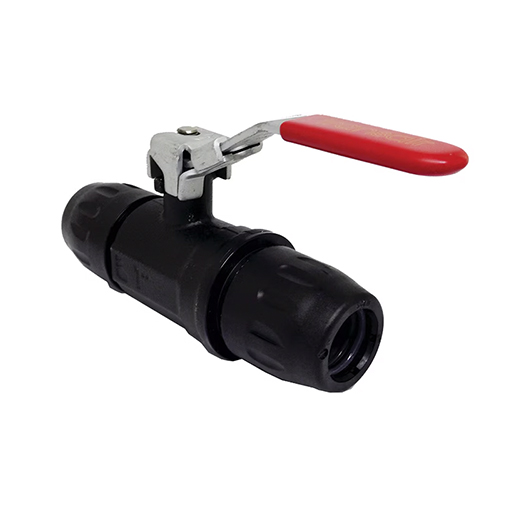

![[4092 40 00] Transair Legris Stopcock with venting Ø 40](/web/image/product.template/150484/image_128/%5B4092%2040%2000%5D%20Transair%20Legris%20Stopcock%20with%20venting%20%C3%98%2040?unique=34d466e)
|
169.33 € | ||
