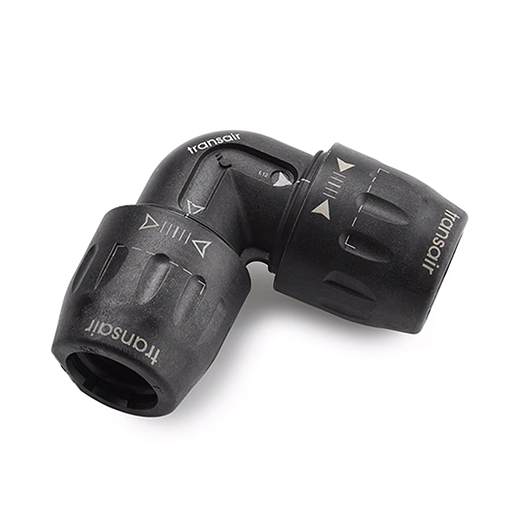

TR angle 16.5 mm 90°
90° elbow Ø 16.5
Pipe fittings suitable for compressed air lines / pipelines. Suitable for the Transair Legris piping system, for example
Transair®, a division of Parker, specializes in the development and manufacturing of compressed air supply solutions tailored to the demanding needs of industrial applications.
transair Legris 90° angle Ø 25 - 66022500
- Quick connection to the compressed air pipes in the network
- Full passage of compressed air without reducing the cross-section within the connector
- Can be replaced and reused at any time (for Ø 16.5, Ø 25 and Ø 40
- Self-extinguishing materials according to (UL94-HB standard)
- Max. Operating pressure:-13 bar from -20°C to +60°C-16 bar from -20°C to +45°C
- Vacuum: 98.7% (13 mbar absolute pressure)
- Operating temperature: -20°C to +60°C
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

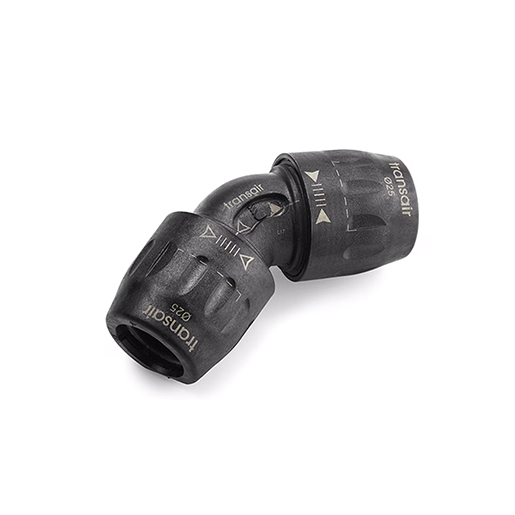

![[6612 25 00] Transair Legris Angle, 25 mm, 45°](/web/image/product.template/150707/image_128/%5B6612%2025%2000%5D%20Transair%20Legris%20Angle%2C%2025%20mm%2C%2045%C2%B0?unique=be47683)
|
45° elbow Ø 25 |
39.22 € | |
![[6602 25 00] Transair Legris Angle, 25 mm, 90°](/web/image/product.template/150708/image_128/%5B6602%2025%2000%5D%20Transair%20Legris%20Angle%2C%2025%20mm%2C%2090%C2%B0?unique=be47683)
|
90° elbow Ø 25 |
37.12 € | |
