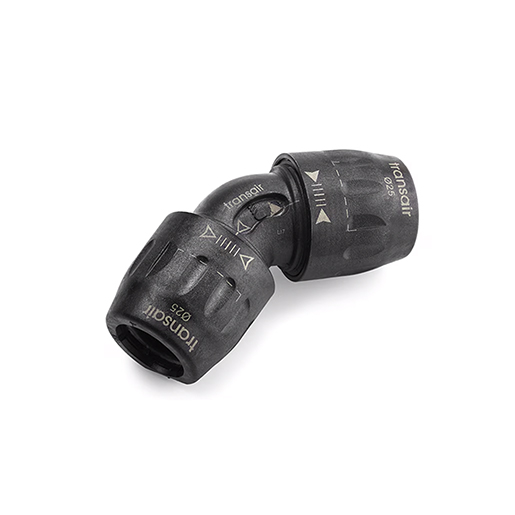

Transair Legris Angle, 25 mm, 45°

Flow-optimized 45° bend for compressed air line Ø 25

45° angle for smooth changes of direction in Transair Ø 25 lines. Lower pressure loss than 90° angle - optimizes energy consumption in the compressed air network.

Technical data

- Max. Operating pressure: 16 bar (-20°C to +45°C), 13 bar (-20°C to +60°C)
- Connection technology: Quick connector with toothed washer
- Operating temperature: -20°C to 85°C
- Suitable media: Compressed air, vacuum, nitrogen, inert gases

Application areas

Wherever the pipe routing changes direction: around corners, supports and machines, across gates and passageways. 45° angles are particularly recommended in places with a high flow rate - they reduce the pressure loss by up to 50 % compared to 90° angles.
