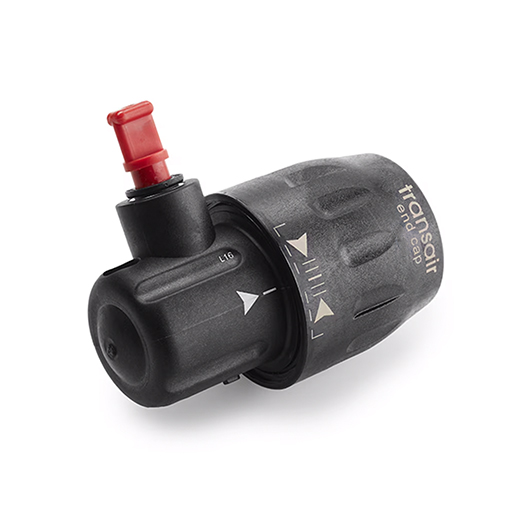

Transair Legris End plug with vent Ø 40

Pipe termination with quick air vent Ø 40 for distribution pipes

Pressure-safe closure with venting function for Transair Ø 40 distribution lines. Quick installation without tools - ideal for temporary cable ends for gradual network expansion.

Technical data

- Max. Operating pressure: 16 bar (-20°C to +45°C), 13 bar (-20°C to +60°C)
- Connection technology: Quick connector with toothed washer
- Operating temperature: -20°C to 85°C
- Suitable media: Compressed air, vacuum, nitrogen, inert gases

Application areas

Used wherever a compressed air line ends: Stub line to the workplace, prepared outlets for later extensions, temporary line terminations during the construction phase. Reliable in cement works and mining operations, even under harsh conditions.
