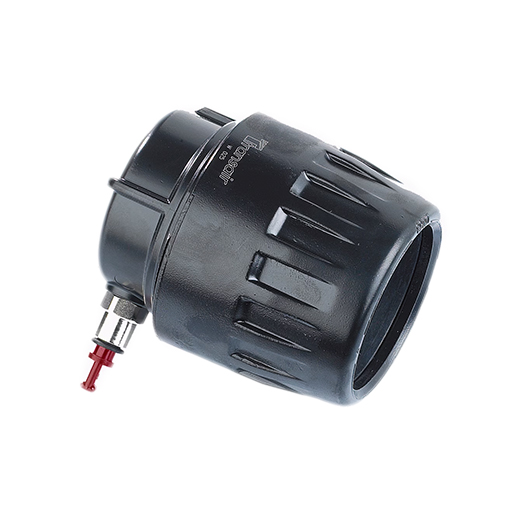

Transair Legris End plug with vent Ø 63

High-pressure pipe termination with vent Ø 63 - SnapRing technology

Heavy-duty end plug with vent for Transair Ø 63 main cables. Secure termination for ring cable ends and spare outlets - SnapRing technology for maximum safety.

Technical data

- Max. Operating pressure: 13 bar (-20°C to +60°C), 7 bar (-20°C to +85°C)
- Connection technology: SnapRing quick connector
- Operating temperature: -20°C to 85°C
- Suitable media: Compressed air, vacuum, nitrogen, inert gases

Application areas

Used wherever a compressed air line ends: Stub line to the workplace, prepared outlets for later extensions, temporary line terminations during the construction phase. Reliable in cement works and mining operations, even under harsh conditions.
