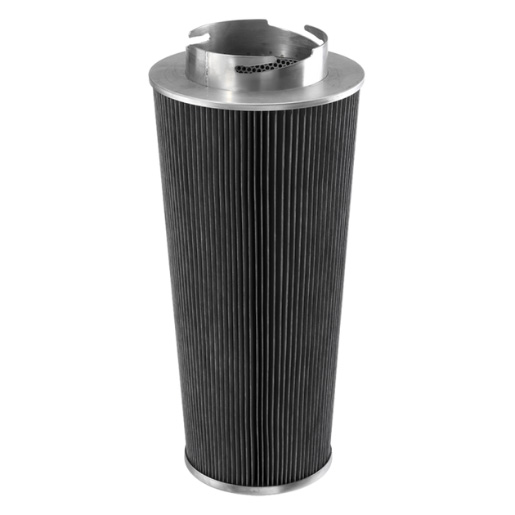

Filtration Group dust filter element 852 062 TI 07/1-12.5 Band

https://www.filcom-technik.de/web/image/product.template/232341/image_1920?unique=f748b28

Conical dust filter element

Diameter:115 mm

Filter material: Polyester fleece with PTFE membrane, electrically dissipative

Filter area: 12.5 m²

1,090.99 € 1090.99 EUR 1,090.99 € VAT Included

1,146.00 € VAT Included

Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers
from 110 € free shipping Details shipping costs
Contact Us
Filtration Group

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

70308725

Category :

Dedusting Filter Media

Weight :

7.65 kg

Filtration Group (formerly MAHLE) Dust filter element 852 062 TI 07/1-12.5 Belt / 70308725

  • Lower filter surface load due to reduced inflow velocity
  • Even cleaning down to the lower area
  • 3 % more free area - thus improved dust sedimentation
  • Longer element service life due to improved cleaning line

    • Note:
    Deviations in the volume flow values are possible due to the type of dust and gas composition.

    Outer diameter (mm) 337
    Electrostatic discharge capability yes
    Element fastening Quicklock
    Element shape Conical
    Element type 852 Series
    End disc material Sheet metal end plate
    Wrinkle stabilisation Banderole
    Filter material TI 07/1
    Height (mm) 986
    Inner diameter (mm) 210
    Installation Raw gas side
    Medium Air
    Seal material EPDM
