Filtration Group dust filter element 852 062 TI 07/1-12.5

Price:

1,044.34 €
    ​
English (US)
  2. Shop
  3. Dedusting Filter Media
  4. Filtration Group dust filter element 852 062 TI 07/1-12.5
Filtration Group dust filter element 852 054 TI 56/2-2.5 V4A
Filtration Group dust filter element 852 054 TI 56/2-2.5 V4A
404.60 €
404.60 €
Filtration Group dust filter element 852 062 TI 07/1-12.5 Band
Filtration Group dust filter element 852 062 TI 07/1-12.5 Band
1,060.53 €
1,060.53 €

Filtration Group dust filter element 852 062 TI 07/1-12.5

https://www.filcom-technik.de/web/image/product.template/232474/image_1920?unique=2be6638

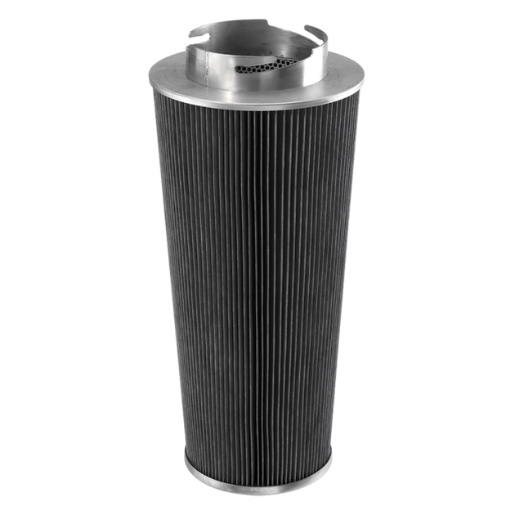

Conical dust filter element

Diameter:120 mm

Filter material: Polyester fleece with PTFE membrane, electrically dissipative

Filter area: 12.5 m²

1,044.34 € 1044.34 EUR 1,044.34 € VAT Included

1,097.00 € VAT Included

  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs
Contact Us
Filtration Group
Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :
70372871
Category :
Dedusting Filter Media
Weight :
7.51 kg

Filtration Group (formerly MAHLE) Dust filter element 852 62 TI 7/1-12.5 / 7372871

  • Lower filter surface load due to reduced inflow velocity
  • Even cleaning down to the lower area
  • 3 % more free area - thus improved dust sedimentation
  • Longer element service life thanks to improved cleaning line

    • Note:
    Deviations in the volume flow values are possible due to the type of dust and gas composition.

    Outer diameter (mm) 337
    Electrostatic discharge capability yes
    Element fastening Quicklock
    Element shape Conical
    Element type 852 Series
    End disc material Sheet metal end plate
    Filter material TI 07/1
    Height (mm) 986
    Inner diameter (mm) 210
    Installation Raw gas side
    Medium Air
    Seal material EPDM
