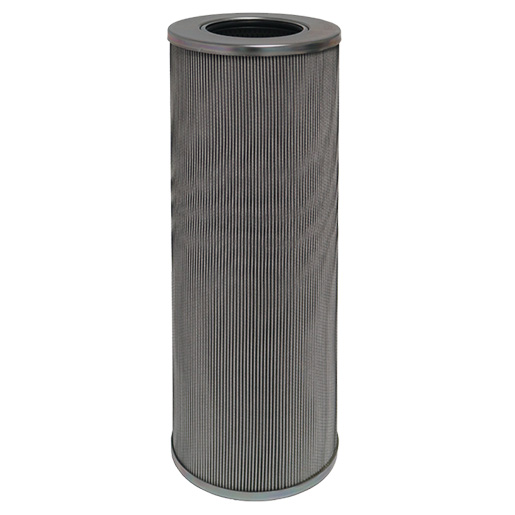

Filtration Group EcoPart Filter element M 0008 DN 2 010
EcoParts replacement filter element suitable for Filtration Group (formerly MAHLE) filters.
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) EcoParts filter element M 8 DN 2 1 / 769625
has the following advantages:
Defined filter performance and cleanliness class
Defined service life
High functionality and safety
High reliability and cost-effectiveness
Certified quality
Tested according to DIN and ISO standards with all current industry approvals
| Mounting diameter (mm) | 25.5 |
| Outer diameter (mm) | 47 |
| Differential pressure (bar) | 20 |
| Element type | EcoParts |
| End disc material | Sheet metal end plate |
| Filter fineness (micrometres) | 10 |
| Filter material | Glass fiber |
| Height (mm) | 171 |
| Inner diameter (mm) | 25.5 |
| Medium | Hydraulic oil |
| Nominal size (l/min) | 80 |
| Original manufacturer | Mahle/FG |
| Original manufacturer product number | PI3108PS10 |
| Seal material | NBR |
| Compatible with SF filter | HY 15025 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[77680341] Filtration Group filter element PI 3108 PS 10](/web/image/product.template/52110/image_128/%5B77680341%5D%20Filtration%20Group%20filter%20element%20PI%203108%20PS%2010%20?unique=bb84aa6)
|
High-quality filter element from Filtration Group for the filtration of hydraulic and lubricating fluids, fuels and flame-retardant and synthetic fluids. Filtration fineness: 10 µm Nominal size: 80 l/min |
77.77 € | |
