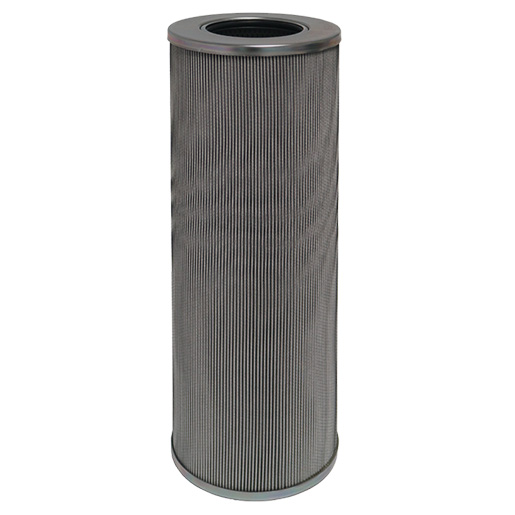

Filtration Group filter element PI 3108 PS 10

High-quality filter element from Filtration Group for the filtration of hydraulic and lubricating fluids, fuels and flame-retardant and synthetic fluids.

Filtration fineness: 10 µm

Nominal size: 80 l/min

77.77 € 77.77 EUR 77.77 € VAT Included

77.80 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

77680341

Category :

Hydraulic Filter Elements

Weight :

0.23 kg

Filtration Group (formerly MAHLE) Filter element Pi 3108 PS 10 / 77680341

Longer service life than conventional filters

Lower energy consumption due to lower differential pressure for longer

Up to 30% more dirt-holding capacity compared to standard products

Guaranteed defined filter retention rate according to ISO 16889 (multi-pass test) over the entire operating time

Star-pleated filter element

Corrosion-protected end caps and support tubes, chrome VI free

Flow direction from outside to inside

Temperature application range -10 °C to +120 °C

For DIN elements: Standard seals NBR, other seals on request

Filter element	FG Standard
Nominal size (l/min)	80
Height (mm)	171
Outer diameter (mm)	47
Inner diameter (mm)	25.5
Mounting diameter (mm)	25.5
Differential pressure resistance (bar)	20
Filter material	Glass fiber
Filter fineness (micrometres)	10
End disc material	Sheet metal end plate
Differential pressure (bar)	20
Element type	FG Standard
Filter material	Glass fiber
Nominal height (mm)	171
Medium	Hydraulic oil
Nominal size	80

FG-Datenblatt_Filterelemente_de

Download
