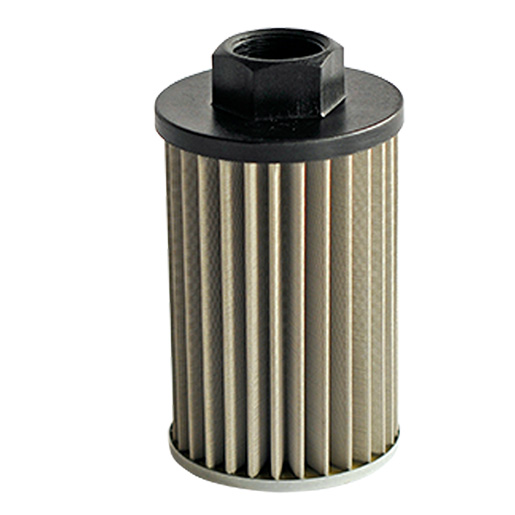

Filtration Group Siebstern suction filter PI 1710/4/DRG 100
Siebstern suction filter Pi 171
Nominal size 5 l/min
Filter surface area 394 cm²
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Siebstern intake filter Pi 171/4 / 77661622
MAHLE suction filters of the Pi 171 series are characterized by their robust design and large filter surface.
The filter surface is dimensioned in such a way that a long service life is guaranteed.
A stainless steel dutch weave with a fineness of 1 µm is used as standard.
It is installed upstream of the pump in the tank.
| Outer diameter (mm) | 61.5 |
| Element fastening | G 3/4 |
| Element type | Intake filter |
| Filter fineness (micrometres) | 100 |
| Filter material | Wire mesh |
| Height (mm) | 86.5 |
| Medium | Hydraulic oil |
| Nominal size (l/min) | < 40 |
