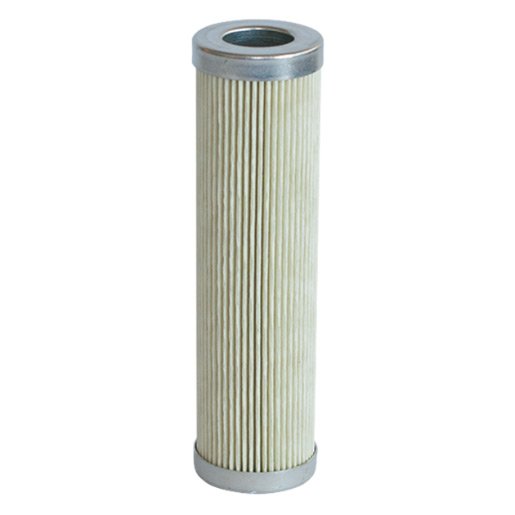

Filtration Group filter element PI 1130 MIC 10
Filter element for Pi 2 - Pi 45
Nominal size 6 l/min for suction filter
Nominal size 3 l/min for line filter
max. differential pressure 2 bar
Filter material cellulose
Filter fineness 1 µm
Filter area 4885 cm²
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) Filter element Pi 1130 MIC 10 / 77680119
Star-pleated filter element
Corrosion-protected end caps and support tubes, chrome VI free
Flow direction from outside to inside
Temperature application range -1 °C to +12 °C
For DIN elements: Standard seals NBR, other seals on request
| Filter element | FG Standard |
| Nominal size (l/min) | 300 |
| Height (mm) | 255.5 |
| Outer diameter (mm) | 84 |
| Inner diameter (mm) | 47.5 |
| Mounting diameter (mm) | 47.5 |
| Differential pressure resistance (bar) | 20 |
| Filter material | Cellulose |
| Filter fineness (micrometres) | 10 |
| End disc material | Plastic end disk PA |
| Filter housing type | Pi 200 |
| Filter housing type | Pi 210 |
| Filter housing type | Pi 211 |
| Filter housing type | Pi 230 |
| Filter housing type | Pi 241 |
| Filter housing type | Pi 281 |
| Filter housing type | Pi 340 |
| Filter housing type | Pi 360 |
| Filter housing type | Pi 370 |
| Filter housing type | Pi 420 |
| Filter housing type | Pi 450 |
| Differential pressure (bar) | 20 |
| Element type | FG Standard |
| Filter material | Zellulose |
| Nominal height (mm) | 255,5 |
| Medium | Hydraulic oil |
| Nominal size | 300 |
