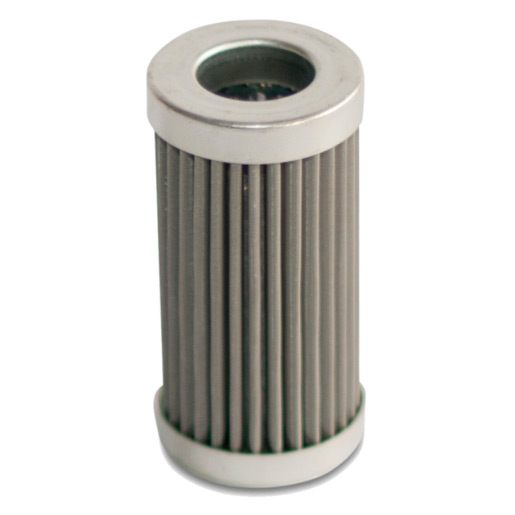

Filtration Group filter element PI 8515 DRG 100
High-quality wire mesh filter element from Filtration Group for surface filtration. Cleanable filter element as a suction and coarse filter in hydraulic filtration for highly viscous media and as a safety filter in cooling lubricant filtration
Filtration fineness: 100 µm
Nominal size: 150 l/min
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) Filter element Pi 8515 DRG 100 / 77681083
Star-pleated filter element
Corrosion-protected end caps and support tubes, chrome VI free
Flow direction from outside to inside
Temperature application range -10 °C to +120 °C
For DIN elements: Standard seals NBR, other seals on request
| Filter element | FG Standard |
| Nominal size (l/min) | 150 |
| Height (mm) | 142 |
| Outer diameter (mm) | 84 |
| Inner diameter (mm) | 47.5 |
| Mounting diameter (mm) | 47.5 |
| Differential pressure resistance (bar) | 20 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 100 |
| End disc material | Plastic end disk PA |
| Differential pressure (bar) | 20 |
| Element type | FG Standard |
| Filter material | Wire mesh |
| Nominal height (mm) | 142 |
| Medium | Hydraulic oil |
| Nominal size | 150 |
