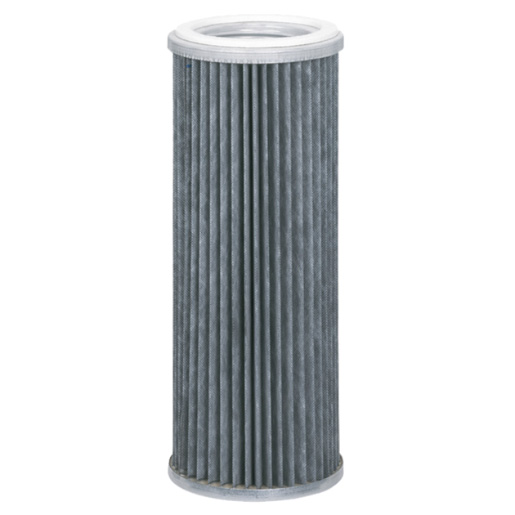

Filtration Group dust filter element 852 926 TI 07/1-0,3 2-pack
Cylindrical dust filter element
Diameter:328 mm
Filter material: Polyester fleece with PTFE membrane, electrically dissipative
Filter area: 0.3 m²
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

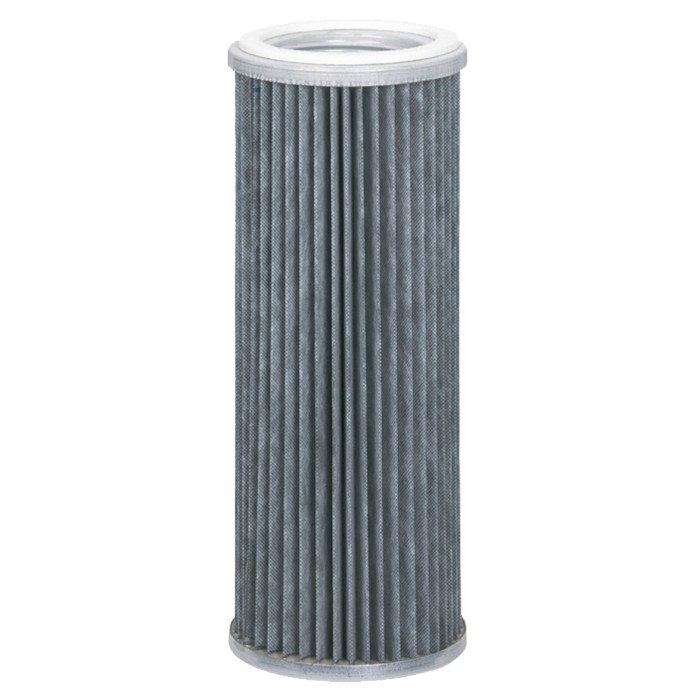

Filtration Group (formerly MAHLE) Dust filter element 852 926 TI 7/1-,3 pack of 2 / 78334849
Note:
Deviations in the volume flow values are possible due to the type of dust and gas composition.
| Outer diameter (mm) | 120 |
| Electrostatic discharge capability | yes |
| Element fastening | Rd 72 x 5 |
| Element shape | Cylindrical |
| Element type | 852 Series |
| End disc material | Sheet metal end plate |
| Filter material | TI 07/1 |
| Height (mm) | 200 |
| Inner diameter (mm) | 68 |
| Installation | Raw gas side |
| Medium | Air |
| Seal material | Felt (polyester) |
