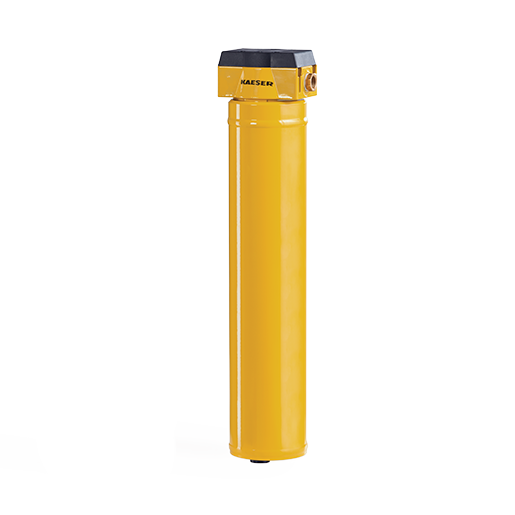

KAESER Membrane dryer KMM 7 ohne Purge air stop valve
Volume flow with pressure dew point reduction +5 °C -> -20 °C: 1.83 (m³/min) | Compressed air connection: R 1
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
KAESER membrane dryer
KMM - Innovative, compact and efficient
The KMM membrane dryers from Kaeser are characterized by their unique flow concept and the innovative helix winding of highly efficient hollow fibre membranes. They are ideally suited for use at pressure dew points in the minus range and in areas with limited space. The compressed air loss is minimized by a precise purge air nozzle, and the optional purge air stop valve significantly increases the efficiency of the dryer, especially during idle periods.
Performance parameters for KMM:
- Volume flow: 0.04 to 3.97 m³/min
- Pressure dew point: +10 °C to -40 °C
Large partition area with minimal space requirement
Purge air stop valve increases efficiency during downtimes.
Effective drainage of water molecules inwards (flow concept)
Note:
Efficient pre-filters are essential to ensure optimum protection for membrane dryers in the KMM series. The KAESER FILTER offer the ideal solution for this. They effectively keep dirt away from the membrane fibers at an extremely low differential pressure.
| Volume flow with pressure dew point reduction +35 °C -> +3 °C (m³/min) | 1,97 |
| Volume flow with pressure dew point reduction +35 °C -> -20 °C (m³/min) | 0,98 |
| Volume flow with pressure dew point reduction +5 °C -> -20 °C (m³/min) | 1,83 |
| Purge air (m³/min) | 0,30 |
| Compressed air connection | R 1 |
| Min. overpressure (bar) | 4 |
| Max. Overpressure (bar) | 14 |
| Compressed air inlet temperature min. (°C) | +1 |
| Compressed air inlet temperature max. (°C) | +66 |
| Width (mm) | 164 |
| Depth (mm) | 164 |
| Height (mm) | 882 |
| Weight (kg) | 8,60 |
| Purge air stop valve | No |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

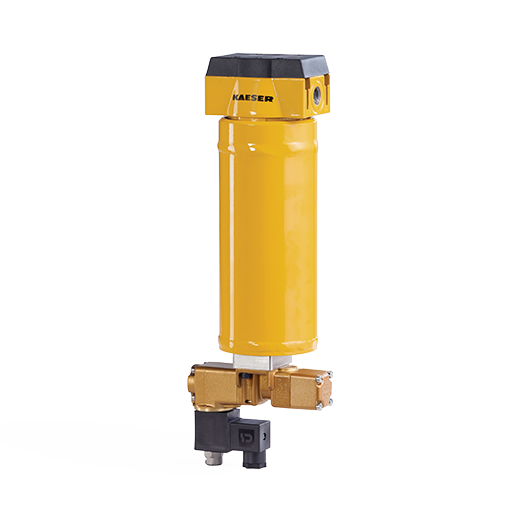

![[9.4997.10030] KAESER Membrane dryer KMM 7 with Purge air stop valve](/web/image/product.template/103098/image_128/%5B9.4997.10030%5D%20KAESER%20Membrane%20dryer%20KMM%207%20with%20Purge%20air%20stop%20valve?unique=a4f8856)
|
Volume flow with pressure dew point reduction +5 °C -> -20 °C: 1.83 (m³/min) | Compressed air connection: R 1 |
5,765.55 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

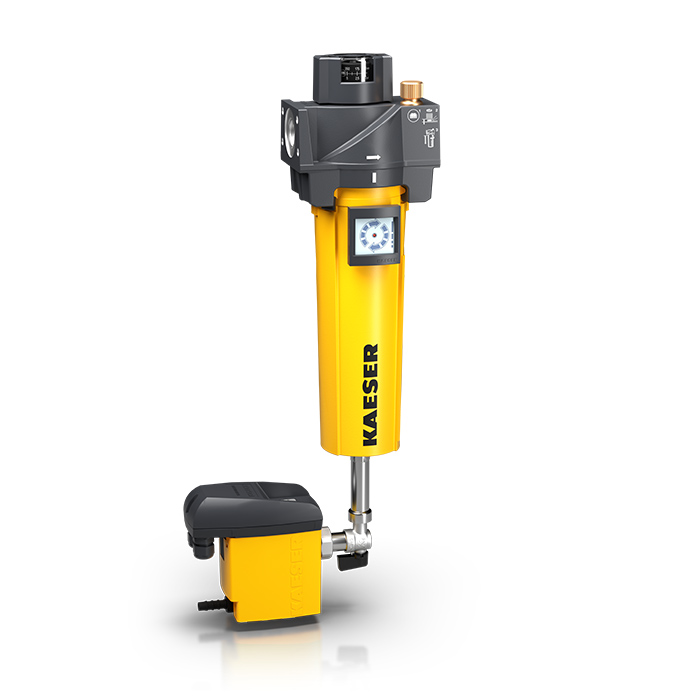

![[102115.20341] KAESER Filter Extra model F22KE G 3/4", ECO-DRAIN 31F](/web/image/product.template/262287/image_128/%5B102115.20341%5D%20KAESER%20Filter%20Extra%20model%20F22KE%20G%203-4%22%2C%20ECO-DRAIN%2031F?unique=f52740e)
|
Volume flow: 2.20 m³/min | Residual aerosol content at outlet: < 0.1 mg/m³ |
831.81 € | |
![[9.2989.0] KAESER wall bracket for KMM 5 - 9](/web/image/product.template/257434/image_128/%5B9.2989.0%5D%20KAESER%20wall%20bracket%20for%20KMM%205%20-%209?unique=a4f8856)
|
Precisely fitting, stable wall brackets are available as an option for KAESER filters. They are simply mounted on the connection flanges. |
80.80 € | |
