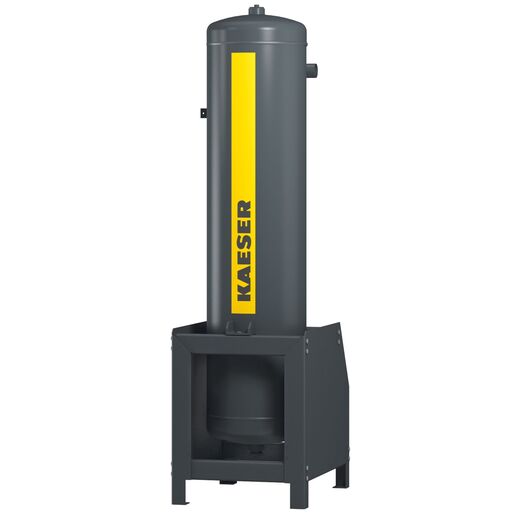

KAESER Activated carbon adsorber model ACT 52
Volume flow: 5.20 m³/min | Compressed air connection: R 1 1/2
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
Product no. :
902723.0Category :
Activated Carbon AdsorbersWeight :
160.00 kgDelivery area :
GermanyKAESER ACT activated carbon adsorbers provide technically oil-free and odorless compressed air for continuous applications. They achieve residual oil contents of class 1 in accordance with ISO 8573-1 and protect sensitive production processes. With an oil vapor indicator, they guarantee a service life of up to 12,000 full-load hours or 5 years and are economical thanks to their low pressure loss.
| Volume flow (m³/min) | 5,20 |
| Pressure loss (bar) | 0,10 |
| Min. overpressure (bar) | 4 |
| Max. Overpressure (bar) | 16 |
| Min. ambient temperature (°C) | +2 |
| Max. Ambient temperature (°C) | +45 |
| Volume of compressed air tank (litres) | 93 |
| Width (mm) | 350 |
| Depth (mm) | 750 |
| Height (mm) | 1980 |
| Compressed air connection | R 1½ |
| Min. inlet temperature compressed air (°C) | +2 |
| Max. Compressed air inlet temperature (°C) | +55 |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[102122.10501] KAESER Filter Dust model F46KD G 1 1/4"](/web/image/product.template/262309/image_128/%5B102122.10501%5D%20KAESER%20Filter%20Dust%20model%20F46KD%20G%201%201-4%22?unique=3f88f88)
|
Volume flow: 4.61 m³/min |
711.32 € | |
![[102123.20541] KAESER Filter Extra model F46KE G 1 1/4", ECO-DRAIN 31F](/web/image/product.template/262313/image_128/%5B102123.20541%5D%20KAESER%20Filter%20Extra%20model%20F46KE%20G%201%201-4%22%2C%20ECO-DRAIN%2031F?unique=3f88f88)
|
Volume flow: 4.61 m³/min | Residual aerosol content at outlet: < 0.1 mg/m³ |
1,017.45 € | |

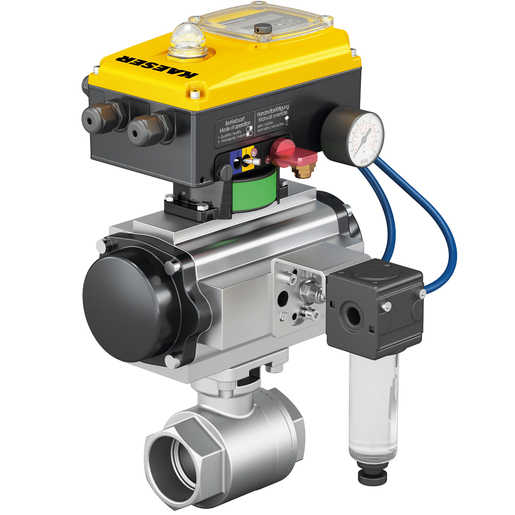

![[920025.2] KAESER Pressure maintenance system Model DHS4.0 40G G1 1/2" PS16](/web/image/product.template/102678/image_128/%5B920025.2%5D%20KAESER%20Pressure%20maintenance%20system%20Model%20DHS4.0%2040G%20G1%201-2%22%20PS16?unique=2ec5ced)
|
DHS 4.0 Electronic Pressure Maintenance System | G 1 1/2" | Ball Valve | 16 bar | Pulse Width Modulation | SIGMA NETWORK |
3,290.35 € | |
