CS INSTRUMENTS DS 500 mobile - Intelligent paperless recorder, 8 sensor inputs
As a leading manufacturer of compressed air measurement technology, CS INSTRUMENTS stands for highest quality and innovation. "Made in Germany" is our practice - development, production, and calibration take place exclusively in Germany
Intelligent mobile paperless recorder - 8 sensor inputs, 7" touch
The CS Instruments DS 500mobil is an intelligent monitoring recorder and the central platform for your compressed air monitoring. With 8 freely assignable sensor inputs, you can connect all CS Instruments sensors and third-party devices (4-20 mA, 0-10 V, Pt100, Pt1000, pulse, Modbus). The 7" color display with touch panel clearly shows measurement curves, alarms and meter readings. Integrated web server for remote access, USB, Ethernet, RS 485 (Modbus-RTU/TCP). This mobile version comes in a robust carrying case (360 x 270 x 150 mm) and is ideal for compressed air audits, energy analysis and temporary measurements.
Compressed air monitoring & energy management
The DS 500 automatically calculates key energy figures such as kWh/m³ and costs per cubic meter. Close Consumption measurement-Sensors, Dew point measurement-Sensors, Pressure sensors and Compressed air quality-Measuring devices - for seamless energy monitoring in accordance with ISO 50001. Accessories such as connection cables and Ethernet cables can be found at FILCOM.
| Power supply | 100...240 VAC, 50-60 Hz |
| Material | Die-cast, front foil polyester, ABS |
| Operating temperature (°C) | 0...50 |
| Interface | USB stick, Ethernet / RS 485 Modbus RTU / TCP, SDI other bus systems on request, web server optional |
| Weight (kg) | 4,5 |
| Sensor inputs | - 4/8/12 sensor inputs for analog and digital sensors freely assignable. See options - digital CS sensors for dew point and consumption with SDI interface FA/VA series - digital external sensors RS 485 / Modbus RTU, other bus systems can be implemented on request - analog CS sensors for pressure, temperature and current clamps preconfigured - analog external sensors 0/4...20 mA, 0...1/10/30 V, pulse, Pt 100 / Pt 1000, KTY |
| Power supply for sensor | 24 VDC, max. 130 mA per sensor, integrated power supply unit max. 24 VDC, 25 W. For version 8 -12 sensor inputs, 2 integrated power supply units each max. 24 VDC, 25 W |
| Memory card | Memory size 16 GB Micro SD card |
| Color display | 7″ Touch panel TFT transmissive, graphics, curves, statistics |
| Storage temperature | -20...70 |
| Case dimensions | 360 x 270 x 150 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

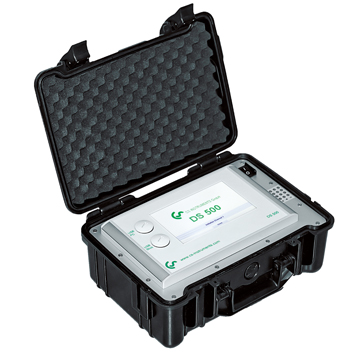

![[0500 5014] CS INSTRUMENTS DS 500 mobile - Intelligent paperless recorder, 12 sensor inputs](/web/image/product.template/194716/image_128/%5B0500%205014%5D%20CS%20INSTRUMENTS%20DS%20500%20mobile%20-%20Intelligent%20paperless%20recorder%2C%2012%20sensor%20inputs?unique=7f0af9f)
|
5,977.37 € | ||

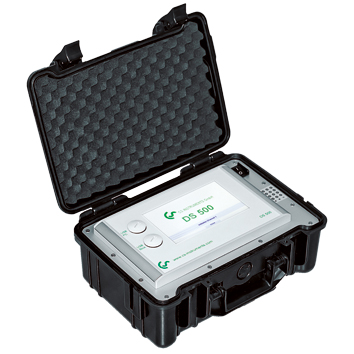

![[0500 5012] CS INSTRUMENTS DS 500 mobile - Intelligent paperless recorder, 4 sensor inputs](/web/image/product.template/194714/image_128/%5B0500%205012%5D%20CS%20INSTRUMENTS%20DS%20500%20mobile%20-%20Intelligent%20paperless%20recorder%2C%204%20sensor%20inputs?unique=d5966cb)
|
3,659.25 € | ||

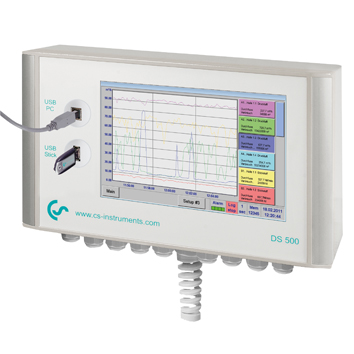

![[0500 5000] CS INSTRUMENTS Intelligent paperless recorder model DS 500 with 4 sensor inputs](/web/image/product.template/111425/image_128/%5B0500%205000%5D%20CS%20INSTRUMENTS%20Intelligent%20paperless%20recorder%20model%20DS%20500%20with%204%20sensor%20inputs?unique=3f0c6ad)
|
2,911.93 € | ||
