CS INSTRUMENTS DS 500 mobile - Intelligent paperless recorder, 12 sensor inputs
As a leading manufacturer of compressed air measurement technology, CS INSTRUMENTS stands for highest quality and innovation. "Made in Germany" is our practice - development, production, and calibration take place exclusively in Germany
Intelligent mobile paperless recorder - 12 sensor inputs, 7" touch

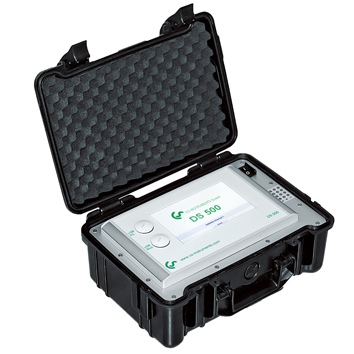

The CS Instruments DS 500mobil is an intelligent monitor recorder and the central platform for your compressed air monitoring. With 12 freely assignable sensor inputs, you can connect all CS Instruments sensors and third-party devices (4-20 mA, 0-10 V, Pt100, Pt1000, pulse, Modbus). The 7" color display with touch panel clearly shows measurement curves, alarms and meter readings. Integrated web server for remote access, USB, Ethernet, RS 485 (Modbus-RTU/TCP). This mobile version comes in a robust carrying case (360 x 270 x 150 mm) and is ideal for compressed air audits, energy analysis and temporary measurements.
Compressed air monitoring & energy management
The DS 500 automatically calculates key energy figures such as kWh/m³ and costs per cubic meter. Close Consumption measurement-Sensors, Dew point measurement-Sensors, Pressure sensors and Compressed air quality-Measuring devices - for seamless energy monitoring in accordance with ISO 50001. Accessories such as connection cables and Ethernet cables can be found at FILCOM.
| Power supply | 100...240 VAC, 50-60 Hz |
| Material | Die-cast, front foil polyester, ABS |
| Operating temperature (°C) | 0...50 |
| Interface | USB stick, Ethernet / RS 485 Modbus RTU / TCP, SDI other bus systems on request, web server optional |
| Weight (kg) | 4,5 |
| Sensor inputs | - 4/8/12 sensor inputs for analog and digital sensors freely assignable. See options - digital CS sensors for dew point and consumption with SDI interface FA/VA series - digital external sensors RS 485 / Modbus RTU, other bus systems can be implemented on request - analog CS sensors for pressure, temperature and current clamps preconfigured - analog external sensors 0/4...20 mA, 0...1/10/30 V, pulse, Pt 100 / Pt 1000, KTY |
| Power supply for sensor | 24 VDC, max. 130 mA per sensor, integrated power supply unit max. 24 VDC, 25 W. For version 8 -12 sensor inputs, 2 integrated power supply units each max. 24 VDC, 25 W |
| Memory card | Memory size 16 GB Micro SD card |
| Color display | 7″ Touch panel TFT transmissive, graphics, curves, statistics |
| Storage temperature | -20...70 |
| Case dimensions | 360 x 270 x 150 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[0500 5012] CS INSTRUMENTS DS 500 mobile - Intelligent paperless recorder, 4 sensor inputs](/web/image/product.template/194714/image_128/%5B0500%205012%5D%20CS%20INSTRUMENTS%20DS%20500%20mobile%20-%20Intelligent%20paperless%20recorder%2C%204%20sensor%20inputs?unique=d5966cb)
|
3,659.25 € | ||

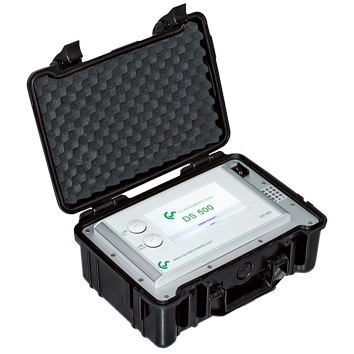

![[0500 5013] CS INSTRUMENTS DS 500 mobile - Intelligent paperless recorder, 8 sensor inputs](/web/image/product.template/194715/image_128/%5B0500%205013%5D%20CS%20INSTRUMENTS%20DS%20500%20mobile%20-%20Intelligent%20paperless%20recorder%2C%208%20sensor%20inputs?unique=a4bc7aa)
|
4,871.86 € | ||

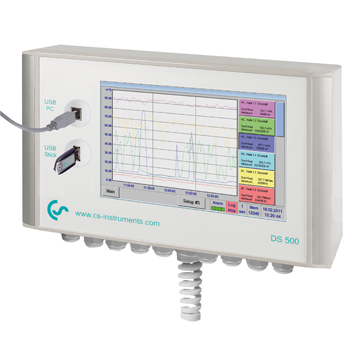

![[0500 5000] CS INSTRUMENTS Intelligent paperless recorder model DS 500 with 4 sensor inputs](/web/image/product.template/111425/image_128/%5B0500%205000%5D%20CS%20INSTRUMENTS%20Intelligent%20paperless%20recorder%20model%20DS%20500%20with%204%20sensor%20inputs?unique=3f0c6ad)
|
