CS INSTRUMENTS VA 500 Consumption sensor with RS 485 (Modbus-RTU) interface, with analog output 4-20mA
As a leading manufacturer of compressed air measurement technology, CS INSTRUMENTS stands for highest quality and innovation. "Made in Germany" is our practice - development, production, and calibration take place exclusively in Germany
Insertion flow sensor - thermal, DN 8 to DN 2000

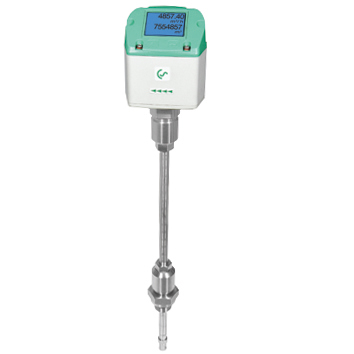

The CS Instruments VA 500 is a thermal insertion flow sensor for the precise measurement of compressed air consumption and gas volume flow. Thanks to installation via a ½" ball valve fitting, it fits into pipelines from DN 8 to DN 2000 - it can also be installed during operation under pressure. The display shows instantaneous consumption (Nm³/h), total consumption (Nm³) and temperature simultaneously. Interfaces: 4-20 mA, pulse, RS 485 (Modbus-RTU). Measuring dynamics up to 1:1000, bidirectional measurement possible. All gas types: compressed air, N₂, O₂, CO₂, argon and many more.
Application areas
The VA 500 is ideal for recording consumption on compressors, distributors, individual production lines or machines. In combination with a Screen recorder turns individual measurement into genuine compressed air monitoring. Thanks to the simple plug-in installation, retrofitting is also possible without having to convert the line.
Quality made in Germany
Like all CS Instruments products, the VA 500 is developed, manufactured and individually calibrated at the VS-Tannheim site in the Black Forest. Matching Accessories can also be found at FILCOM.
| Burden | < 500 Ω |
| Operating temperature (°C) | -30...110 Sensor tube, -20...85 with pressure sensor -20...+70 Housing |
| Measured variables | m³/h, l/min (1000 mbar, 20 °C) for compressed air or Nm³/h, Nl/min (1013 mbar, 0 °C) for gases |
| Units via keypad on the display | m³/h, m³/min, l/min, l/s, ft/min, cfm, m/s, kg/h, kg/min, g/s, lb/min, lb/h |
| Adjustable via display | Diameter for volume flow calculation, counter resettable |
| Sensor | Thermal mass flow sensor |
| Measuring medium | Air, gases |
| Gas types via CS Service Software or | Air, nitrogen, argon, CO2, oxygen, vacuum |
| Accuracy (v. M. = from measured value) (v. E. |
± 1.5 % of the average ± 0.3 % of the average on request: ± 1 % of the average ± 0.3 % of the average |
| Operating pressure (bar) | -1...50 (For pressure > 10 - order high-pressure fuse separately) |
| Digital output | RS 485 interface (Modbus-RTU), optional: Ethernet interface PoE, M-Bus |
| Pulse output | 1 pulse per m³ or per liter galvanically isolated. Pulse value adjustable on the display. Alternatively, the pulse output can be used as an alarm |
| Supply | 18...36 VDC, 5 W |
| Housing | Polycarbonate (IP 65) |
| Sensor tube | Stainless steel, 1.4301 Installation length 220 mm, Ø 10 mm |
| Mounting thread | G 1/2″, 1/2″ NPT male thread |
| Ø Housing | 65 mm |
| Installation position | any |
