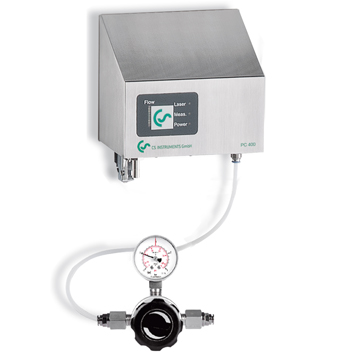

CS INSTRUMENTS PC 400 Particle counter up to 0.1 µm for compressed air and gases
As a leading manufacturer of compressed air measurement technology, CS INSTRUMENTS stands for highest quality and innovation. "Made in Germany" is our practice - development, production, and calibration take place exclusively in Germany
Laser particle counter - from 0.1 µm, 28.3 l/min flow rate
The CS Instruments PC 400 is a high-precision optical laser particle counter for compressed air and technical gases. It detects particles from 0.1 µm in three measuring channels and verifies compressed air quality class 1 in accordance with ISO 8573-1. With a flow rate of 28.3 l/min (1 cfm), it counts ten times faster than commercially available devices.
Application areas
The PC 400 is suitable for monitoring particle contamination in the food, pharmaceutical and semiconductor industries. Data transmission via Modbus RTU for connection to the Screen recorder DS 500 for long-term monitoring. In combination with the OIL CHECK 500 and Dew point measurement-Sensors cover all ISO 8573-1 parameters. Accessories at FILCOM.
| Measuring medium | Compressed air (free from aggressive, corrosive, caustic, toxic, flammable and oxidizing substances) as well as gas types such as N2, O2, CO2. Other gas types on request. |
| Operating pressure (bar) | max. inlet pressure at the pressure reducer: 40 bar |
| Interface | RS 485 (Modbus-RTU) |
| Weight (kg) | 8 |
| Field of application | For compressed air after filtration; for gases / high-purity gases also without filtration |
| Sample gas humidity | <= 90% rel. humidity, pressure dew point max. +10 °C, non-condensable humidity |
| Ambient temperature (°C) | 5...40 |
| Temperature of the measured medium | 0...40 |
| Compressed air connection | 6 mm PTFE hose incl. quick coupling |
| Flow rate | 28.3 l/min (1 cfm) |
| Light source | Laser diode |
| Power supply | 24 VDC, 300 mA |
