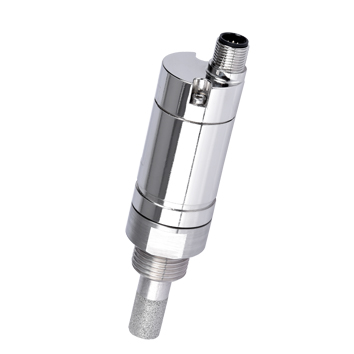

CS INSTRUMENTS FA 510 Dew point sensor for refrigeration dryers incl. factory certificate, 4...20 mA
As a leading manufacturer of compressed air measurement technology, CS INSTRUMENTS stands for highest quality and innovation. "Made in Germany" is our practice - development, production, and calibration take place exclusively in Germany
Dew point sensor for refrigeration dryers - -20...50 °Ctd
The CS Instruments FA 510 is a high-precision dew point sensor for the continuous monitoring of refrigeration dryers in compressed air systems. With a measuring range of -20...50 °Ctd, it reliably detects the pressure dew point and warns via alarm relay as soon as the limit value is exceeded. Features: Display with bar graph, 1x alarm relay, 4-20 mA analog output, RS 485 (Modbus-RTU). Pressure-resistant up to -1...50, special version up to 500, power supply 24 VDC (10...36 VDC). Developed and manufactured in the Black Forest - 100 % Made in Germany.
Application areas
The FA 510 is suitable for monitoring refrigeration dryers in production plants, the food and pharmaceutical industries and wherever compressed air quality in accordance with ISO 8573-1 must be maintained. In combination with a Screen recorder such as the DS 400 or DS 500, a seamless monitoring system is created for your compressed air system. Suitable Accessories such as connection lines and measuring chambers can also be found at FILCOM.
| Measuring range | -20...50 °Ctd |
| Accuracy | ± 1 °C at +50...-20 °Ctd / ± 2 °C at -20...-50 °Ctd / ± 3 °C at -50...-80 °Ctd |
| Pressure range (bar) | -1...50, special version up to 500 |
| Power supply | 24 VDC (10...36 VDC) |
| Protection class | IP 66 |
| EMC | DIN EN 61326-1 |
| Operating temperature (°C) | -20...70 |
| Connection | M12, 5-pin |
| PC connection | Modbus RTU interface (RS 485) |
| Analogue output | 4...20 mA analog output (3-wire technology) and Modbus RTU interface |
| Load for analogue output | < 500 Ω |
| Dimensions | Ø 30 mm, length approx. 130 mm |
| Screw-in thread | G 1/2″ stainless steel, optional: UNF 5/8″, NPT 1/2″ |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

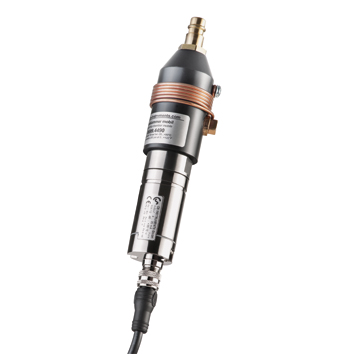

![[0699 1512] CS INSTRUMENTS FA 510 Dew point sensor, -20...+50 °Ctd incl. mobile measuring chamber, 5m connection cable](/web/image/product.template/111400/image_128/%5B0699%201512%5D%20CS%20INSTRUMENTS%20FA%20510%20Dew%20point%20sensor%2C%20-20--.%2B50%20%C2%B0Ctd%20incl.%20mobile%20measuring%20chamber%2C%205m%20connection%20cable?unique=6fe5099)
|
1,428.00 € | ||

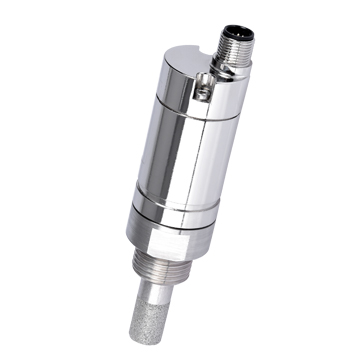

![[0699 0510] CS INSTRUMENTS FA 510 Dew point sensor for adsorption dryers incl. factory certificate, 4...20 mA](/web/image/product.template/111341/image_128/%5B0699%200510%5D%20CS%20INSTRUMENTS%20FA%20510%20Dew%20point%20sensor%20for%20adsorption%20dryers%20incl.%20factory%20certificate%2C%204--.20%20mA?unique=29cd979)
|
1,694.56 € | ||

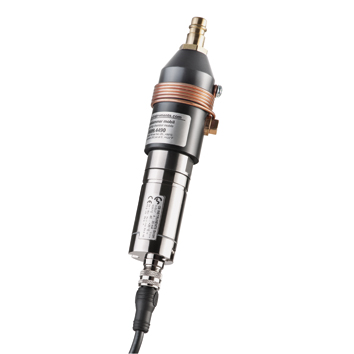

![[0699 1510] CS INSTRUMENTS FA 510 Dew point sensor mobile -80...+20°C, incl. mobile measuring chamber, incl. connection cable](/web/image/product.template/111372/image_128/%5B0699%201510%5D%20CS%20INSTRUMENTS%20FA%20510%20Dew%20point%20sensor%20mobile%20-80--.%2B20%C2%B0C%2C%20incl.%20mobile%20measuring%20chamber%2C%20incl.%20connection%20cable?unique=acc4542)
|
2,125.34 € | ||
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

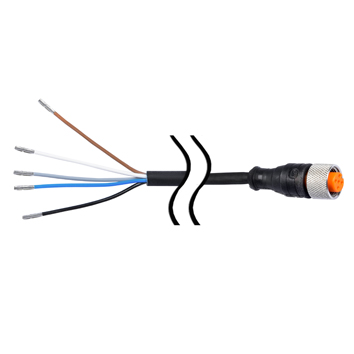

![[0553 0104] CS INSTRUMENTS Connection cable for VA/FA series](/web/image/product.template/111379/image_128/%5B0553%200104%5D%20CS%20INSTRUMENTS%20Connection%20cable%20for%20VA-FA%20series?unique=9c5e356)
|
69.02 € | ||

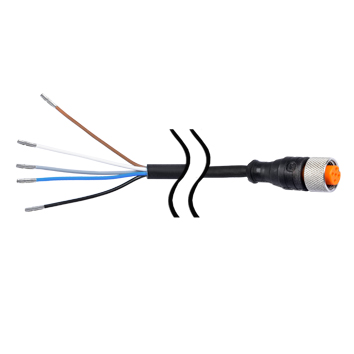

![[0553 0105] CS INSTRUMENTS Connection cable for VA/FA series,10 mtr. with M12 plug](/web/image/product.template/111380/image_128/%5B0553%200105%5D%20CS%20INSTRUMENTS%20Connection%20cable%20for%20VA-FA%20series%2C10%20mtr.%20with%20M12%20plug?unique=86d16c6)
|
86.87 € | ||

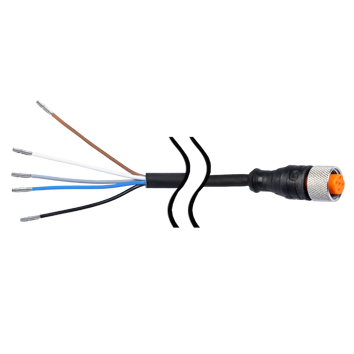

![[0553 0106] CS INSTRUMENTS Cable for alarm/pulse output for dew point sensors/consumption sensors, with M12 plug, 5 m](/web/image/product.template/111269/image_128/%5B0553%200106%5D%20CS%20INSTRUMENTS%20Cable%20for%20alarm-pulse%20output%20for%20dew%20point%20sensors-consumption%20sensors%2C%20with%20M12%20plug%2C%205%20m?unique=ef7c436)
|
69.02 € | ||
![[0553 0107] CS INSTRUMENTS Cable for alarm/pulse output for dew point sensors/consumption sensors, with M12 plug, 10 m](/web/image/product.template/194892/image_128/%5B0553%200107%5D%20CS%20INSTRUMENTS%20Cable%20for%20alarm-pulse%20output%20for%20dew%20point%20sensors-consumption%20sensors%2C%20with%20M12%20plug%2C%2010%20m?unique=73527fe)
|
86.87 € | ||
![[0553 0120] CS INSTRUMENTS Connection cable for VA/FA series, 20 m with M12 plug](/web/image/product.template/194896/image_128/%5B0553%200120%5D%20CS%20INSTRUMENTS%20Connection%20cable%20for%20VA-FA%20series%2C%2020%20m%20with%20M12%20plug?unique=8c6f08f)
|
145.18 € | ||

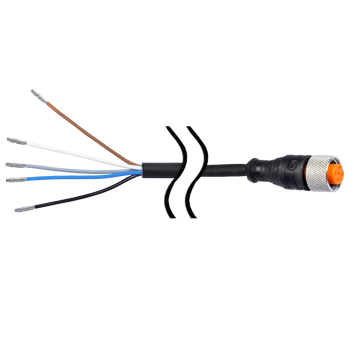

![[0553 0129] CS INSTRUMENTS Connection cable for VA/FA series, 5 m SHIELDED](/web/image/product.template/194725/image_128/%5B0553%200129%5D%20CS%20INSTRUMENTS%20Connection%20cable%20for%20VA-FA%20series%2C%205%20m%20SHIELDED?unique=07626e3)
|
88.06 € | ||

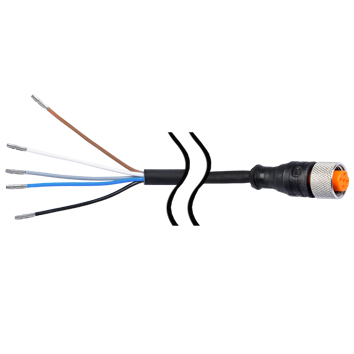

![[0553 0130] CS INSTRUMENTS Connection cable for VA/FA series, 10 m SHIELDED](/web/image/product.template/194726/image_128/%5B0553%200130%5D%20CS%20INSTRUMENTS%20Connection%20cable%20for%20VA-FA%20series%2C%2010%20m%20SHIELDED?unique=0da95c0)
|
