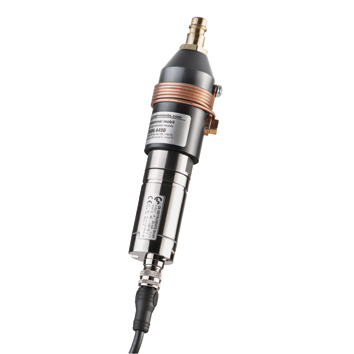

CS INSTRUMENTS FA 510 Dew point sensor mobile -80...+20°C, incl. mobile measuring chamber, incl. connection cable
As a leading manufacturer of compressed air measurement technology, CS INSTRUMENTS stands for highest quality and innovation. "Made in Germany" is our practice - development, production, and calibration take place exclusively in Germany
Dew point sensor for mobile devices - -80...+20 °Ctd
The CS Instruments FA 510 is a high-precision dew point sensor for continuous monitoring of mobile devices in compressed air systems. With a measuring range of -80...+20 °Ctd, it reliably detects the pressure dew point and warns via alarm relay as soon as the limit value is exceeded. Features: Display with bar graph, 1x alarm relay, 4-20 mA analog output, RS 485 (Modbus-RTU). Pressure-resistant up to -1...50, special version up to 500, power supply 24 VDC (10...36 VDC). Developed and manufactured in the Black Forest - 100 % Made in Germany.
Application areas
The FA 510 is suitable for monitoring mobile devices in production plants, the food and pharmaceutical industries and wherever compressed air quality in accordance with ISO 8573-1 must be maintained. In combination with a Screen recorder such as the DS 400 or DS 500, a seamless monitoring system is created for your compressed air system. Suitable Accessories such as connection lines and measuring chambers can also be found at FILCOM.
| Measuring range | -80...20 °Ctd, -20...50 °Ctd |
| Accuracy | ± 1 °C at +50...-20 °Ctd / ± 2 °C at -20...-50 °Ctd / ± 3 °C at -50...-80 °Ctd |
| Pressure range (bar) | -1...50, special version up to 500 |
| Power supply | 24 VDC (10...36 VDC) |
| Protection class | IP 66 |
| EMC | DIN EN 61326-1 |
| Burden | < 500 Ω |
| Screw-in thread | G 1/2″ stainless steel, optional: UNF 5/8″, NPT 1/2″ |
| Operating temperature (°C) | -20...70 |
| Connection | M12, 5-pin |
| PC connection | Modbus RTU interface (RS 485) |
| Analogue output | 4...20 mA analog output (3-wire technology) and Modbus RTU interface |
| Dimensions | Ø 30 mm, length approx. 130 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

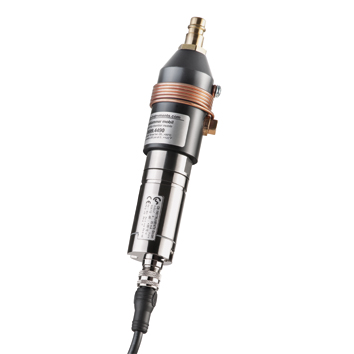

![[0699 1512] CS INSTRUMENTS FA 510 Dew point sensor, -20...+50 °Ctd incl. mobile measuring chamber, 5m connection cable](/web/image/product.template/111400/image_128/%5B0699%201512%5D%20CS%20INSTRUMENTS%20FA%20510%20Dew%20point%20sensor%2C%20-20--.%2B50%20%C2%B0Ctd%20incl.%20mobile%20measuring%20chamber%2C%205m%20connection%20cable?unique=6fe5099)
|
1,428.00 € | ||

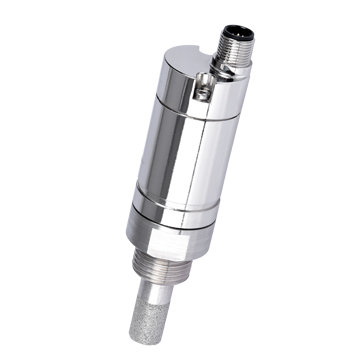

![[0699 0510] CS INSTRUMENTS FA 510 Dew point sensor for adsorption dryers incl. factory certificate, 4...20 mA](/web/image/product.template/111341/image_128/%5B0699%200510%5D%20CS%20INSTRUMENTS%20FA%20510%20Dew%20point%20sensor%20for%20adsorption%20dryers%20incl.%20factory%20certificate%2C%204--.20%20mA?unique=29cd979)
|
1,694.56 € | ||

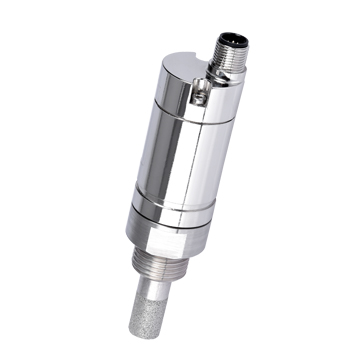

![[0699 0512] CS INSTRUMENTS FA 510 Dew point sensor for refrigeration dryers incl. factory certificate, 4...20 mA](/web/image/product.template/111399/image_128/%5B0699%200512%5D%20CS%20INSTRUMENTS%20FA%20510%20Dew%20point%20sensor%20for%20refrigeration%20dryers%20incl.%20factory%20certificate%2C%204--.20%20mA?unique=b05c76c)
|
