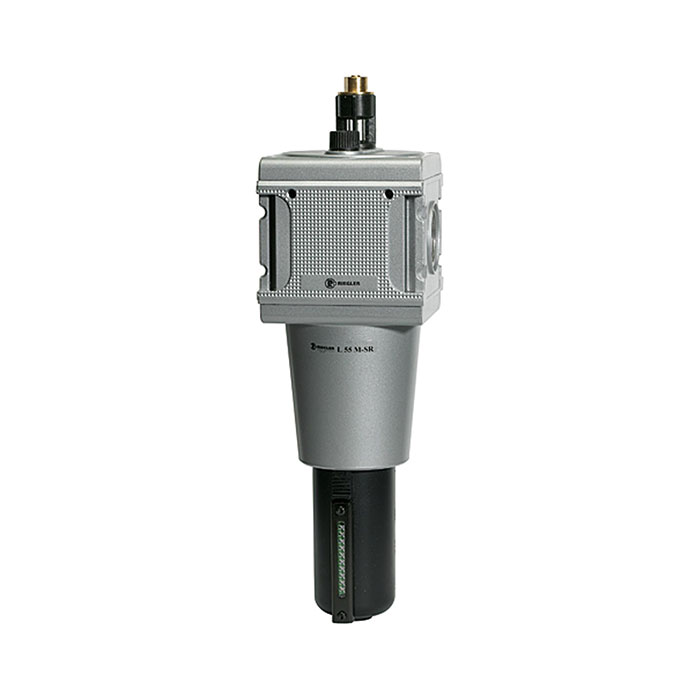

RIEGLER Mist oiler »multifix«, with metal container, Size 5, G 1
Type number: L 55 M-SR
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Mist lubricator "multifix" made of aluminum, for compressed air treatment, G 1 - type L 55 M-SR
The RIEGLER mist lubricator "multifix", with metal container, sight tube, BG 5, G 1 doses precise quantities of oil into the compressed air flow and automatically lubricates pneumatic consumers. The housing is made of aluminum with NBR seals. The maximum inlet pressure is 20 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1 - suitable for common industry standards. The flow rate is 19000 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Metal container with sight tube. Automatic lubrication extends the service life of moving parts.
Field of application
Typical areas of application: Lubrication of pneumatic cylinders, valves and pneumatic tools.
| Inlet pressure max. | 20 bar |
| Housing | Aluminum |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Metal container with sight tube |
| Dropper attachment | Zinc-glass-NBR |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1 |
| Flow rate | 19000 l/min |
| DN | 25 |
| BG | 5 |
| A | 100 mm |
| B | 322.9 mm |
| C | 82.7 mm |
| D | 240.2 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100561] RIEGLER Mist oiler »multifix«, with metal container, Size 1, G 1/4](/web/image/product.template/139996/image_128/%5B100561%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20with%20metal%20container%2C%20Size%201%2C%20G%201-4?unique=ef8757c)
|
Type number: L 11 M-SR |
57.16 € | |

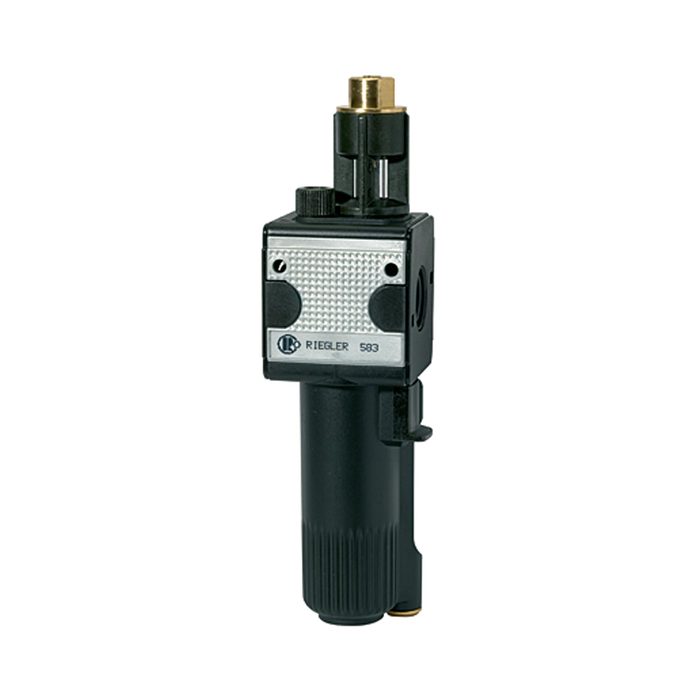

![[100562] RIEGLER Mist oiler »multifix«, with metal container, Size 1, G 3/8](/web/image/product.template/139997/image_128/%5B100562%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20with%20metal%20container%2C%20Size%201%2C%20G%203-8?unique=0be0bf5)
|
Type number: L 12 M-SR |
57.16 € | |

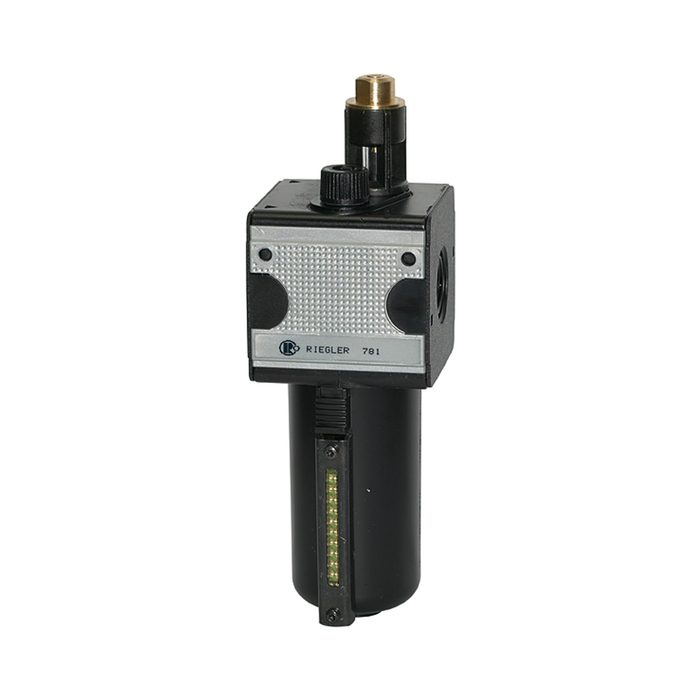

![[100563] RIEGLER Mist oiler »multifix«, with metal container, Size 3, G 1/2](/web/image/product.template/139998/image_128/%5B100563%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20with%20metal%20container%2C%20Size%203%2C%20G%201-2?unique=012f9f0)
|
Type number: L 33 M-SR |
72.98 € | |
![[100564] RIEGLER Mist oiler »multifix«, with metal container, Size 3, G 3/4](/web/image/product.template/139999/image_128/%5B100564%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20with%20metal%20container%2C%20Size%203%2C%20G%203-4?unique=d22e819)
|
Type number: L 34 M-SR |
72.98 € | |

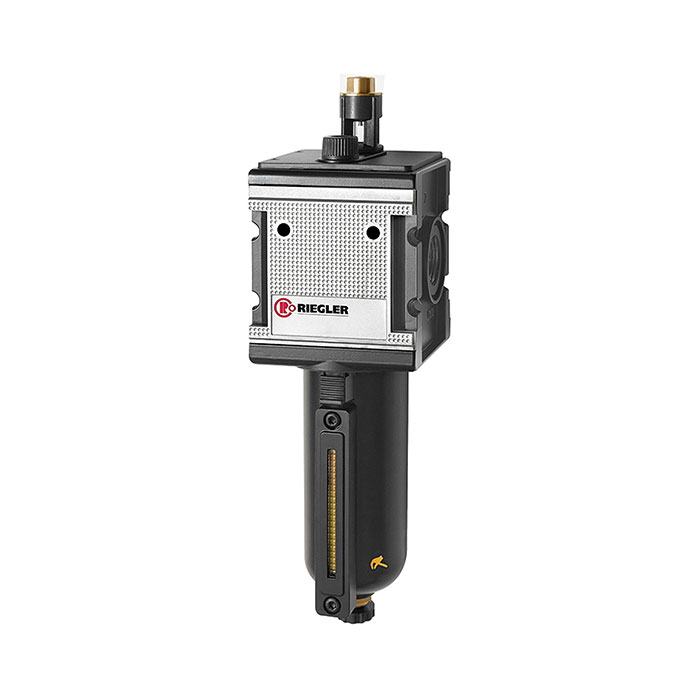

![[133122] RIEGLER Mist oiler »multifix«, with metal container, Size 4, G 1](/web/image/product.template/202772/image_128/%5B133122%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20with%20metal%20container%2C%20Size%204%2C%20G%201?unique=eda04a7)
|
Type number: L 45 M-SR |
136.95 € | |
![[133121] RIEGLER Mist oiler »multifix«, with metal container, Size 4, G 3/4](/web/image/product.template/202771/image_128/%5B133121%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20with%20metal%20container%2C%20Size%204%2C%20G%203-4?unique=4846ec4)
|
Type number: L 44 M-SR |
136.95 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

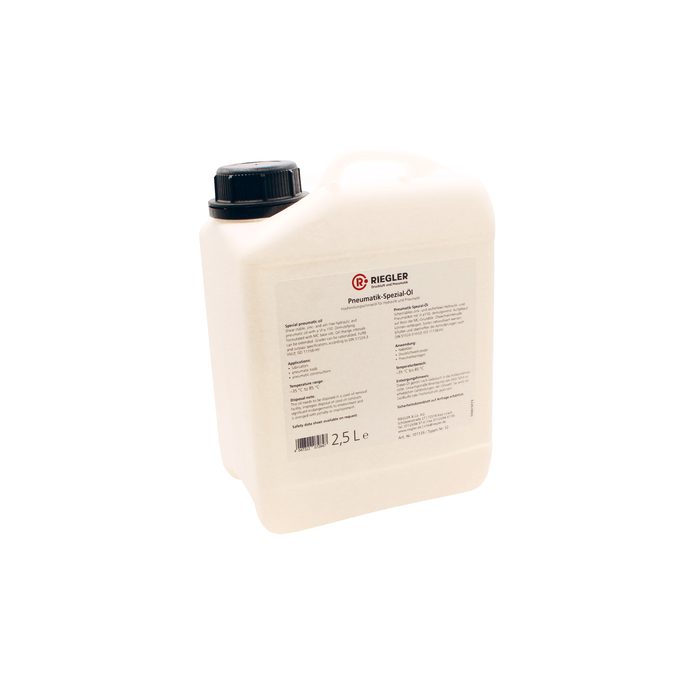

![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=30f0c8f)
|
Type number: 32 |
34.09 € | |

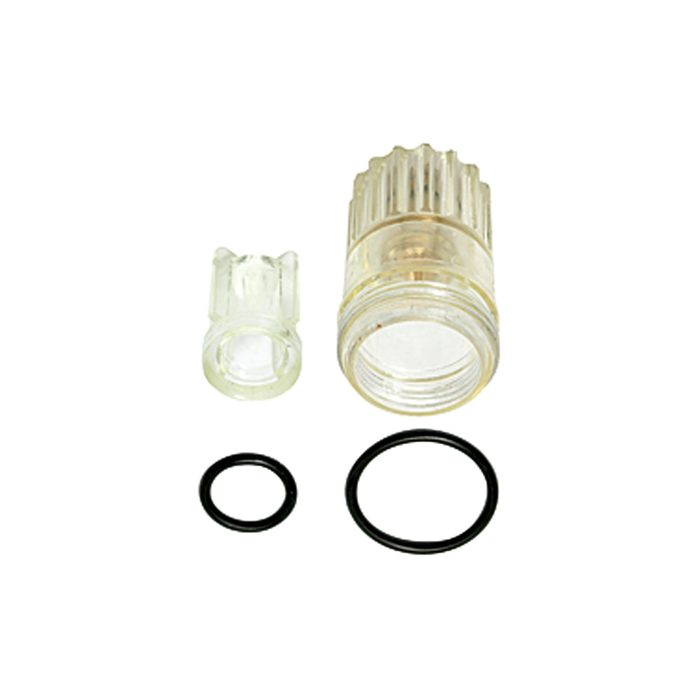

![[100392] RIEGLER Drip cap polyamide PA, Thread M24x1.5](/web/image/product.template/139826/image_128/%5B100392%5D%20RIEGLER%20Drip%20cap%20polyamide%20PA%2C%20Thread%20M24x1.5?unique=ad082af)
|
Type number: 1233.7.990 |
9.48 € | |
![[100445] RIEGLER Mounting bracket with 2 screws, for »multifix«, Size 5, G 1](/web/image/product.template/139879/image_128/%5B100445%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%205%2C%20G%201?unique=d9a3088)
|
Type number: ZW 55 |
13.53 € | |
![[100446] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139880/image_128/%5B100446%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=49baa0d)
|
Type number: KP 55 |
7.39 € | |

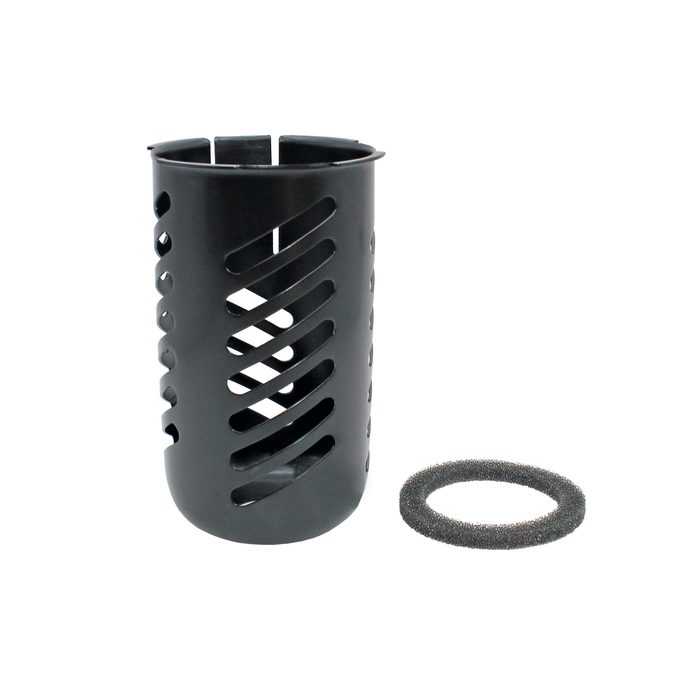

![[100506] RIEGLER Protective cage, for »multifix«, Size 3 and Size 5](/web/image/product.template/139941/image_128/%5B100506%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203%20and%20Size%205?unique=6f35f21)
|
Type number: SK 33 |
10.91 € | |

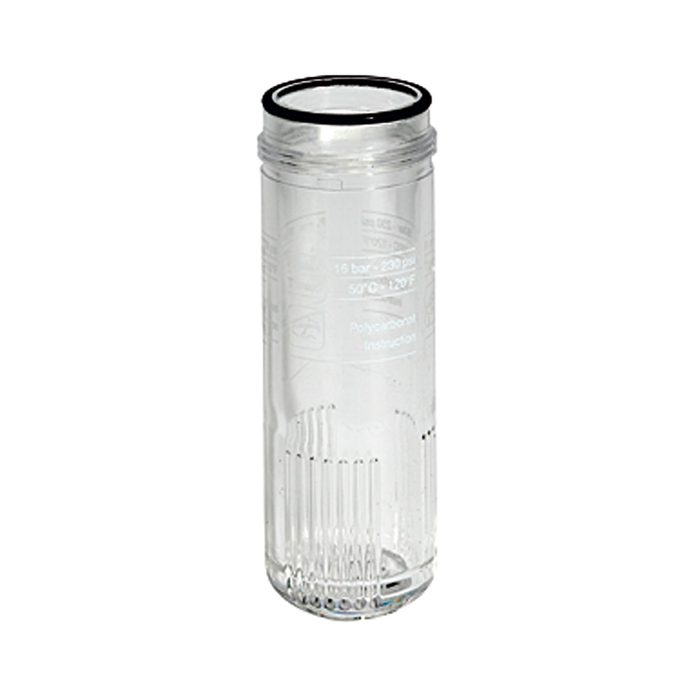

![[100548] RIEGLER Polycarbonate container, incl. O-ring, for »multifix«, Size 3+5](/web/image/product.template/139983/image_128/%5B100548%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203%2B5?unique=385ba76)
|
Type number: KS 33 N |
11.90 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100393] RIEGLER Drip cap metal](/web/image/product.template/139827/image_128/%5B100393%5D%20RIEGLER%20Drip%20cap%20metal?unique=9eb7c40)
|
Type number: 1233.7.909 |
18.71 € | |

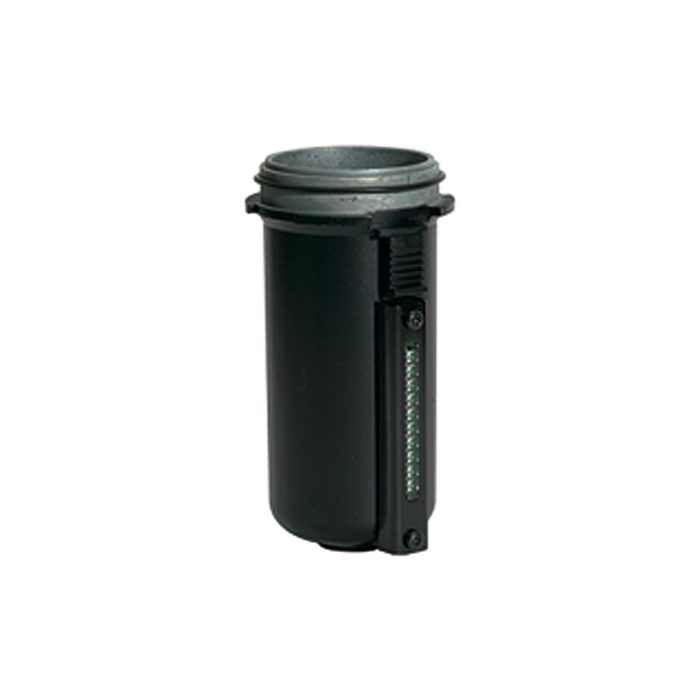

![[100549] RIEGLER Metal container with viewing tube, incl. O-ring, for »multifix«](/web/image/product.template/139984/image_128/%5B100549%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring%2C%20for%20%C2%BBmultifix%C2%AB?unique=e6cab4f)
|
