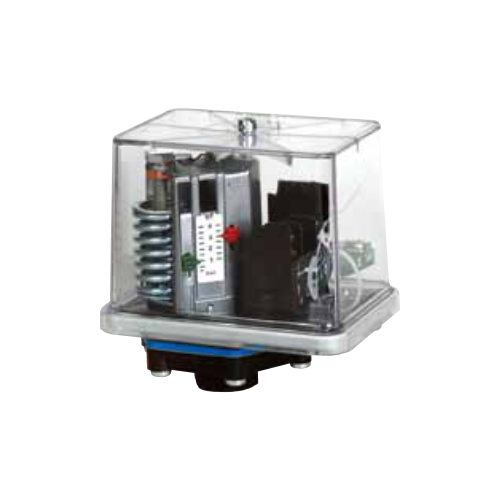

TIVAL Pressure switch FF 4-16 DAY 1 - 16 bar 3/8" polyamide
max. operating pressure 20 bar
Upper switching point: adjustable 1 - 16 bar
Lower switching point: adjustable 0.4 - 15 bar
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
TIVAL pressure switch FF 4-16 DAY 1010082
max. operating pressure 20 bar
with Perbunan diaphragm
plastic pressure connection for e.g. demineralized water
pressure connection: Y (G 3/8" female thread DIN ISO 228/I), polyamide
with easy-to-read scale for simple adjustment
large connection chamber
high repeat accuracy
VDE 0660, IEC 337-1, IEC 553-1
For further information, see Technical data
For choke, screw connections and hoods, see "Accessories"
| Upper switching point adjustable (bar) | 1 ... 16 |
| Lower switching point adjustable (bar) | 0,4 ... 15 |
| small pressure difference (bar) | 0,6 1 |
| Max. Operating pressure (bar) | 20 |
| Max. Test pressure (bar) | 24 |
| Factory setting (bar) | 4 / 12 |
| Pressure connection | G 3/8" polyamide |
| Model range - Pressure switch | FF 4 / DAY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

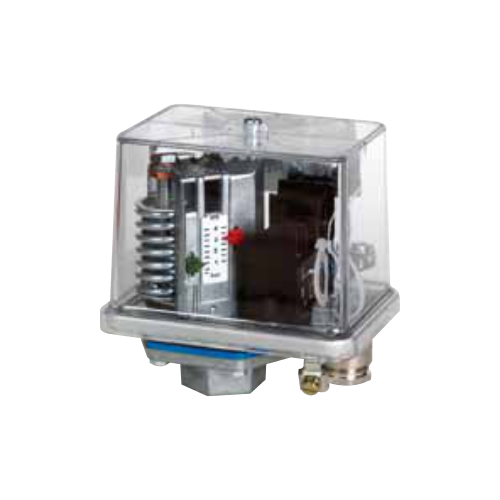

![[1030136] TIVAL Pressure switch FF 4-16 AB DAH](/web/image/product.template/149344/image_128/%5B1030136%5D%20TIVAL%20Pressure%20switch%20FF%204-16%20AB%20DAH?unique=bc6b574)
|
max. operating pressure 36 bar |
270.27 € | |

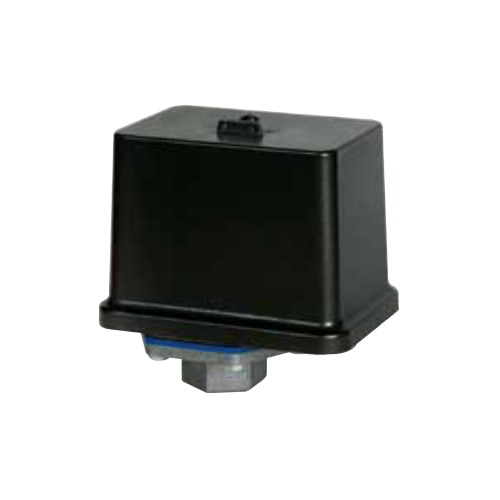

![[1030145] TIVAL Pressure switch FF 4-16 AC DAH 1 - 16 bar 3/8" silumin](/web/image/product.template/149338/image_128/%5B1030145%5D%20TIVAL%20Pressure%20switch%20FF%204-16%20AC%20DAH%201%20-%2016%20bar%203-8%22%20silumin?unique=5c29b67)
|
max. operating pressure 36 bar |
316.25 € | |
![[1010081] TIVAL Pressure switch FF 4-16 DAH 1 - 16 bar 3/8" silumin](/web/image/product.template/149297/image_128/%5B1010081%5D%20TIVAL%20Pressure%20switch%20FF%204-16%20DAH%201%20-%2016%20bar%203-8%22%20silumin?unique=4c6c5c4)
|
max. operating pressure 36 bar |
110.15 € | |
![[1010102] TIVAL pressure switch FF 4-16 DAH G 1 - 16 bar 3/8" silumin, gold-plated contacts Contacts](/web/image/product.template/149315/image_128/%5B1010102%5D%20TIVAL%20pressure%20switch%20FF%204-16%20DAH%20G%201%20-%2016%20bar%203-8%22%20silumin%2C%20gold-plated%20contacts%20Contacts?unique=812a86c)
|

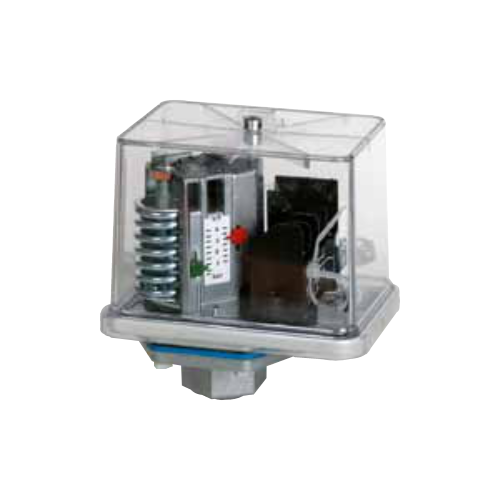

[1010102] TIVAL pressure switch FF 4-16 DAH G 1 - 16 bar 3/8" silumin, gold-plated contacts Contacts
max. operating pressure 36 bar |
132.90 € | |

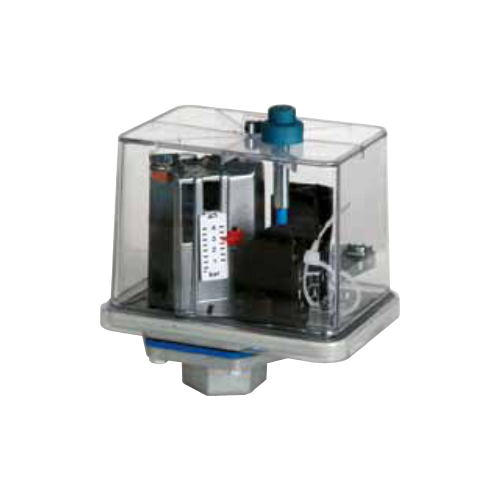

![[1010110] TIVAL Pressure switch FF 4-16 DRH 1 - 16 bar 3/8" silumin, Handreset max.](/web/image/product.template/149314/image_128/%5B1010110%5D%20TIVAL%20Pressure%20switch%20FF%204-16%20DRH%201%20-%2016%20bar%203-8%22%20silumin%2C%20Handreset%20max.?unique=693a45f)
|
max. operating pressure 30 bar |
134.90 € | |

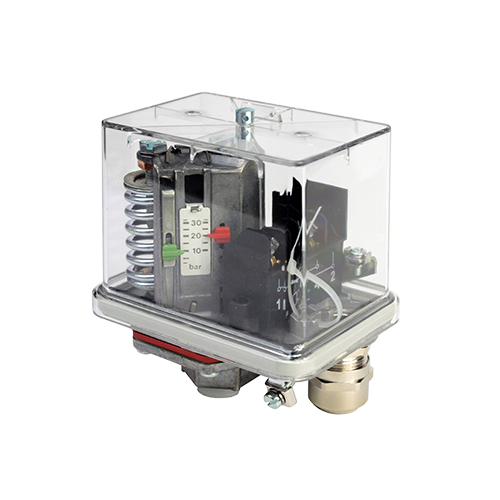

![[1010117] TIVAL Pressure switch FF 4-16 GL DAH 0 - 16 bar 3/8" Silumin](/web/image/product.template/149316/image_128/%5B1010117%5D%20TIVAL%20Pressure%20switch%20FF%204-16%20GL%20DAH%200%20-%2016%20bar%203-8%22%20Silumin?unique=5263f2b)
|
max. operating pressure 36 bar |
141.75 € | |

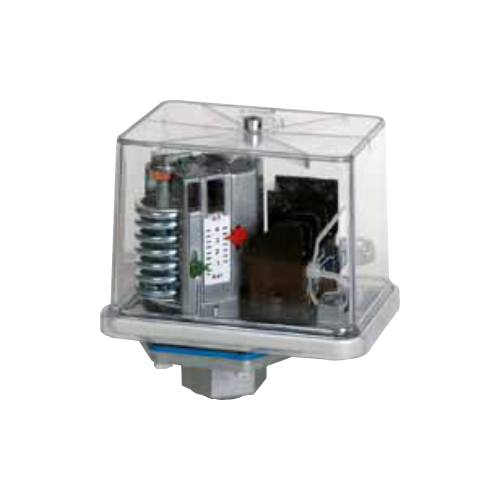

![[1020067] TIVAL Pressure switch FF 4-16 VdS DAI 1 - 16 bar](/web/image/product.template/149321/image_128/%5B1020067%5D%20TIVAL%20Pressure%20switch%20FF%204-16%20VdS%20DAI%201%20-%2016%20bar?unique=df5f8cd)
|
max. operating pressure 36 bar |
126.81 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[1011001] TIVAL Cover for Pressure switch FF 4](/web/image/product.template/149371/image_128/%5B1011001%5D%20TIVAL%20Cover%20for%20Pressure%20switch%20FF%204?unique=89d8443)
|
TIVAL hood FF4 |
29.87 € | |
![[1011002] TIVAL Throttle for FF4-2 up to 32 bar](/web/image/product.template/149318/image_128/%5B1011002%5D%20TIVAL%20Throttle%20for%20FF4-2%20up%20to%2032%20bar?unique=43f43f4)
|
TIVAL throttle FF4-2....32 |
4.19 € | |
![[1011003] TIVAL Throttle for series FF4-60 up to 250](/web/image/product.template/149367/image_128/%5B1011003%5D%20TIVAL%20Throttle%20for%20series%20FF4-60%20up%20to%20250?unique=89d8443)
|
TIVAL throttle FF4-12....250 |
10.35 € | |
![[1011004] TIVAL Fitting FF 4 490 M 20 13](/web/image/product.template/149369/image_128/%5B1011004%5D%20TIVAL%20Fitting%20FF%204%20490%20M%2020%2013?unique=89d8443)
|
TIVAL screw connection M 20 for protection class IP 65 |
5.00 € | |
![[1011007] TIVAL Nut FF 4 490 M 20](/web/image/product.template/149370/image_128/%5B1011007%5D%20TIVAL%20Nut%20FF%204%20490%20M%2020?unique=89d8443)
|
TIVAL nut M 20 for protection class IP 65 |
2.26 € | |
![[1071004] TIVAL Manometer screw connection H 124 - 114 steel, G 3/8" - G 1/2"](/web/image/product.template/149368/image_128/%5B1071004%5D%20TIVAL%20Manometer%20screw%20connection%20H%20124%20-%20114%20steel%2C%20G%203-8%22%20-%20G%201-2%22?unique=89d8443)
|
TIVAL screw connection H 124-114 |
25.47 € | |
