TIVAL Pressure switch FF 4-16 DAH 1 - 16 bar 3/8" silumin
max. operating pressure 36 bar
Upper switching point: adjustable 1 - 16 bar
Lower switching point: adjustable 0.4 - 15 bar
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
FF4-16 DAH pressure switch 1 - 16 bar - for oil, water & air | Art. 1010081
The TIVAL Pressure switch with Perbunan diaphragm combines reliability and accuracy for industrial pressure monitoring. The upper switching point is adjustable from 1 ... 16, the lower switching point is adjustable from 0.4 ... 15. Connection: G 3/8" Silumin - robust design in matching material variant. Application range: Oil, water & air - with proven long-term stability. max. operating pressure: 36 bar, medium temperature: up to +70°C. Standards & approvals: VDE 0660, IEC 337-1, IEC 553-1. All settings are clearly visible via the transparent polycarbonate cover. Chokes and cable glands are available as accessories.
| Upper switching point adjustable (bar) | 1 ... 16 |
| Lower switching point adjustable (bar) | 0,4 ... 15 |
| small pressure difference (bar) | 0,6 1 |
| Max. Operating pressure (bar) | 36 |
| Max. Test pressure (bar) | 48 |
| Factory setting (bar) | 4 / 12 |
| Pressure connection | G 3/8" Silumin |
| Model range - Pressure switch | FF 4 / DAH(G) |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[1030136] TIVAL Pressure switch FF 4-16 AB DAH](/web/image/product.template/149344/image_128/%5B1030136%5D%20TIVAL%20Pressure%20switch%20FF%204-16%20AB%20DAH?unique=d1dae89)
|
max. operating pressure 36 bar |
270.27 € | |

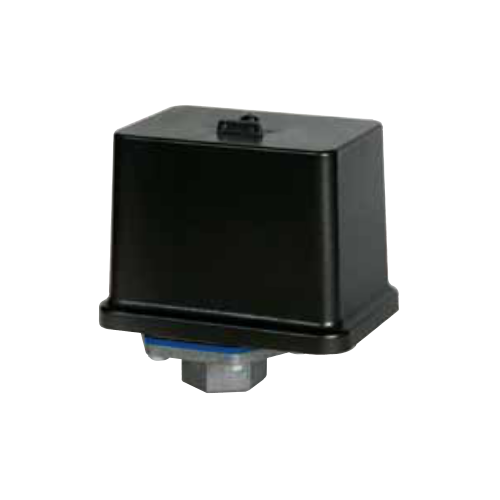

![[1030145] TIVAL Pressure switch FF 4-16 AC DAH 1 - 16 bar 3/8" silumin](/web/image/product.template/149338/image_128/%5B1030145%5D%20TIVAL%20Pressure%20switch%20FF%204-16%20AC%20DAH%201%20-%2016%20bar%203-8%22%20silumin?unique=6c9d468)
|
max. operating pressure 36 bar |
316.25 € | |

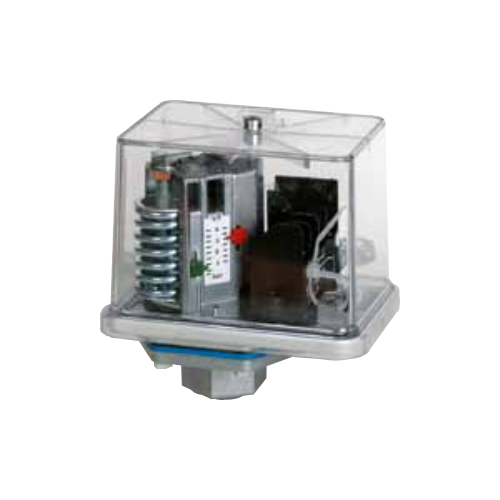

![[1010102] TIVAL pressure switch FF 4-16 DAH G 1 - 16 bar 3/8" silumin, gold-plated contacts Contacts](/web/image/product.template/149315/image_128/%5B1010102%5D%20TIVAL%20pressure%20switch%20FF%204-16%20DAH%20G%201%20-%2016%20bar%203-8%22%20silumin%2C%20gold-plated%20contacts%20Contacts?unique=061620d)
|
[1010102] TIVAL pressure switch FF 4-16 DAH G 1 - 16 bar 3/8" silumin, gold-plated contacts Contacts
max. operating pressure 36 bar |
132.90 € | |

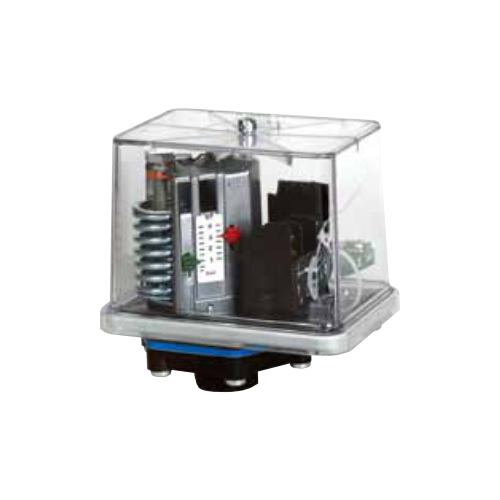

![[1010082] TIVAL Pressure switch FF 4-16 DAY 1 - 16 bar 3/8" polyamide](/web/image/product.template/149353/image_128/%5B1010082%5D%20TIVAL%20Pressure%20switch%20FF%204-16%20DAY%201%20-%2016%20bar%203-8%22%20polyamide?unique=99dfb99)
|
max. operating pressure 20 bar |
110.15 € | |

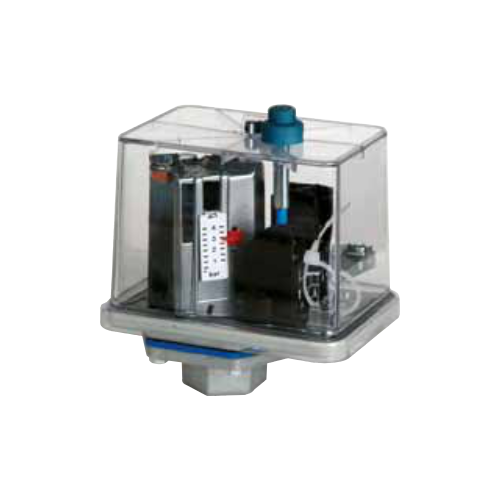

![[1010110] TIVAL Pressure switch FF 4-16 DRH 1 - 16 bar 3/8" silumin, Handreset max.](/web/image/product.template/149314/image_128/%5B1010110%5D%20TIVAL%20Pressure%20switch%20FF%204-16%20DRH%201%20-%2016%20bar%203-8%22%20silumin%2C%20Handreset%20max.?unique=a1979ef)
|
max. operating pressure 30 bar |
134.90 € | |

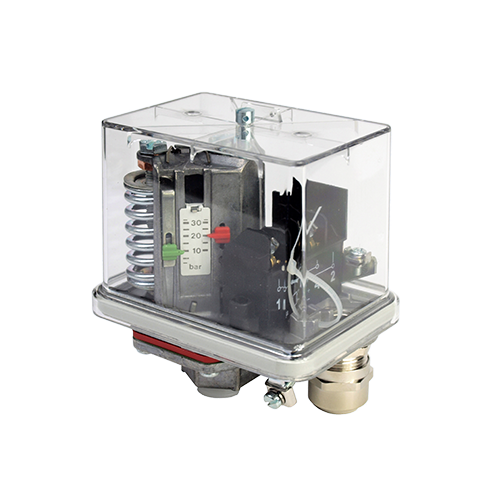

![[1010117] TIVAL Pressure switch FF 4-16 GL DAH 0 - 16 bar 3/8" Silumin](/web/image/product.template/149316/image_128/%5B1010117%5D%20TIVAL%20Pressure%20switch%20FF%204-16%20GL%20DAH%200%20-%2016%20bar%203-8%22%20Silumin?unique=362e240)
|
max. operating pressure 36 bar |
141.75 € | |

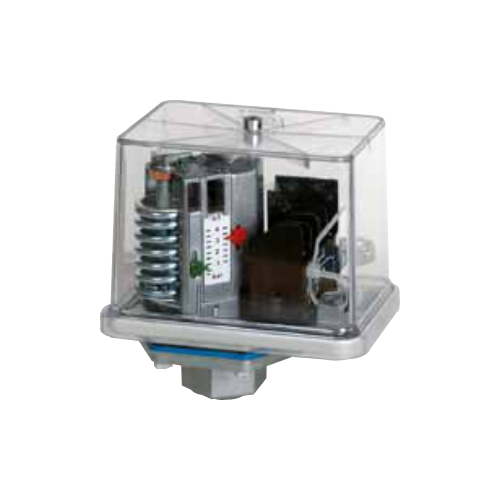

![[1020067] TIVAL Pressure switch FF 4-16 VdS DAI 1 - 16 bar](/web/image/product.template/149321/image_128/%5B1020067%5D%20TIVAL%20Pressure%20switch%20FF%204-16%20VdS%20DAI%201%20-%2016%20bar?unique=87ff29c)
|
