RIEGLER Mist oiler »Standard« with Metal container, Size 2, G 3/8
Type number: 750 M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Mist lubricator "Standard" made of die-cast zinc, painted silver, for compressed air treatment, G 3/8 - type 750 M
The RIEGLER mist lubricator "Standard", with metal container, BG 2, G 3/8 doses precise quantities of oil into the compressed air flow and automatically lubricates pneumatic consumers. The housing is made of die-cast zinc, painted silver with NBR seals. The maximum inlet pressure is 25 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 3/8 - suitable for common industry standards. The flow rate is 2400 l/min (at P2 = 6 bar and pressure drop Δp = 1 bar). Tank made of metal container. Automatic lubrication extends the service life of moving parts.
Field of application
Typical areas of application: Lubrication of pneumatic cylinders, valves and pneumatic tools.
| Inlet pressure max. | 25 bar |
| Housing | Die-cast zinc, painted silver |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Metal container |
| Dropper attachment | Zinc-glass-NBR |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 3/8 |
| Flow rate | 2400 l/min |
| DN | 10 |
| BG | 2 |
| A | 70 mm |
| C | 51 mm |
| D | 145 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101030] RIEGLER Mist oiler »Standard« with Metal container, Size 1, G 1/4](/web/image/product.template/140466/image_128/%5B101030%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%20with%20Metal%20container%2C%20Size%201%2C%20G%201-4?unique=c3dc316)
|
Type number: 745 M |
57.16 € | |

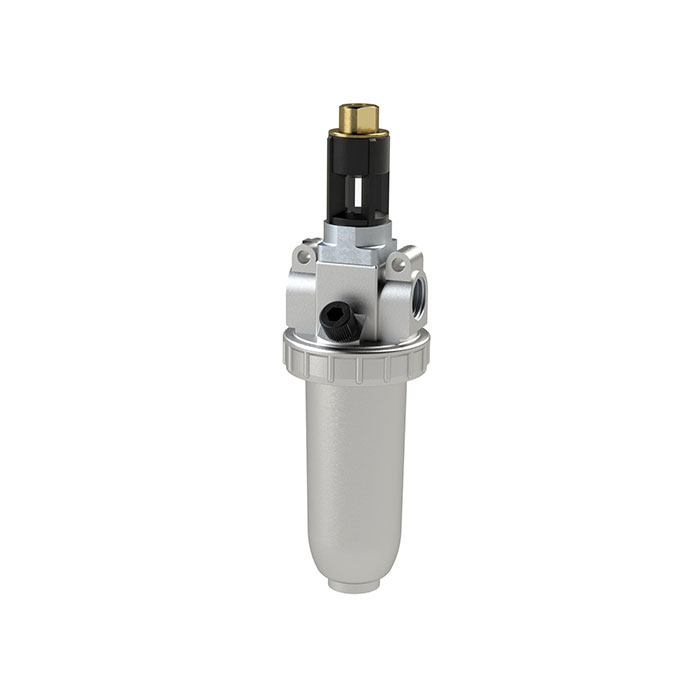

![[101031] RIEGLER Mist oiler »Standard« with Metal container, Size 1, G 3/8](/web/image/product.template/140467/image_128/%5B101031%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%20with%20Metal%20container%2C%20Size%201%2C%20G%203-8?unique=cf00f41)
|
Type number: 748 M |
57.16 € | |
![[101035] RIEGLER Mist oiler »Standard« with Metal container, Size 3, G 1](/web/image/product.template/140471/image_128/%5B101035%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%20with%20Metal%20container%2C%20Size%203%2C%20G%201?unique=ee72d5e)
|
Type number: 762 M |
113.43 € | |
![[101033] RIEGLER Mist oiler »Standard« with Metal container, Size 3, G 1/2](/web/image/product.template/140469/image_128/%5B101033%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%20with%20Metal%20container%2C%20Size%203%2C%20G%201-2?unique=3ad078d)
|
Type number: 760 M |
75.86 € | |
![[101034] RIEGLER Mist oiler »Standard« with Metal container, Size 3, G 3/4](/web/image/product.template/140470/image_128/%5B101034%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%20with%20Metal%20container%2C%20Size%203%2C%20G%203-4?unique=061e23f)
|
Type number: 761 M |
113.43 € | |

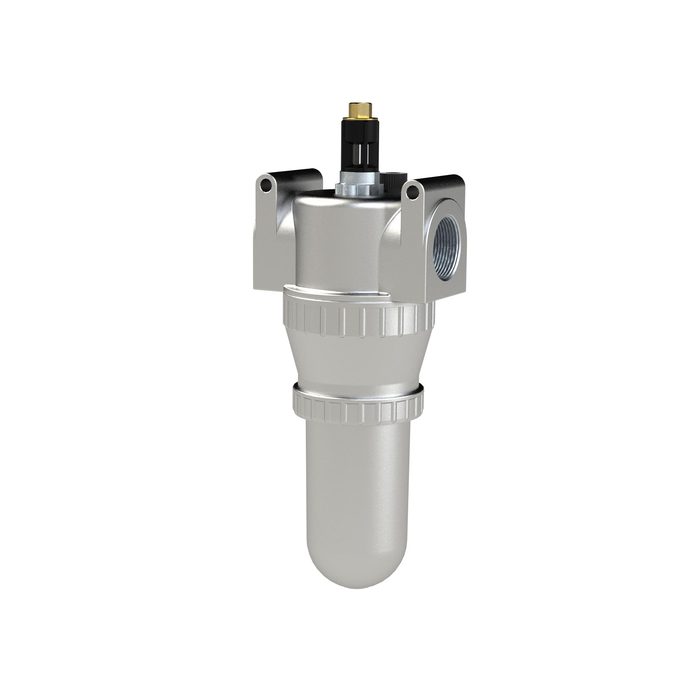

![[101037] RIEGLER Mist oiler »Standard« with Metal container, Size 4, G 1 1/2](/web/image/product.template/140473/image_128/%5B101037%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%20with%20Metal%20container%2C%20Size%204%2C%20G%201%201-2?unique=a205c8f)
|
Type number: 764 M |
208.29 € | |
![[101036] RIEGLER Mist oiler »Standard« with Metal container, Size 4, G 1 1/4](/web/image/product.template/140472/image_128/%5B101036%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%20with%20Metal%20container%2C%20Size%204%2C%20G%201%201-4?unique=cbcfdce)
|
Type number: 763 M |
208.29 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=36a168c)
|
Type number: 32 |
34.09 € | |
![[100794] RIEGLER Drip cap polycarbonate](/web/image/product.template/140230/image_128/%5B100794%5D%20RIEGLER%20Drip%20cap%20polycarbonate?unique=5133233)
|
Type number: 760.7.990 |
7.03 € | |
![[100944] RIEGLER Protective cage, for series »Standard«, Size 2, G 3/8](/web/image/product.template/140380/image_128/%5B100944%5D%20RIEGLER%20Protective%20cage%2C%20for%20series%20%C2%BBStandard%C2%AB%2C%20Size%202%2C%20G%203-8?unique=404b388)
|
Type number: SK 02 |
20.37 € | |
![[100982] RIEGLER Mounting bracket with 2 screws](/web/image/product.template/140418/image_128/%5B100982%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws?unique=4311717)
|
Type number: H 801 |
4.80 € | |

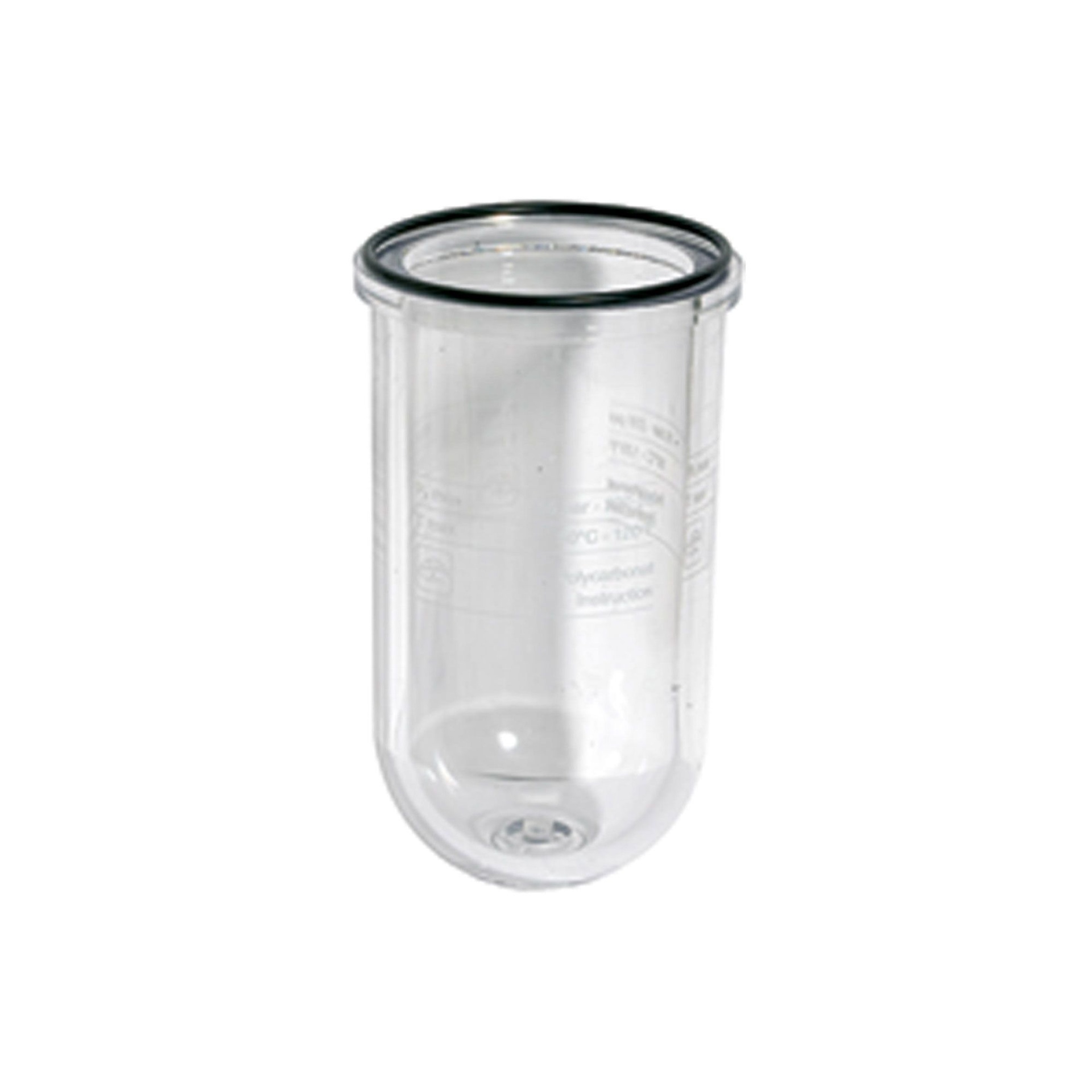

![[101042] RIEGLER PC container, incl. O-ring, for mist oiler »Standard«, Size 2](/web/image/product.template/140478/image_128/%5B101042%5D%20RIEGLER%20PC%20container%2C%20incl.%20O-ring%2C%20for%20mist%20oiler%20%C2%BBStandard%C2%AB%2C%20Size%202?unique=4152cd3)
|
Type number: 740/03 |
11.71 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100796] RIEGLER Adapter for mounting metal drip cap](/web/image/product.template/140232/image_128/%5B100796%5D%20RIEGLER%20Adapter%20for%20mounting%20metal%20drip%20cap?unique=f88c8dc)
|
Type number: 760.7.1135 |
10.95 € | |
![[100795] RIEGLER Drip cap metal](/web/image/product.template/140231/image_128/%5B100795%5D%20RIEGLER%20Drip%20cap%20metal?unique=b62e209)
|
Type number: 760.7.992 |
31.57 € | |

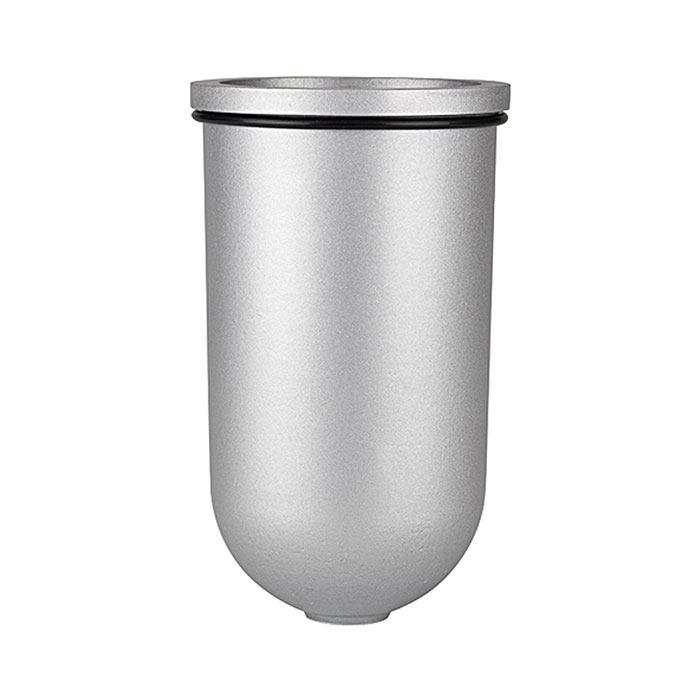

![[101041] RIEGLER Metal container, incl. O-ring, for mist oiler »Standard«, Size 2](/web/image/product.template/140477/image_128/%5B101041%5D%20RIEGLER%20Metal%20container%2C%20incl.%20O-ring%2C%20for%20mist%20oiler%20%C2%BBStandard%C2%AB%2C%20Size%202?unique=622bcdc)
|
