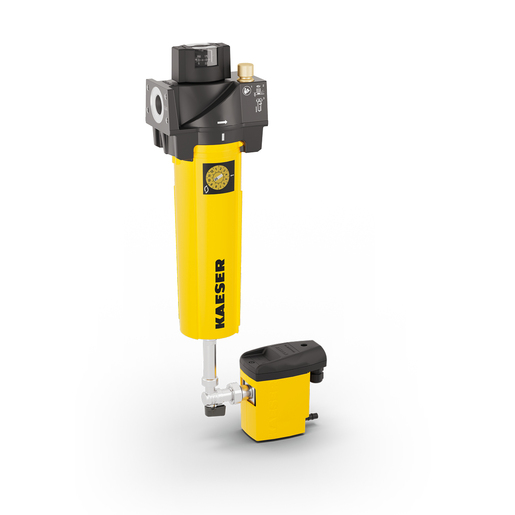

KAESER F9KC G 3/4 Cyclone Separator with ECO DRAIN 31

KAESER F9KC G 3/4 Cyclone Separator – Water Separator for Compressors up to 0.9 m³/min

The KAESER F9KC Cyclone Separator with a G 3/4 connection is an indispensable component of compressed air treatment as a water separator on the compressor. It removes condensate directly at the compressed air outlet, thereby ensuring trouble-free operation of downstream dryers and filters—for flow rates up to 0.9 m³/min at 2–16 bar operating pressure.

KAESER has optimized the airflow in the condensate separator using state-of-the-art flow simulation and measured it in accordance with ISO 12500-4. The maintenance-free centrifugal insert thus achieves a peak separation efficiency of up to 99%—stable across the entire performance range and with a pressure drop of less than 0.1 bar. The housing, made of seawater-resistant aluminum with a passivation coating, ensures maximum service life. The dimensions are 241 × 225 × 465 mm (W × D × H) with a weight of 4.1 kg.

Included in the scope of delivery is the electronically level-controlled condensate drain ECO-DRAIN 31 with a test button and alarm contact. Optional: Wall mount kit. For optimal compressed air quality, we recommend combining it with a Refrigeration Dryers – It prevents the reformation of condensation and pipe corrosion. In addition, a Compressed Air Filters For the highest purity classes according to ISO 8573.
