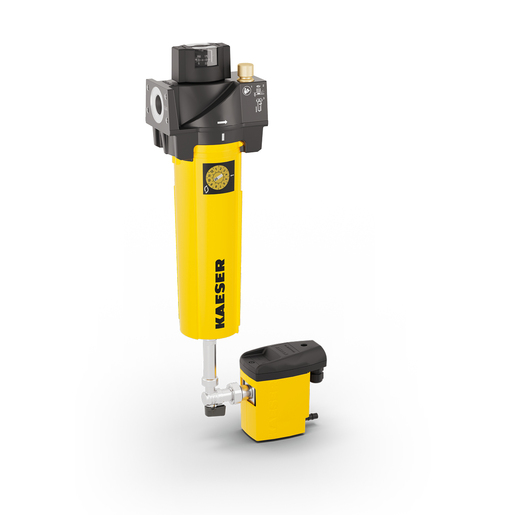

KAESER F26KC G 3/4 Cyclone Separator with ECO DRAIN 31

KAESER F26KC G 3/4 Cyclone Separator – Condensate separator up to 2.6 m³/min

The KAESER F26KC Cyclone Separator with a G 3/4 connection removes condensate from the compressor’s compressed air outlet particularly effectively. As a condensate separator for flow rates up to 2.6 m³/min, it reliably protects downstream refrigeration dryers and compressed air filters from liquid hammer—at an operating pressure of 2–16 bar and ambient temperatures of 3–50 °C.

The flow-optimized, maintenance-free swirl insert was calibrated in accordance with ISO 12500-4 and developed using state-of-the-art flow simulation. The water separator achieves a peak separation efficiency of up to 99% across the entire performance range—with a pressure drop of less than 0.1 bar. The robust housing made of seawater-resistant aluminum with an additional passivation layer makes the F26KC a true workhorse. Its dimensions are 241 × 225 × 515 mm (W × D × H) and it weighs 4.0 kg.

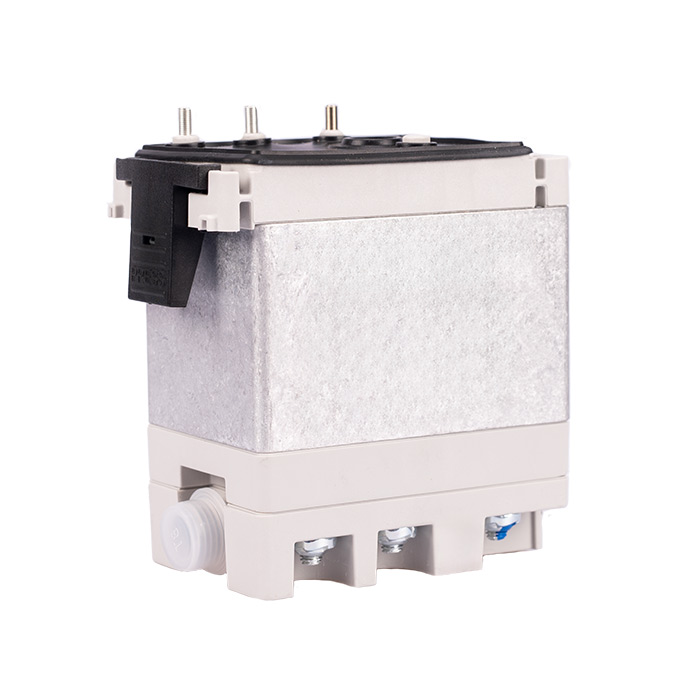

Comes standard with the electronically level-controlled condensate drain ECO-DRAIN 31 with test button and alarm contact. Options: wall mount kit, connection set, and silicone-free version. The ideal addition: a Refrigeration Dryers by KAESER – provides reliable protection against condensate reforming and pipe corrosion. For additional treatment stages, we recommend a Compressed Air Filters.
