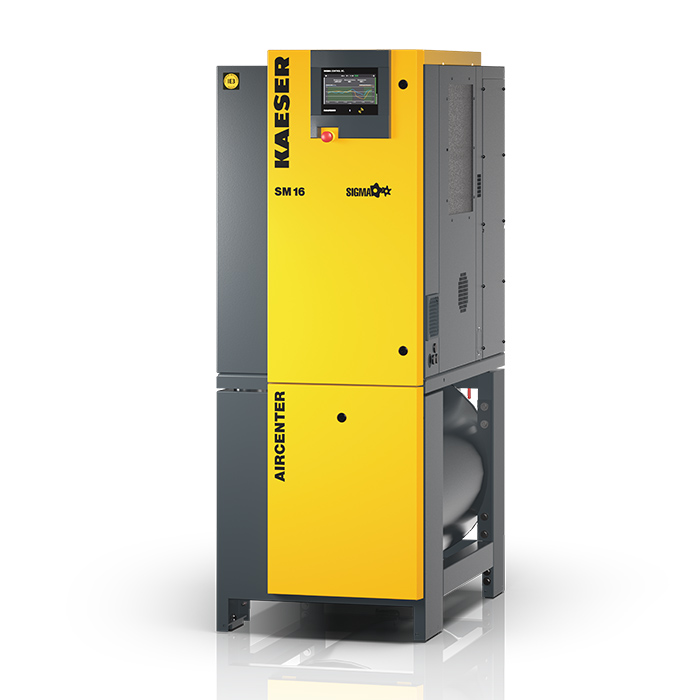

KAESER screw compressor Aircenter SM 16-11 SC3
Compact compressed air station with 1.35 m³/min at 10 bar (max. 11 bar) and 9 kW motor power - incl. refrigeration dryer, 270 l tank and new SC3 touch control.
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
KAESER AIRCENTER SM 10-8 bar - compact compressed air station with dryer and tank
The KAESER AIRCENTER SM series is a compact complete solution for professional use in workshops and industry. The AIRCENTER SM 10-8 model combines a screw compressor, refrigerant dryer and compressed air tank in a single unit - ideal when space is at a premium and a reliable compressed air supply is required.
Operation is via the modern Sigma Control 3 control unit with touchscreen and enables convenient monitoring of the most important operating states.
Suitable filters and oil/water separators for condensate treatment can be found in the accessories section. Further alternatives to this model can be found under Alternatives / Variants. Suitable compressor oil (fluid) as well as maintenance and spare parts can be found in the Spare parts section.
Technical data and documents are available for you to view and download under the respective tabs.
Note: This dryer series contains fluorinated greenhouse gas. All models contain the refrigerant R-513A (GWP 629).
| Max. Overpressure (bar) | 11 |
| Volume flow at overpressure (m³/min) | 1,35 |
| Rated power drive motor (kW) | 9 |
| Drive motor efficiency class | IE3 |
| Permissible pressure loss cooling channel | 20 |
| Max. usable warm air volume (m³/h) | 2100 |
| Max. usable heat output "warm air" (kW) | 11,1 |
| Required supply air opening (m2) | 0,35 |
| Drive motor protection class | IP55 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Full load current | 23 A |
| Fuse: Max current | 32 A |
| Cooling fluid filling quantity (litres) | 4 |
| Width (mm) | 630 |
| Depth (mm) | 1220 |
| Height (mm) | 1720 |
| Weight (kg) | 440 |
| Volume of compressed air tank (litres) | 270 |
| Compressed air connection | G 3/4 |
| Sound pressure level (dbA) | 66 |
| Refrigeration dryer power consumption (kW) | 0,49 |
| Refrigeration dryer pressure dew point (°C) | 3 |
| Refrigeration dryer pressure loss (bar) | 0,15 |
| Refrigerant | R-513A |
| Refrigerant charge (kg) | 0,39 |
| CO2 equivalent (tonnes) | 0,25 |
| Global warming potential GWP | 631 |
| Model range - Screw compressors | SM |
