KAESER Aircenter SX 6-11 SC3 screw compressor

Price:

10,335.75 €

KAESER Aircenter SX 6-8 SC3 screw compressor
KAESER Aircenter SX 6-8 SC3 screw compressor
10,335.75 € 10,335.75 €
KAESER Aircenter SX 8-8 SC3 screw compressor
KAESER Aircenter SX 8-8 SC3 screw compressor
10,950.02 € 10,950.02 €

KAESER Aircenter SX 6-11 SC3 screw compressor

https://www.filcom-technik.de/web/image/product.template/311921/image_1920?unique=7cfc604

Premium compressed air station for continuous industrial use: 0.49 m³/min (490 l/min) at 10 bar | 4 kW | Incl. refrigerant dryer, 200L tank and Sigma Control 3 M Touch. Industry standard in compact format.

10,335.75 € 10335.75 EUR 10,335.75 € VAT Included

14,975.00 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs

KAESER Kompressoren SE

KAESER Kompressoren SE

KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919


Product no. :

102424.01010

Category :

Complete Systems

Weight :

290.00 kg

Delivery area :

Germany

KAESER AIRCENTER SX 4-8 SC3: Endurance power in the industry standard

The AIRCENTER SX is the premium solution for small industrial operations. In contrast to the trade-oriented SXC series, the AIRCENTER is consistently designed for continuous industrial use and maximum service life. In a classic, high-quality metal housing, this station combines maximum efficiency with robust industrial technology. The modular design ensures optimum cooling and maximum reliability, even with high duty cycles and in multi-shift operation.

Premium technology for the highest demands:

  • Industrial components: Screw compressor with SIGMA PROFILE, refrigeration dryer and a 200-liter tank perfectly matched in one unit.
  • Efficiency: 3 kW motor power delivers a constant 0.46 m³/min (460 l/min) for your production facilities.
  • Sigma Control 3 M: The specialized industrial controller with touchscreen guarantees energy-optimized operation and precise monitoring.
  • Longevity: The housing design and cooling system are optimized for maximum process reliability under continuous load.

Recommended use: The first choice for manufacturing companies, CNC machining and laboratory applications that require the industry standard in a compact format.

Accessories & documentation: Suitable filters and oil/water separators can be found in the Accessories section. Further specifications can be found under Technical data. Operating instructions / brochures are available for download under Documents.

Note: This dryer series contains fluorinated greenhouse gas. All models contain the refrigerant R-513A (GWP 629).

Max. Overpressure (bar) 11
Volume flow at overpressure (m³/min) 0,48
Rated power drive motor (kW) 4
Drive motor efficiency class IE3
Permissible pressure loss cooling channel (Pa) 30
Max. usable warm air volume (m³/h) 1000
Max. usable heat output "warm air" (kW) 4,5
Required supply air opening (m2) 0,2
Drive motor protection class IP54
Electrical supply 400 V / 3 Ph / 50 Hz
Full load current 9 A
Fuse: Max current 16 A
Cooling fluid filling quantity (litres) 2,8
Width (mm) 590
Depth (mm) 1090
Height (mm) 1560
Weight (kg) 290
Volume of compressed air tank (litres) 200
Compressed air connection G 3/4
Sound pressure level (dbA) 61
Refrigeration dryer power consumption (kW) 0,18
Pressure dew point (°C) 3
Refrigeration dryer pressure loss (bar) 0,08
Refrigerant R-513A
Refrigerant charge (kg) 0,17
CO2 equivalent (tonnes) 0,11
Global warming potential GWP 631
Model range - Screw compressors SX | 2.2 - 5.5 kW | Industry
Refrigeration dryer option YES
KAESER Betriebsanleitung Aircenter SX
Download

Variants / Alternatives

Product Price

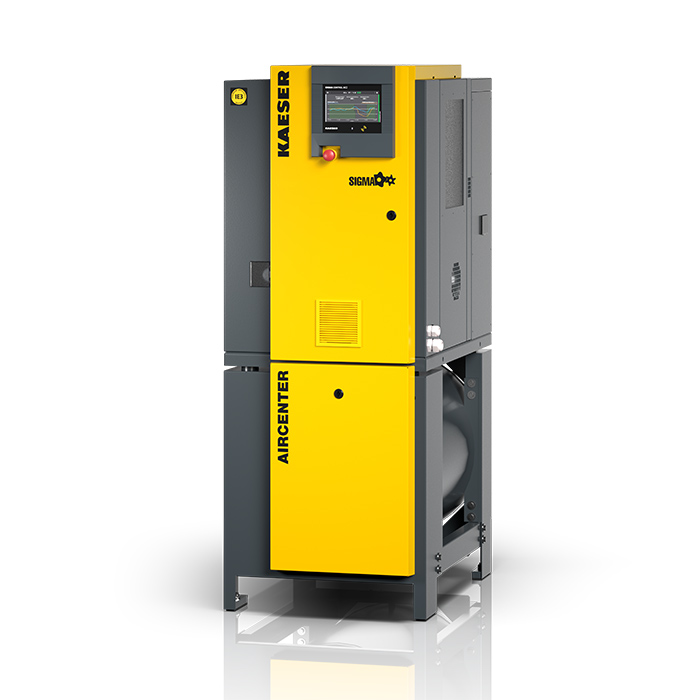

[102424.01000] KAESER Aircenter SX 6-8 SC3 screw compressor

Premium compressed air station for continuous industrial use: 0.60 m³/min (600 l/min) at 7.5 bar | 4 kW | Incl. refrigerant dryer, 200L tank and Sigma Control 3 M Touch. Industry standard in compact format.

10,335.75 €

Accessoires and suitable extensions

Product Price
[5.3390.0] KAESER Oil-water separator model Aquamat CF 3

The KAESER AQUAMAT CF 3 enables legally compliant condensate treatment up to 1.9 m³/min. Save up to 90 % on disposal costs thanks to efficient oil-water separation directly at the point of origin.

  • Performance: Max. 1.9 m³/min (climate zone 2).
  • Certification: DIBt-tested for legally compliant installation.
  • Efficiency: Saves approx. 90 % of disposal costs.
  • Technology: High-performance synthetic fiber filter (no activated carbon).
  • Maintenance: Simple, clean filter change & visual inspection.
505.75 €

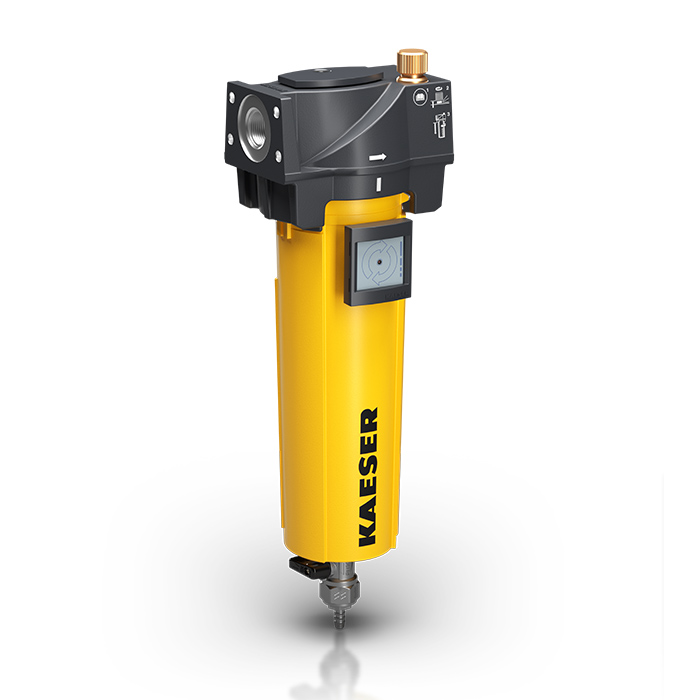

[102100.10300] KAESER Filter adsorption model F6KA G 3/4"

Volume flow: 0.60 m³/min

321.30 €
[102103.20341] KAESER Filter Extra model F6KE G 3/4", ECO-DRAIN 31F

Volume flow: 0.60 m³/min | Residual aerosol content at outlet: < 0.1 mg/m³

627.43 €

Maintenance, wear and spare parts

Product Price
[8.2474.01510] KAESER ECO-DRAIN 31/31F VARIO service unit

For condensate drain KAESER ECO-DRAIN 31/31F VARIO

211.82 €
[9.0920.10020] KAESER Sigma Fluid MOL, 3 ltr.

Original KAESER compressor oil for screw compressors

45.82 €
