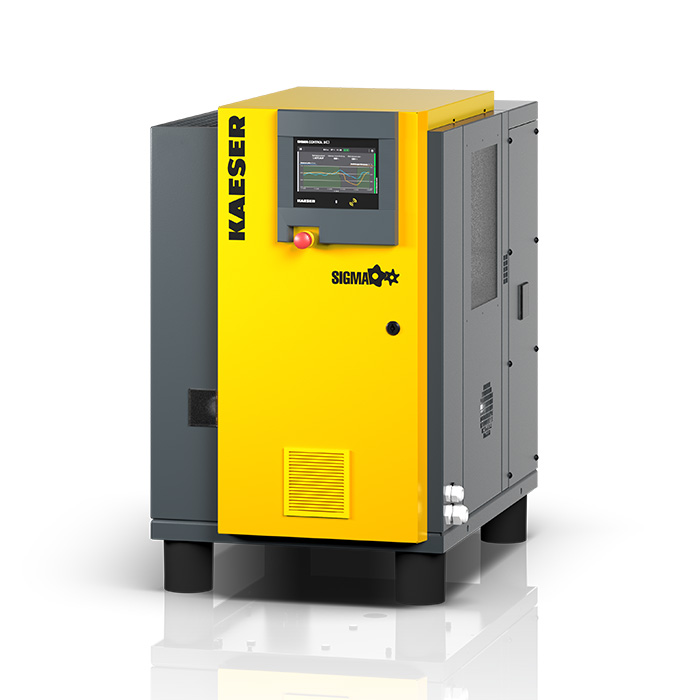

KAESER SX 8-8 T SC3 Screw Compressor

KAESER SX 8-8 T SC3: Screw compressor with refrigeration dryer, max. 8 bar

The KAESER The SX 8-8 T SC3 is a compact, oil-lubricated screw compressor with an integrated refrigeration dryer, 5.5 kW drive power (IE3), and a flow rate of 0.80 m³/min at a maximum operating pressure of 8 bar. The refrigeration dryer uses the refrigerant R-513A and produces a pressure dew point of +3 °C—ensuring that dry, condensate-free compressed air is reliably delivered to the consumer.

The highly efficient compressor block with SIGMA PROFIL and the IE3 motor ensures economical operation at a sound pressure level of just 64 dB(A). The SIGMA CONTROL 3 M touchscreen control system monitors the compressor and refrigeration dryer via the color display. The compact design, with a footprint of just 0.54 m², allows for use even in confined spaces.

Its compact dimensions of 590 × 915 × 970 mm (W × D × H), combined with a weight of 200 kg and a G 3/4 compressed air connection, make installation easy. The maintenance-friendly design, with easily accessible service components, reduces operating costs over the entire service life.

Recommended Use: Ideal for commercial businesses and workshops with moderate compressed air requirements and a need for dry compressed air—such as for painting, dental technology, or operating pneumatic tools.

Accessories & Documentation: You can find compatible compressed air filters, oil-water separators, and compressed air tanks in the Accessories section. All technical specifications, data sheets, and operating instructions are available for download in the respective tabs.

Note: The built-in refrigerant dryer contains a fluorinated greenhouse gas. Refrigerant R-513A (GWP 631).
