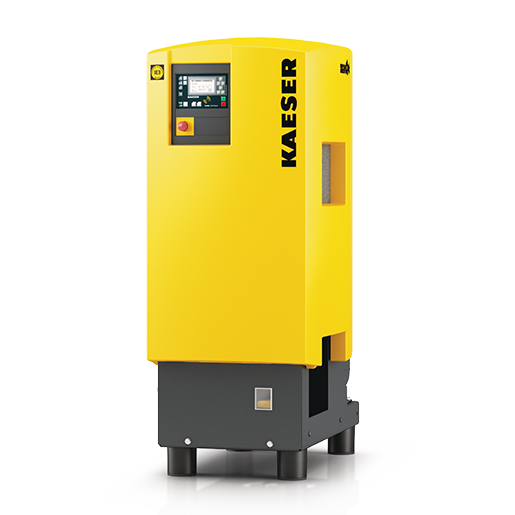

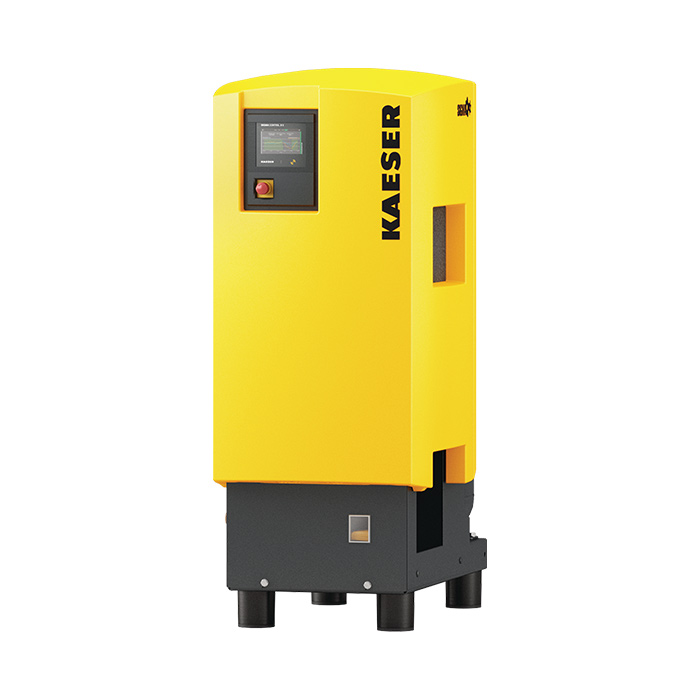

KAESER screw compressor SXC 8-11 SC3 incl. refrigeration dryer and receiver
Compact complete compressed air station with refrigeration dryer and 215 l tank. 0.67 m³/min | max. 11 bar | 5.5 kW | SIGMA CONTROL 3 S | 0.62 m² footprint
KAESER SXC 8-11 SC3: The compact compressed air station with max. 11 bar
The SXC series was developed by KAESER developed specifically for tough everyday use in trade workshops. The SXC 8-11 SC3 is the top model in the SXC series. With 5.5 kW motor power, this compressed air station achieves a volume flow of 0.67 m³/min (670 l/min) at 10 bar operating pressure and a maximum overpressure of max. 11 bar. Where conventional metal housings quickly become dented or scratched in confined workshops, the SXC impresses with a rotationally sintered, double-walled PE hood - virtually indestructible, corrosion-free and extremely sound-insulating. With a sound pressure level of just 69 dB(A), it is pleasantly quiet.
As a ready-to-use complete system, the SXC 8-11 combines a screw compressor with the highly efficient SIGMA PROFILE, the integrated CT 8 refrigeration dryer (pressure dew point +6 °C) and a 215-liter compressed air tank on a footprint of just 0.62 m². The IE3 premium efficiency motor with 5.5 kW rated power and the maintenance-free V-ribbed belt drive ensure energy-efficient and reliable operation. The Sigma Control 3 S touch control enables intuitive monitoring of all operating parameters and controls the efficient start-stop regulation. Installation is extremely simple: connect the power supply and compressed air line - done.
Recommended use: Ideal for automotive workshops, locksmiths and production plants that require increased operating pressure for compressed air tools, sandblasting or longer pipe runs.
Accessories & documentation: Suitable filters and oil/water separators can be found in the Accessories section. All technical data, data sheets and operating instructions are available for download in the respective tabs.
Note: This dryer series contains fluorinated greenhouse gas. All models contain the refrigerant R-513A (GWP 631).
Alternative: Do you need a solution for continuous industrial use? You can find the right counterpart from the KAESER Aircenter series below under "Alternative products".
| Max. Overpressure (bar) | 11 |
| Volume flow at overpressure (m³/min) | 0,67 |
| Rated power drive motor (kW) | 5,5 |
| Drive motor efficiency class | IE3 |
| Permissible pressure loss cooling channel (Pa) | 20 |
| Max. usable warm air volume (m³/h) | 950 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Full load current | 10 |
| Fuse: Max current | 16 |
| Width (mm) | 620 |
| Depth (mm) | 980 |
| Height (mm) | 1480 |
| Weight (kg) | 300 |
| Volume of compressed air tank (litres) | 215 |
| Compressed air connection | G 3/4 |
| Sound pressure level (dbA) | 69 |
| Refrigeration dryer power consumption (kW) | 0,28 |
| Refrigeration dryer pressure dew point (°C) | 6 |
| Refrigeration dryer pressure loss (bar) | 0,10 |
| Refrigerant | R-513A |
| Refrigerant charge (kg) | 0,24 |
| CO2 equivalent (tonnes) | 0,15 |
| Global warming potential GWP | 631 |
| Model range - Screw compressors | SXC | 2.2 - 5.5 kW | Trades |
| Refrigeration dryer option | YES |
| Volume flow at overpressure (m³/min) | 0,67 |
| Max. Overpressure (bar) | 11 |
| Rated power drive motor (kW) | 5,5 |
| Drive motor efficiency class | IE3 |
| Permissible pressure loss cooling channel (Pa) | 30 |
| Max. usable warm air volume (m³/h) | 1300 |
| Max. usable heat output "warm air" (kW) | 6 |
| Required supply air opening (m2) | 0,25 |
| Drive motor protection class | IP54 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Full load current | 12 A |
| Fuse: Max current | 16 A |
| Cooling fluid filling quantity (litres) | 2,8 |
| Width (mm) | 590 |
| Depth (mm) | 1090 |
| Height (mm) | 1560 |
| Weight (kg) | 300 |
| Volume of compressed air tank (litres) | 200 |
| Compressed air connection | G 3/4 |
| Sound pressure level (dbA) | 64 |
| Refrigeration dryer power consumption (kW) | 0,28 |
| Refrigeration dryer pressure dew point (°C) | 3 |
| Pressure loss (bar) | 0,10 |
| Refrigerant | R-513A |
| Refrigerant charge (kg) | 0,24 |
| CO2 equivalent (tonnes) | 0,15 |
| Global warming potential GWP | 631 |
| Model range - Screw compressors | SX | 2.2 - 5.5 kW | Industry |
| Refrigeration dryer option | YES |
| Volume flow at overpressure (m³/min) | 0,67 |
| Max. Overpressure (bar) | 11 |
| Rated power drive motor (kW) | 5,5 |
| Drive motor efficiency class | IE3 |
| Permissible pressure loss cooling channel (Pa) | 30 |
| Max. usable warm air volume (m³/h) | 1300 |
| Max. usable heat output "warm air" (kW) | 6 |
| Required supply air opening (m2) | 0,25 |
| Drive motor protection class | IP54 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Full load current | 12 A |
| Fuse: Max current | 16 A |
| Cooling fluid filling quantity (litres) | 2,8 |
| Width (mm) | 590 |
| Depth (mm) | 1090 |
| Height (mm) | 1560 |
| Weight (kg) | 300 |
| Volume of compressed air tank (litres) | 200 |
| Compressed air connection | G 3/4 |
| Sound pressure level (dbA) | 64 |
| Refrigeration dryer power consumption (kW) | 0,28 |
| Refrigeration dryer pressure dew point (°C) | 3 |
| Pressure loss (bar) | 0,10 |
| Refrigerant | R-513A |
| Refrigerant charge (kg) | 0,24 |
| CO2 equivalent (tonnes) | 0,15 |
| Global warming potential GWP | 631 |
| Model range - Screw compressors | SX | 2.2 - 5.5 kW | Industry |
| Refrigeration dryer option | YES |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[5.3390.0] KAESER Oil-water separator model Aquamat CF 3](/web/image/product.template/3688/image_128/%5B5.3390.0%5D%20KAESER%20Oil-water%20separator%20model%20Aquamat%20CF%203%20?unique=c434b24)
|
The KAESER AQUAMAT CF 3 enables legally compliant condensate treatment up to 1.9 m³/min. Save up to 90 % on disposal costs thanks to efficient oil-water separation directly at the point of origin.
|
505.75 € | |
![[102103.20341] KAESER Filter Extra model F6KE G 3/4", ECO-DRAIN 31F](/web/image/product.template/262256/image_128/%5B102103.20341%5D%20KAESER%20Filter%20Extra%20model%20F6KE%20G%203-4%22%2C%20ECO-DRAIN%2031F?unique=834e73e)
|
Volume flow: 0.60 m³/min | Residual aerosol content at outlet: < 0.1 mg/m³ |
627.43 € | |
![[8.1160.2] KAESER HD-Hose, 3/4x1000](/web/image/product.template/14217/image_128/%5B8.1160.2%5D%20KAESER%20HD-Hose%2C%203-4x1000%20%20?unique=bcbfce3)
|
KAESER hose line 1,000 mm HP hose, DL connection, G 3/4 for compressor EPC 550-2-350 St |
112.81 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[9.0920.10020] KAESER Sigma Fluid MOL, 3 ltr.](/web/image/product.template/16776/image_128/%5B9.0920.10020%5D%20KAESER%20Sigma%20Fluid%20MOL%2C%203%20ltr.?unique=17930d5)
|
Original KAESER compressor oil for screw compressors |
45.82 € | |
