KAESER SK 26-12 SC3 Screw Compressor

KAESER SK 26-12 Screw Compressor – 15 kW at max. 12 bar

The KAESER SK 26-12 is an oil-lubricated screw compressor with a drive power of 15 kW and a maximum operating pressure of 12 bar. At rated pressure, it delivers a flow rate of 2.07 m³/min—designed for medium-sized and larger industrial facilities. The SK series covers the medium-sized industrial sector and is also available as a high-pressure variant with up to 15 bar.

The compressor block uses the proven KAESER SIGMA PROFILE rotor pair to deliver optimized air flow with low energy consumption. The SIGMA CONTROL 3 M control system, featuring a 5-inch color touchscreen display and an integrated ANYbus interface, monitors all operating parameters and enables integration into higher-level control systems. The IE3 drive motor operates at 400 V / 3-phase / 50 Hz. The sound pressure level is 67 dB(A). The dimensions are 750 × 905 × 1245 mm (W × D × H).

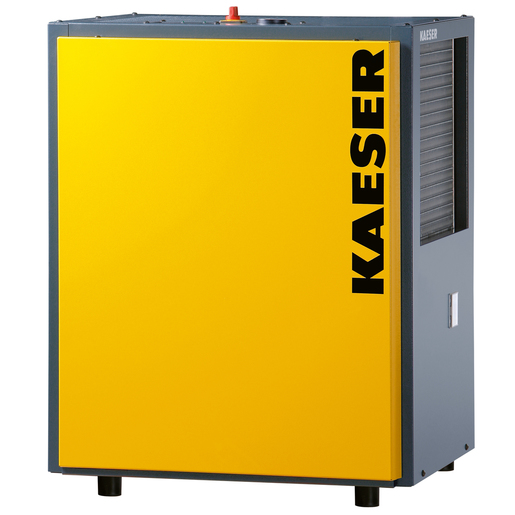

If an integrated refrigerated dryer is also required, KAESER offers the corresponding T model from the “With Refrigerated Dryer” series, featuring a pressure dew point of +3 °C.
