RIEGLER Ball valve, High pressure design, Lightweight series, M12x1.5
Type number: 392.01
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Steel ball valve, for industrial systems, max. 500 bar - Type 392.01
The RIEGLER ball valve, high-pressure version, light series, steel, M12x1.5 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of steel. Designed for a maximum operating pressure of 500 bar. The operating temperature is between -10 °C and 100 °C. Connection thread M12x1.5 - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Steel |
| Max. operating pressure | 500 bar |
| Ball | Hard chrome-plated steel |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 100 °C |
| Shift shaft | Steel |
| Switching ball seal | POM |
| Shift shaft seal | NBR |
| Thread | M12x1.5 |
| DN | 4 |
| A | 76 mm |
| B | 55 mm |
| L | 67 mm |
| for pipe outer Ø | 6L mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103499] RIEGLER Ball valve, High pressure design, Lightweight series, M14x1.5](/web/image/product.template/171461/image_128/%5B103499%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Lightweight%20series%2C%20M14x1.5?unique=e4d2835)
|
Type number: 392.02 |
24.99 € | |
![[103500] RIEGLER Ball valve, High pressure design, Lightweight series, M16x1.5](/web/image/product.template/171462/image_128/%5B103500%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Lightweight%20series%2C%20M16x1.5?unique=86fdd91)
|
Type number: 392.03 |
27.27 € | |
![[103501] RIEGLER Ball valve, High pressure design, Lightweight series, M18x1.5](/web/image/product.template/171463/image_128/%5B103501%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Lightweight%20series%2C%20M18x1.5?unique=c71367e)
|
Type number: 392.04 |
28.74 € | |
![[103502] RIEGLER Ball valve, High pressure design, Lightweight series, M22x1.5](/web/image/product.template/171464/image_128/%5B103502%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Lightweight%20series%2C%20M22x1.5?unique=acd1654)
|
Type number: 392.05 |
31.62 € | |

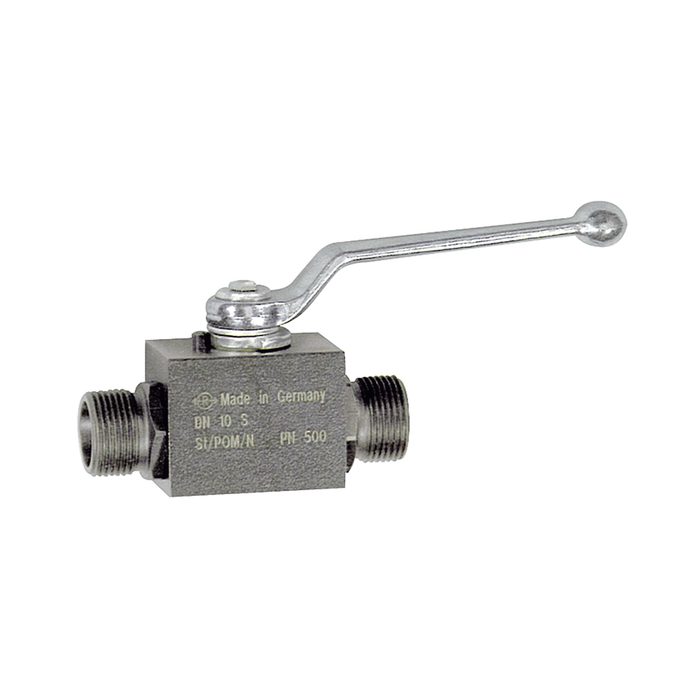

![[103503] RIEGLER Ball valve, High pressure design, Lightweight series, M26x1.5](/web/image/product.template/171465/image_128/%5B103503%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Lightweight%20series%2C%20M26x1.5?unique=0cec6fc)
|
Type number: 392.06 |
51.31 € | |
![[103504] RIEGLER Ball valve high pressure design, Lightweight series, M30x2](/web/image/product.template/171466/image_128/%5B103504%5D%20RIEGLER%20Ball%20valve%20high%20pressure%20design%2C%20Lightweight%20series%2C%20M30x2?unique=e3953b1)
|
Type number: 392.07 |
61.82 € | |
![[103505] RIEGLER Ball valve high pressure design, Lightweight series, M36x2](/web/image/product.template/171467/image_128/%5B103505%5D%20RIEGLER%20Ball%20valve%20high%20pressure%20design%2C%20Lightweight%20series%2C%20M36x2?unique=ff52194)
|
Type number: 392.08 |
77.02 € | |
