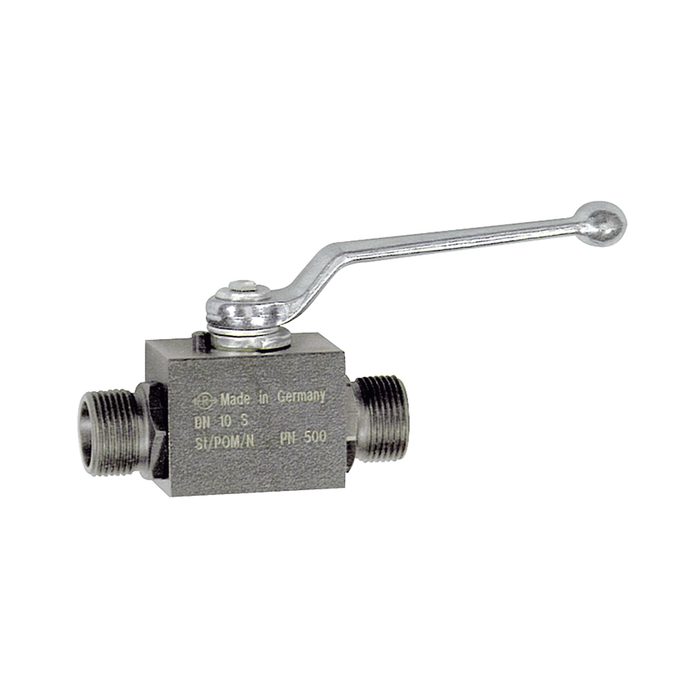

RIEGLER Ball valve, High pressure design, Lightweight series, M26x1.5
Type number: 392.06
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Ball valve, High pressure design, Lightweight series, Steel, Operating temp. -10 °C to 100 °C, M26x1.5, DN 16, PN max. 420 bar
| Housing | Steel |
| Max. operating pressure | 420 bar |
| Ball | Hard chrome-plated steel |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 100 °C |
| Shift shaft | Steel |
| Switching ball seal | POM |
| Shift shaft seal | NBR |
| Thread | M26x1.5 |
| DN | 16 |
| A | 166 mm |
| B | 105 mm |
| L | 82 mm |
| for pipe outer Ø | 18L mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103498] RIEGLER Ball valve, High pressure design, Lightweight series, M12x1.5](/web/image/product.template/171460/image_128/%5B103498%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Lightweight%20series%2C%20M12x1.5?unique=7c5421b)
|
Type number: 392.01 |
26.82 € | |
![[103499] RIEGLER Ball valve, High pressure design, Lightweight series, M14x1.5](/web/image/product.template/171461/image_128/%5B103499%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Lightweight%20series%2C%20M14x1.5?unique=558169a)
|
Type number: 392.02 |
25.34 € | |
![[103500] RIEGLER Ball valve, High pressure design, Lightweight series, M16x1.5](/web/image/product.template/171462/image_128/%5B103500%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Lightweight%20series%2C%20M16x1.5?unique=3ba7190)
|
Type number: 392.03 |
27.27 € | |
![[103501] RIEGLER Ball valve, High pressure design, Lightweight series, M18x1.5](/web/image/product.template/171463/image_128/%5B103501%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Lightweight%20series%2C%20M18x1.5?unique=378e879)
|
Type number: 392.04 |
28.74 € | |
![[103502] RIEGLER Ball valve, High pressure design, Lightweight series, M22x1.5](/web/image/product.template/171464/image_128/%5B103502%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Lightweight%20series%2C%20M22x1.5?unique=4d67bf3)
|
Type number: 392.05 |
32.06 € | |
![[103504] RIEGLER Ball valve high pressure design, Lightweight series, M30x2](/web/image/product.template/171466/image_128/%5B103504%5D%20RIEGLER%20Ball%20valve%20high%20pressure%20design%2C%20Lightweight%20series%2C%20M30x2?unique=74f278d)
|
Type number: 392.07 |
62.67 € | |
![[103505] RIEGLER Ball valve high pressure design, Lightweight series, M36x2](/web/image/product.template/171467/image_128/%5B103505%5D%20RIEGLER%20Ball%20valve%20high%20pressure%20design%2C%20Lightweight%20series%2C%20M36x2?unique=914dba1)
|
Type number: 392.08 |
78.08 € | |
