RIEGLER Ball valve high pressure design, Lightweight series, M30x2
Type number: 392.07
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Steel ball valve, for industrial systems, max. 420 bar - Type 392.07
The RIEGLER ball valve, high-pressure version, light series, steel, M30x2 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of steel. Designed for a maximum operating pressure of 420 bar. The operating temperature is between -10 °C and 100 °C. M30x2 connection thread - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Steel |
| Max. operating pressure | 420 bar |
| Ball | Hard chrome-plated steel |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 100 °C |
| Shift shaft | Steel |
| Switching ball seal | POM |
| Shift shaft seal | NBR |
| Thread | M30x2 |
| DN | 20 |
| A | 187 mm |
| B | 121 mm |
| L | 99 mm |
| for pipe outer Ø | 22L mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103498] RIEGLER Ball valve, High pressure design, Lightweight series, M12x1.5](/web/image/product.template/171460/image_128/%5B103498%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Lightweight%20series%2C%20M12x1.5?unique=48edfde)
|
Type number: 392.01 |
26.45 € | |
![[103499] RIEGLER Ball valve, High pressure design, Lightweight series, M14x1.5](/web/image/product.template/171461/image_128/%5B103499%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Lightweight%20series%2C%20M14x1.5?unique=e4d2835)
|
Type number: 392.02 |
24.99 € | |

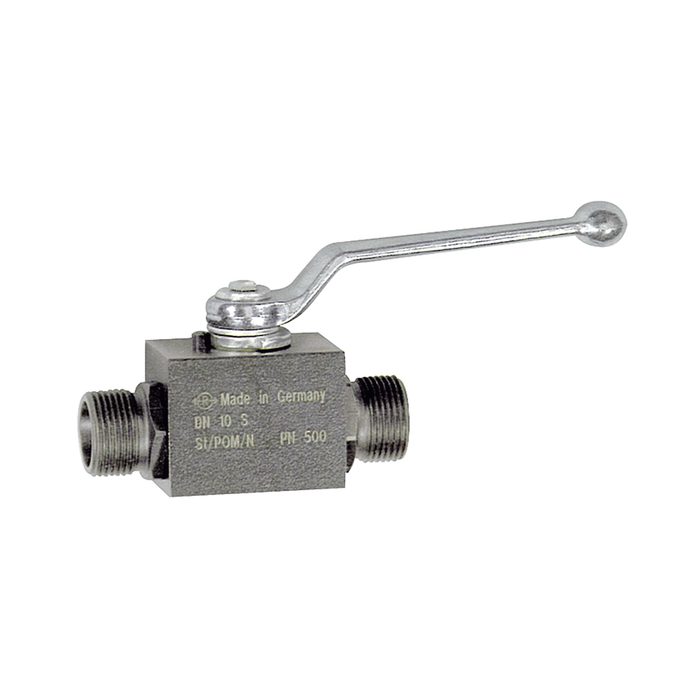

![[103500] RIEGLER Ball valve, High pressure design, Lightweight series, M16x1.5](/web/image/product.template/171462/image_128/%5B103500%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Lightweight%20series%2C%20M16x1.5?unique=86fdd91)
|
