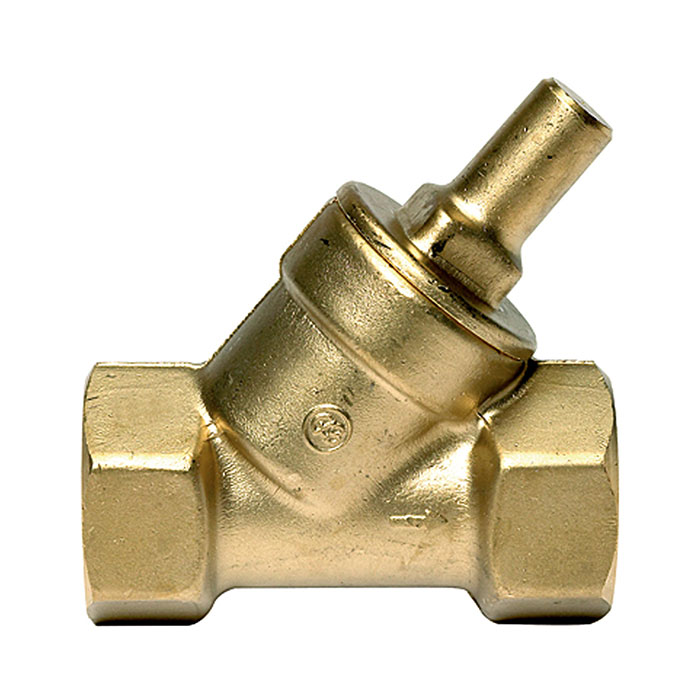

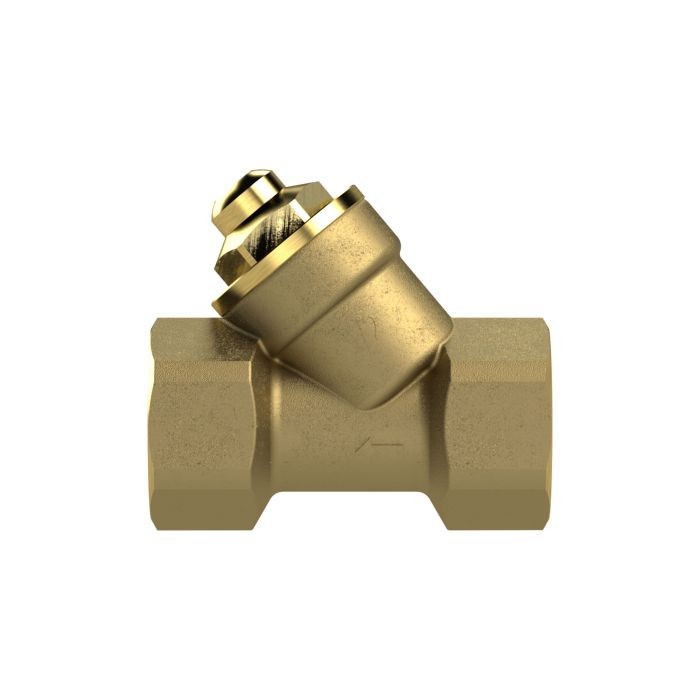

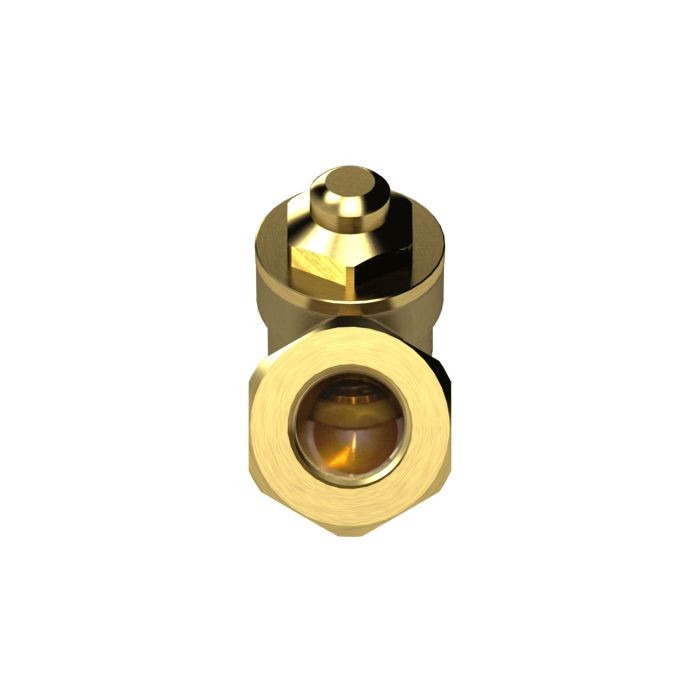

RIEGLER Check valve, Inclined seat design, Brass, Rp 3/8, 0.5 bar
Type number: 220.02
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Check valve, Inclined seat design, Brass, Medium / ambient temp. max. 80 °C, Rp 3/8, PN max. 10 bar, Opening pressure 0.5 bar
| Medium | Water |
| Housing | Brass |
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Medium temperature max. | 80 °C |
| Ambient temperature max. | 80 °C |
| Opening pressure min. | 0.5 bar |
| Operating temperature min. | -30 °C |
| Operating temperature max. | 90 °C |
| Thread | Rp 3/8 |
| SW | 27 mm |
| Thread standard | Rp thread to DIN 2999 |

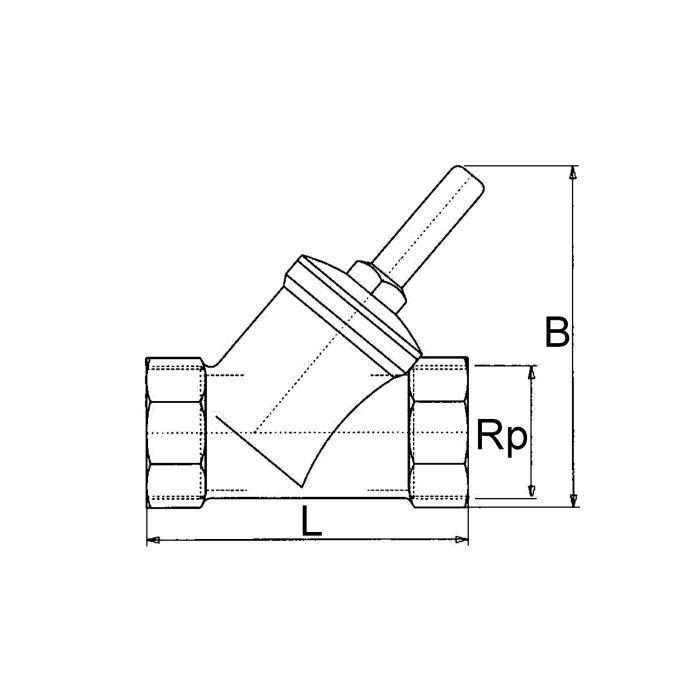

| B | 50 mm |
| L | 55 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103828] RIEGLER Check valve, Inclined seat design, Brass, Rp 1, 0.5 bar](/web/image/product.template/171789/image_128/%5B103828%5D%20RIEGLER%20Check%20valve%2C%20Inclined%20seat%20design%2C%20Brass%2C%20Rp%201%2C%200.5%20bar?unique=fd2fc7a)
|
Type number: 220.05 |
32.24 € | |
![[103830] RIEGLER Check valve, Inclined seat design, Brass, Rp 1 1/2, 0.5 bar](/web/image/product.template/171791/image_128/%5B103830%5D%20RIEGLER%20Check%20valve%2C%20Inclined%20seat%20design%2C%20Brass%2C%20Rp%201%201-2%2C%200.5%20bar?unique=579d4ca)
|
Type number: 220.07 |
67.81 € | |
![[103829] RIEGLER Check valve, Inclined seat design, Brass, Rp 1 1/4, 0.5 bar](/web/image/product.template/171790/image_128/%5B103829%5D%20RIEGLER%20Check%20valve%2C%20Inclined%20seat%20design%2C%20Brass%2C%20Rp%201%201-4%2C%200.5%20bar?unique=505aede)
|
Type number: 220.06 |
48.05 € | |
![[103826] RIEGLER Check valve, Inclined seat design, Brass, Rp 1/2, 0.5 bar](/web/image/product.template/171787/image_128/%5B103826%5D%20RIEGLER%20Check%20valve%2C%20Inclined%20seat%20design%2C%20Brass%2C%20Rp%201-2%2C%200.5%20bar?unique=a144064)
|
Type number: 220.03 |
22.63 € | |

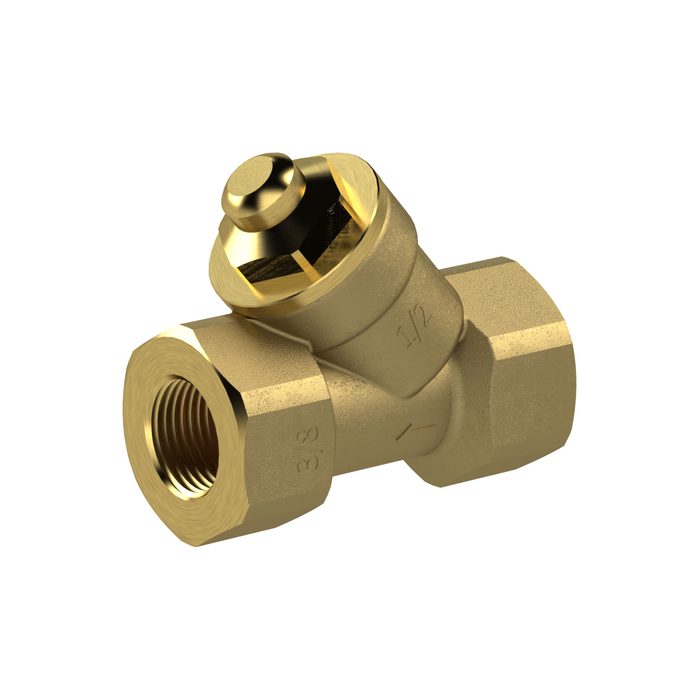

![[103831] RIEGLER Check valve, Inclined seat design, Brass, Rp 2, 0.5 bar](/web/image/product.template/171792/image_128/%5B103831%5D%20RIEGLER%20Check%20valve%2C%20Inclined%20seat%20design%2C%20Brass%2C%20Rp%202%2C%200.5%20bar?unique=f84ef3e)
|
