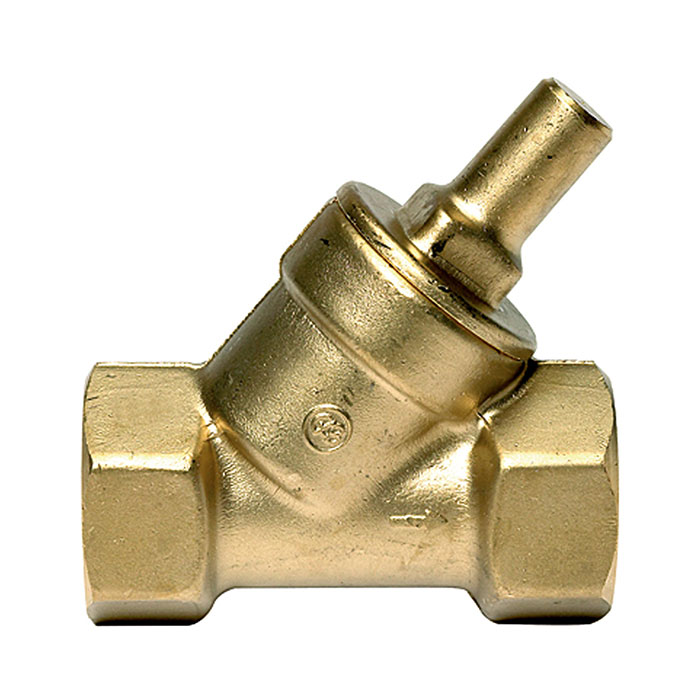

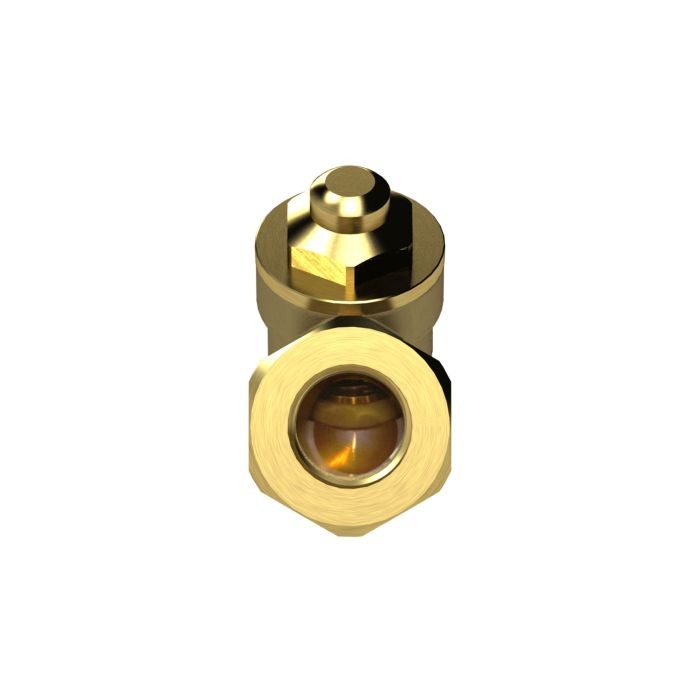

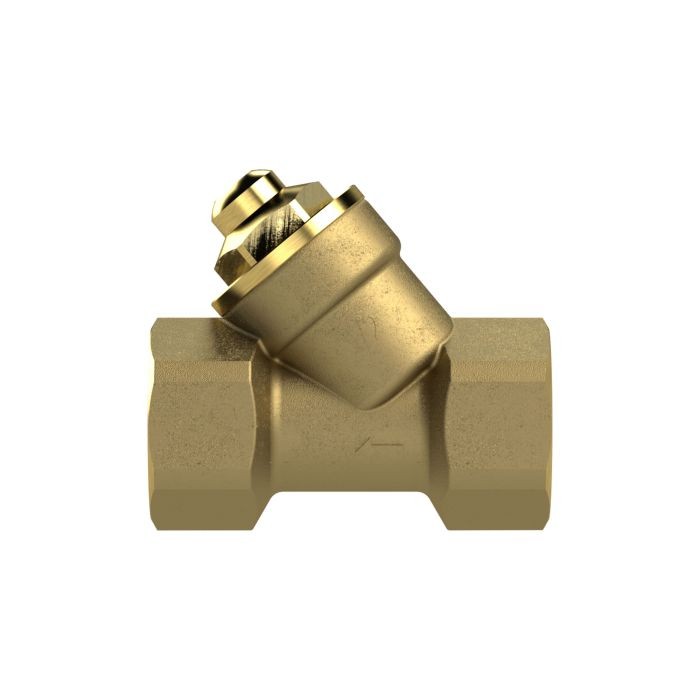

RIEGLER Check valve, Inclined seat design, Brass, Rp 2, 0.5 bar
Type number: 220.08
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Brass non-return valve, for industrial systems, max. 10 bar - Type 220.08
The RIEGLER non-return valve, angle seat design, MS, Rp 2, 0.5 bar regulates or blocks the flow of media in industrial pipelines. The housing is made of brass with NBR seals. Designed for a maximum operating pressure of 10 bar. The operating temperature is between -30 °C and 90 °C. Connection thread Rp 2 (Rp thread to DIN 2999) - suitable for common industrial standards. Suitable for water. Reliable media control.
Field of application
Typical areas of application: Compressed air, gases and liquids.
| Medium | Water |
| Housing | Brass |
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Medium temperature max. | 80 °C |
| Ambient temperature max. | 80 °C |
| Opening pressure min. | 0.5 bar |
| Operating temperature min. | -30 °C |
| Operating temperature max. | 90 °C |

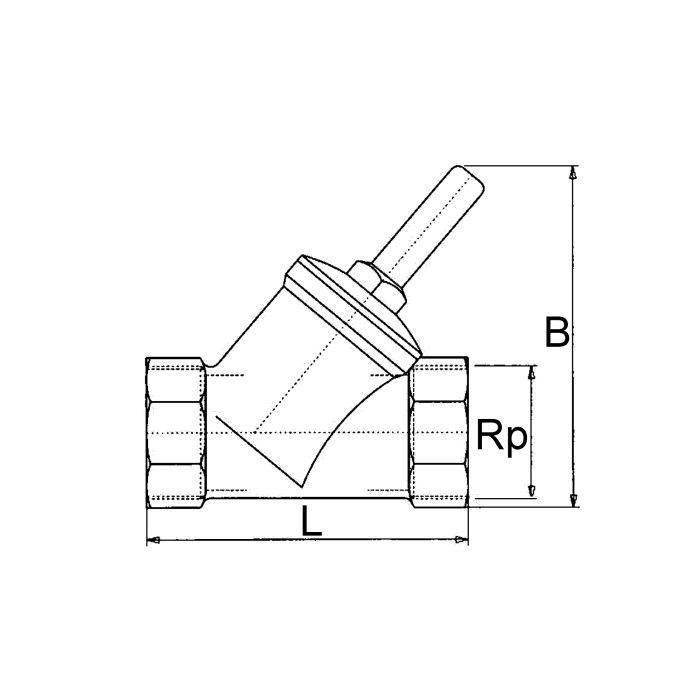

| Thread | Rp 2 |
| SW | 68 mm |
| Thread standard | Rp thread to DIN 2999 |
| B | 135 mm |
| L | 130 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103828] RIEGLER Check valve, Inclined seat design, Brass, Rp 1, 0.5 bar](/web/image/product.template/171789/image_128/%5B103828%5D%20RIEGLER%20Check%20valve%2C%20Inclined%20seat%20design%2C%20Brass%2C%20Rp%201%2C%200.5%20bar?unique=df8469f)
|
Type number: 220.05 |
32.24 € | |
![[103830] RIEGLER Check valve, Inclined seat design, Brass, Rp 1 1/2, 0.5 bar](/web/image/product.template/171791/image_128/%5B103830%5D%20RIEGLER%20Check%20valve%2C%20Inclined%20seat%20design%2C%20Brass%2C%20Rp%201%201-2%2C%200.5%20bar?unique=5aa882a)
|
Type number: 220.07 |
66.88 € | |
![[103829] RIEGLER Check valve, Inclined seat design, Brass, Rp 1 1/4, 0.5 bar](/web/image/product.template/171790/image_128/%5B103829%5D%20RIEGLER%20Check%20valve%2C%20Inclined%20seat%20design%2C%20Brass%2C%20Rp%201%201-4%2C%200.5%20bar?unique=a3ae663)
|
Type number: 220.06 |
47.40 € | |

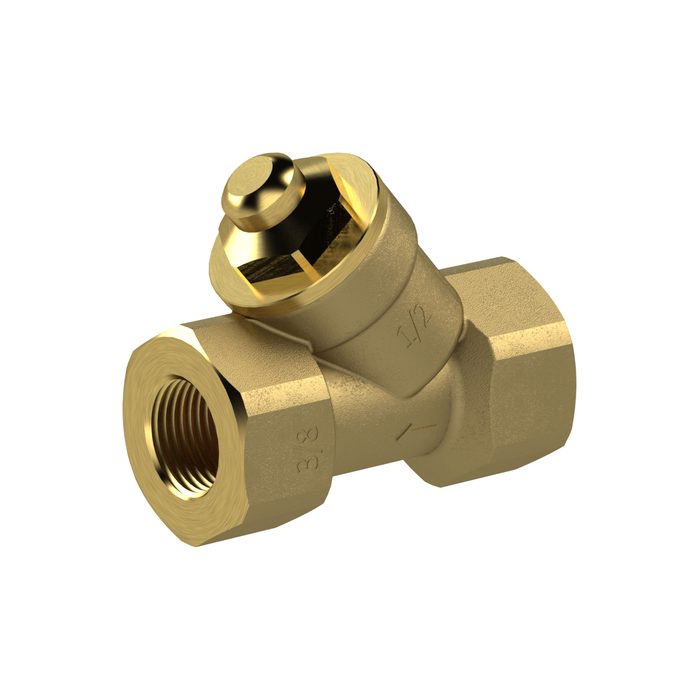

![[103826] RIEGLER Check valve, Inclined seat design, Brass, Rp 1/2, 0.5 bar](/web/image/product.template/171787/image_128/%5B103826%5D%20RIEGLER%20Check%20valve%2C%20Inclined%20seat%20design%2C%20Brass%2C%20Rp%201-2%2C%200.5%20bar?unique=90f970f)
|
